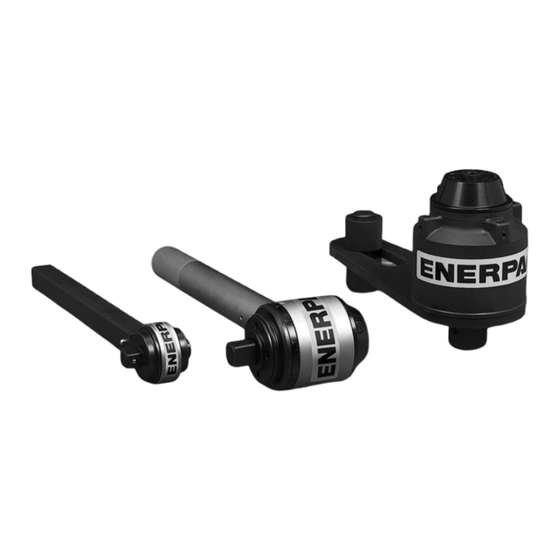

Enerpac E Serie Manuel D'instructions

L2677 Rev. C 05/19
Index:
English. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5
Français . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-11
Deutsch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-17
Italiano . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18-23
Español . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24-29
Nederlands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30-35
Português . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36-41
Suomi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42-47
Norsk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48-53
Svenska. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54-59
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60-63
中文
日本語 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64-69
Polski . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70-75
Repair Parts Sheets for this product are available from the
Enerpac web site at www.enerpac.com, or from your nearest
Authorized Enerpac Service Center or Enerpac Sales office.
1.0 IMPORTANT RECEIVING INSTRUCTIONS
Visually inspect all components for shipping damage. Shipping
damage is not covered by warranty. If shipping damage is found,
notify carrier at once. The carrier is responsible for all repair and
replacement costs resulting from damage in shipment.
SAFETY FIRST
2.0 SAFETY ISSUES
Read all instructions, warnings and cautions
carefully. Follow all safety precautions to avoid
personal injury or property damage during system
operation. Enerpac cannot be responsible for damage or injury
resulting from unsafe product use, lack of maintenance or
incorrect product and/or system operation. Contact Enerpac
when in doubt as to the safety precautions and operations. If you
have never been trained on high-pressure hydraulic safety,
consult your distribution or service center for a free Enerpac
Hydraulic safety course.
Failure to comply with the following cautions and warnings could
cause equipment damage and personal injury.
A CAUTION is used to indicate correct operating or maintenance
procedures and practices to prevent damage to, or destruction of
equipment or other property.
A WARNING indicates a potential danger that requires correct
procedures or practices to avoid personal injury.
A DANGER is only used when your action or lack of action may
cause serious injury or even death.
WARNING: Maintain firm hand control of torque
wrench or input handle when releasing multiplier,
since recoil (wind-up) will be experienced.
WARNING: Prevent accidental torque release; set the
neutral positioning set screw (Fig. 3, Item 2) flush with
the top of the housing whenever the torque multiplier
is operated MANUALLY. The selector pawl (Fig. 3, Item 3) must
also operate freely in the CW and CCW positions. Personal injury
could result if not set properly.
Instruction Sheet
E-Series Torque Multipliers
WARNING: Do not hold torque multiplier reaction bar or
reaction plate (Fig. 1, Item 1) while applying torque.
Normal multiplier deflection could create pinch a point.
WARNING: Prior to EACH use, verify accuracy of
torque wrench. Torque multiplier output is many times
greater. An inaccurate torque wrench can dmanage
either the torque mulitplier or your work.
WARNING: Prior to EACH use, check reaction plate/bar
holding screws to insure they are tight (Fig. 1, Item 2).
WARNING: Prior to EACH use, inspect output square
drive (Fig. 1, Item 4) for visible sign of fatigue or
fracture. Replace if necessary.
WARNING: Failure of the output square drive, could
result in an immediate torque release; the torque
multiplier could fall from the fastener, and result in
personal injury.
WARNING: When using an output drive extension
(Reaction Plate models only), a double-ended reaction
plate is required. Failure to use a double-ended reaction
plate could cause the torque multiplier to be forced sideways on
the application resulting in multiplier and/or socket breakage.
WARNING: Do not use output drive extensions on
Reaction Bar models. Personal injury could result.
WARNING: Select an anchor point sufficient to
withstand torque reaction forces. Reaction torque
equals OUTPUT torque.
WARNING: Wear proper personal protective gear when
operating hydraulic equipment.
WARNING: Stay clear of loads supported by hydraulics. A
cylinder, when used as a load lifting device, should never
be used as a load holding device. After the load has been
raised or lowered, it must always be blocked mechanically.
WARNING: USE ONLY RIGID PIECES TO HOLD
LOADS. Carefully select steel or wood blocks that are
capable of supporting the load. Never use a hydraulic
cylinder as a shim or spacer in any lifting or pressing application.
WARNING: Immediately replace worn or damaged parts by
genuine ENERPAC parts. Standard grade parts will break
causing personal injury and property damage. ENERPAC
parts are designed to fit properly and withstand high loads.
