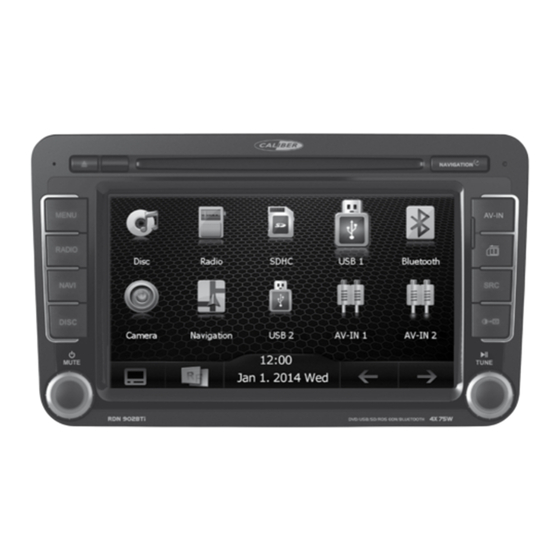

Caliber RDN 902BTi Manuel

Masquer les pouces

Publicité

Liens rapides

Télécharger ce manuel
All manuals and user guides at all-guides.com
RDN 902BTi
Manual
GB • F • D • I • E • P • SW • PL • GR • CZ/SK • NL
Including:
Optional wiring diagram:
AUX input
Note: video playback from Apple devices with a lightning connector is not supported
For audio connectivity you can use USB sync cable that came with your Apple device.
For video or photo playback you'll need to use the included 30 pin Dock connector to USB and 3,5mm Jack connector combi plug.
(Which can be connected to the input on the rear of the unit,as shown in the illustration below)

Publicité

loading

Manuels Connexes pour Caliber RDN 902BTi

Sommaire des Matières pour Caliber RDN 902BTi

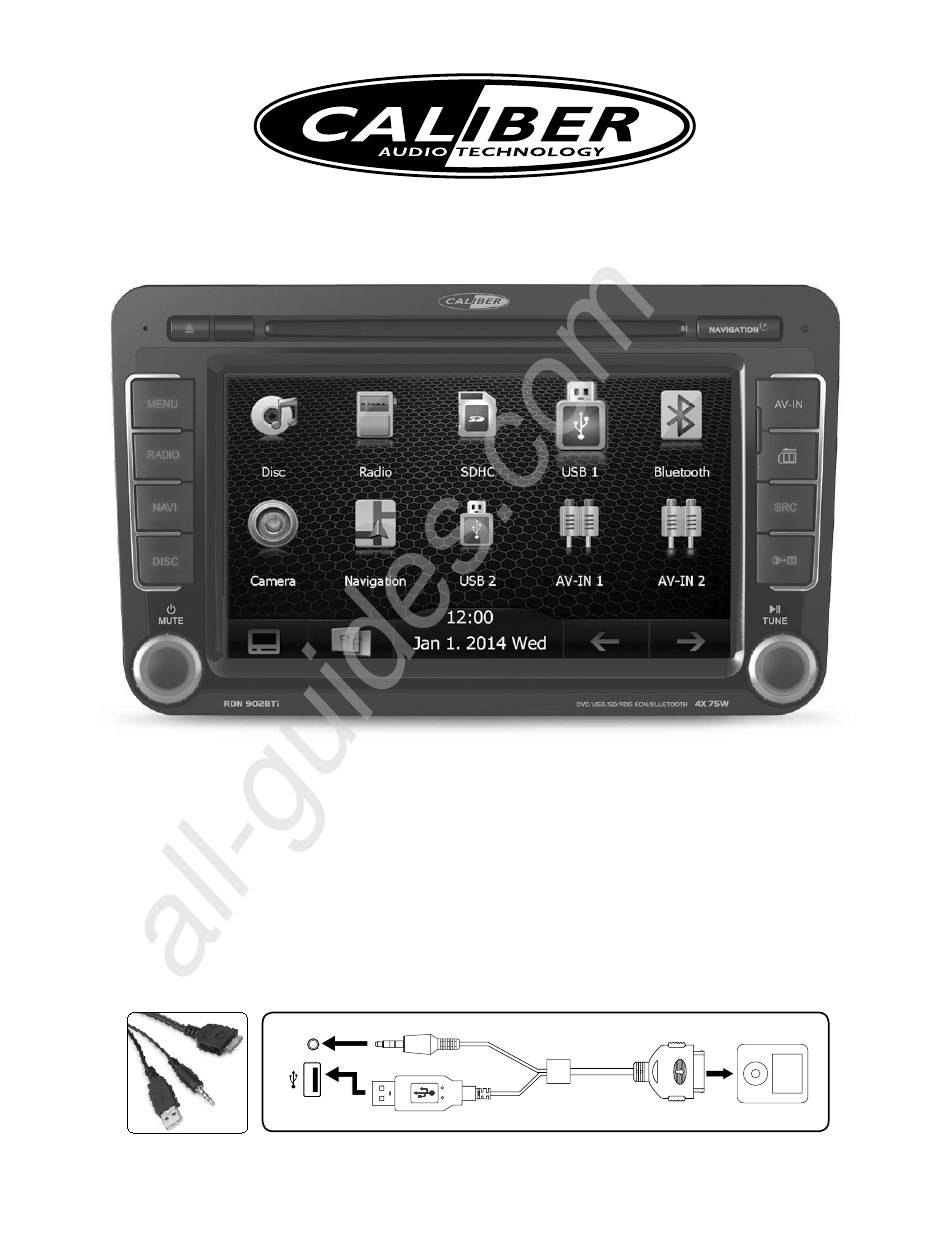

  • Page 1 All manuals and user guides at all-guides.com RDN 902BTi Manual GB • F • D • I • E • P • SW • PL • GR • CZ/SK • NL Including: Optional wiring diagram: AUX input Note: video playback from Apple devices with a lightning connector is not supported For audio connectivity you can use USB sync cable that came with your Apple device.
  • Page 2 All manuals and user guides at all-guides.com RDN 902BTi CONNECTION DIAGRAM Appendix...
  • Page 3 All manuals and user guides at all-guides.com RDN 902BTi QuICKSTART GuIDE GB • F • D • I • E • P • SW • PL • GR • CZ/SK • NL SPECIFICATIoNS General Supported formats: Reference Supply Voltage 12V(DC)
  • Page 4 All manuals and user guides at all-guides.com RDN 902BTi BEFORE uSING Before using Front Panel NAVIGATION Notice: The graphic in this manual is for reference only, and may be different from that in real unit. Reference to real unit is suggested.
  • Page 5 All manuals and user guides at all-guides.com RDN 902BTi BEFORE uSING Before using Remote Control 1. Return to the home menu. 2. Eject the disc 3. Select DVD dialogue language Show music catalog 4. Display information 5. Zoom 6. Select radio band 7.
  • Page 6 All manuals and user guides at all-guides.com RDN 902BTi BASIC OPERATIONS Basic operations Power On/O Turn on: Press any button except on the front panel. Or press [POWER] key on the remote control. Turn o : When on, press and hold [ MUTE / ] knob on the panel.
  • Page 7 All manuals and user guides at all-guides.com RDN 902BTi RADIO MODE Radio mode Select radio as playing source Press [RADIO] button on the front panel or touch [Radio] on the SOURCE menu. Select one radio band Press the [RADIO] button on the front panel or touch the [...
  • Page 8 All manuals and user guides at all-guides.com RDN 902BTi RADIO MODE Radio mode Local Seeking Touch the [LOC] icon on the top bar of the screen to choose the Radio Local on or o . EQ Selection Touch the [ ] icon on the top right of the screen to enter the Equalizer menu.
  • Page 9 All manuals and user guides at all-guides.com RDN 902BTi PLAy PLAY Load Disc You can play video, audio or images stored on the following discs: • DVD Video, DVD-R, DVD+R, DVD-RW, DVD+RW • VCD • Audio CD, CD-R, CD-RW Note: Ensure that the disc contains playable content.
  • Page 10 All manuals and user guides at all-guides.com RDN 902BTi PLAy PLAY Play/Pause 1. Once a disc, USB or SD/MMC card is inserted, play starts automatically. For DVD, if a menu appears, press [ ] to start play. 2. To pause, touch [...
  • Page 11 All manuals and user guides at all-guides.com RDN 902BTi PLAy PLAY 1. Touch anywhere except the upper left corner to display menu on the screen, if necessary. 2. Touch [ ] to select: [ Repeat single ]: Play the current chapter repeatedly.
  • Page 12 All manuals and user guides at all-guides.com RDN 902BTi PLAy PLAY Rotate Pictures 1. When you view pictures,touch bottom half of the screen to display menu on the screen, if necessary. 2. Touch [ ] repeatedly to rotate the picture.
  • Page 13 All manuals and user guides at all-guides.com RDN 902BTi BLuETOOTh Bluetooth mode You can make or receive phone calls with Bluetooth-enabled phones through the unit. You can also listen to music from a Bluetooth-enabled device. Pair the Bluetooth-enabled devices To connect your Bluetooth device to the unit, you need to pair the device to the unit.
  • Page 14 All manuals and user guides at all-guides.com RDN 902BTi BLuETOOTh MODE Bluetooth mode Receive call By default, all incoming calls are received automaticaly. 1. If there is incoming call, [Incoming call...] flashes on the screen. Speak into the Bluetooth microphone.
  • Page 15 All manuals and user guides at all-guides.com RDN 902BTi IPOD iPod Select iPod as playing source Turn on the unit’s power, and connect an iPod to the unit via a iPod cable, the unit will load the iPod automatically. Play On the iPod main menu, operate the iPod via touch panel.
  • Page 16 All manuals and user guides at all-guides.com RDN 902BTi ADjuST SOuND Adjust sound Adjust volume To adjust volume, rotate the volume knob on the bottom left of the front panel. Mute When playback, press the volume knob on the panel, the sound is cut o .
  • Page 17 All manuals and user guides at all-guides.com RDN 902BTi SETuP SETUP Display System 1. Touch the upper left corner to display main menu. 2. Then select [Settings]. The settings menu is displayed. If [Settings] is not on the current menu, touch on the right bottom of the screen.
  • Page 18 All manuals and user guides at all-guides.com RDN 902BTi SETuP SETUP Adjust time settings Please refer to <Basic Operations>. Adjust sound settings 1. Touch [Sound]. 2. Touch an option repeatedly to select: Sound settings Options Description Turn on the subwoofer.
  • Page 19 All manuals and user guides at all-guides.com RDN 902BTi SETuP SETUP Adjust DVD rating 1. Touch [DVD]. 2. Touch an option to select: DVD rating Options Description Set password Set password to restrict the play of discs. The factory password is 4321.
  • Page 20 All manuals and user guides at all-guides.com RDN 902BTi OThER MODES Other modes Listen to other devices You can connect an external audio/video device to the unit. 1. Connect the car audio to the device with the supplied AV cable.
  • Page 21 All manuals and user guides at all-guides.com RDN 902BTi OThER MODES Other modes User-Defined Wallpaper 1. Entry Select Setting mode on the Source menu, touch [wallpaper] in the General setting, then touch the downwards button of the listed submenu until you find [user defined], touch it to enter user- defined wallpaper management.
  • Page 22 All manuals and user guides at all-guides.com RDN 902BTi DEvICE CONNECTION Device connections Parking Brake Cable Connections Reverse Driving Cable Connections...
  • Page 23 All manuals and user guides at all-guides.com RDN 902BTi DEvICE CONNECTON Device connections Installation Guide Installation and uninstall 1. If relevant, remove any other audio system from the car. 2. Perform the required electrical connections: - If necessary, connect the hand brake wire to your hand brake contact in order to activate the Notes of installation video display when playing a DVD (when the car is parked).
  • Page 24 All manuals and user guides at all-guides.com RDN 902BTi TROuBLEShOOTING Troubleshooting Warning Never remove the casing of this apparatus. To keep the warranty valid, never try to repair the system yourself. If you encounter problems when using this apparatus, check the following points before requesting service.
  • Page 25 All manuals and user guides at all-guides.com RDN 902BTi TROuBLEShOOTING Troubleshooting Fuse is broken ∙ The Fuse type is incorrect. Replace it with a 15A fuse. ∙ Speaker wire or power wire is grounded. Check the connections. About Bluetooth device Music playback is unavailable on the system even after successful Bluetooth connection.
  • Page 26 • This software is designed for use exclusively in this specific system. It cannot and may not be Maintenance. used in conjunction with other hardware. If you have problems, do not attempt to repair the unit yourself. Return it to your Caliber dealer or the nearest Caliber Service Station for servicing. Never attempt the following.
  • Page 27 All manuals and user guides at all-guides.com Inserting discs. DISCS PLAyLE oN THIS UNIT Your player accepts only one disc at a time for playback. Do not attempt to load more than one disc. Make sure the label side is facing up when you insert the disc. “Disc error” will be displayed on your Playable discs player if you insert a disc incorrectly.
  • Page 28 All manuals and user guides at all-guides.com The graphic in this manual is for reference only, and may be different from that in real RDN 902BTi GuIDE DE MISE EN MARChE unit. Reference to real unit is suggested. 1. [ ] Key: Eject disc 1.
  • Page 29 à l’aide de l’appareil. ® Assurez-vous que le contenu du disque est lisible. 3. Sélectionnez l’ID du périphérique Bluetooth appelé « caliber » dans la liste d’appariement. ® 4. Saisissez le mot de passe par défaut « 0000 ». Éjection du disque Si l’appariement est effectué, le journal des appels téléphoniques s’affiche...
  • Page 30 Si certains points du manuel ne vous paraissent pas clairs ou en cas de doutes sur le fonctionne- produit. Retournez celui-ci à votre revendeur agréé Caliber ou au Centre de services Caliber le ment du système de navigation, veuillez contacter un revendeur Caliber local agréé avant d’utiliser plus proche pour réparation.
  • Page 31 All manuals and user guides at all-guides.com Insertion de disques. DISQUES PRIS EN CHARGE PAR CET APPAREIL Votre lecteur prend en charge un seul disque à la fois pour lecture. Ne tentez pas de charger plus d’un disque. Lorsque vous insérez le disque, assurez-vous que la face portant l’étiquette soit tournée Disques jouables vers le haut.
  • Page 32 The graphic in this manual is for reference only, and may be different from that in real All manuals and user guides at all-guides.com unit. Reference to real unit is suggested. RDN 902BTi SChNELLSTART ANLEITuNG 1. [ ] Key: Eject disc 2.
  • Page 33 Sie können Video-, Audio- und Bildmaterial wiedergeben, das auf einer der folgenden Discs gespeichert wurde: Zum Verbinden Ihres Bluetooth ® -Geräts mit dem RDN 902BTi müssen Sie die Geräte miteinander kop- • DVD Video, DVD-R, DVD+R, DVD-RW, DVD+RW peln. Die Kopplung muss nur einmal durchgeführt werden. Sie können bis zu fünf Geräte koppeln.
  • Page 34 Bedienfeld oder dem beweglichen Monitor, wenn diese sich bewegen. Sollte es beim Lesen der Anleitung Punkte geben, bei denen Sie sich bezüglich der Bedienung nicht sicher sind, wenden Sie sich bitte an eine autorisierte Caliber-Vertretung, bevor Sie das Navigations- HINwEIS system in Gebrauch nehmen.
  • Page 35 All manuals and user guides at all-guides.com Einlegen von Discs. DISCS, DIE AUF DIESEM GERÄT Sie können jeweils nur eine Disc zur Wiedergabe einsetzen. Versuchen Sie nicht, mehr als eine Disc einzulegen. Die Etikettenseite muss nach oben weisen. Bei einer falsch herum eingelegten Disc abgespielt werden können wird „Disc error“...
  • Page 36 Notice: The graphic in this manual is for reference All manuals and user guides at all-guides.com only, and may be different from that in real RDN 902BTi unit. Reference to real unit is suggested. GuIDA RAPIDA 1. [ ] Key: Eject disc Before using 1.
  • Page 37 2. Cercare il dispositivo Bluetooth sull’unità. ® Nota: 3. Selezionare l’ID del dispositivo Bluetooth “caliber” nell’elenco delle associazioni. ® assicurarsi che il disco contenga contenuti riproducibili. 4. Immettere la password predefinita “0000”. Se l’associazione è eseguita correttamente, è visualizzato il record della chiamata.
  • Page 38 • Leggere attentamente il presente manuale prima di usare il disco e i componenti del sistema. Con- AVVISo tiene istruzioni su come utilizzare il prodotto in modo sicuro ed efficace. Caliber non è responsabile di Pulizia del prodotto. eventuali problemi causati dal mancato rispetto delle istruzioni contenute nel presente manuale.
  • Page 39 All manuals and user guides at all-guides.com Inserimento dei dischi. DISCHI RIPRoDUCIBILI SU QUESTA UNITÀ Il lettore supporta la riproduzione di un solo disco alla volta. Non tentare di inserire più dischi contem- poraneamente. Assicurarsi che il lato con l’etichetta sia rivolto verso l’alto durante l’inserimento del Dischi riproducibili disco.
  • Page 40 The graphic in this manual is for reference only, and may be different from that in real All manuals and user guides at all-guides.com unit. Reference to real unit is suggested. RDN 902BTi GuÍA DE INICIO RÁPIDO DEL 1. [ ] Key: Eject disc 2.
  • Page 41 ® Nota: 3. Seleccione el ID del dispositivo Bluetooth llamado “caliber” en la lista de emparejamiento. ® Asegúrese de que el disco contenga contenido reproducible. 4. Ingrese la contraseña predeterminada “0000”. Si el emparejamiento es correcto, se muestra el registro de llamadas telefónicas.
  • Page 42 Caliber autorizado o al centro de servicio de Caliber más cercano para que lo reparen. Si tiene dudas sobre cualquier cosa que aparezca en el manual de funcionamiento, le rogamos (Solo válido para pantallas móviles) Mantenga los dedos alejados del panel frontal motorizado...
  • Page 43 All manuals and user guides at all-guides.com Cómo insertar discos. DISCoS REPRoDUCIBLES EN ESTA UNIDAD Su reproductor solo reproduce discos de uno en uno. No intente meter más de un disco. Asegúrese de que el lado de la etiqueta está mirando hacia arriba cuando inserte el disco. Si inserta un disco Discos reproducibles de manera incorrecta, aparecerá...
  • Page 44 The graphic in this manual is for reference All manuals and user guides at all-guides.com only, and may be different from that in real unit. Reference to real unit is suggested. RDN 902BTi GuIA DE INÍCIO RÁPIDO 1. [ ] Key: Eject disc Before using 1.
  • Page 45 ® Nota: 3. Selecione o ID Bluetooth dispositivo chamado de “caliber” na lista de emparelhamento. ® Certifique-se de que o disco contém conteúdo reproduzível. 4. Digite a senha padrão “0000”. Se o emparelhamento for bem sucedido, é exibido o registro de chamadas do telefone.
  • Page 46 Certifique-se de que a temperatura no interior do veículo é entre 45 ° C (113 ° F) e 0 ° C (32 ° F) contêm instruções sobre como utilizar este produto de forma segura e eficaz. A marca Caliber não antes de ligar o seu aparelho.
  • Page 47 All manuals and user guides at all-guides.com Inserção de discos. TIPo DE DISCoS LIDoS PELo EQUIPAMENTo O mecanismo aceita apenas um disco de cada vez para reprodução. Não tente inserir mais de um disco. Certifique-se de que o rótulo esteja voltado para cima quando você inserir o disco. “Erro de Discos reproduzíveis Disco”...
  • Page 48 The graphic in this manual is for reference only, and may be different from that in real All manuals and user guides at all-guides.com unit. Reference to real unit is suggested. RDN 902BTi SNABBSTARTGuIDE 1. [ ] Key: Eject disc 2.
  • Page 49 All manuals and user guides at all-guides.com SPELA UPP BLUETooTH -LÄGET ® Ladda Skiva Para ihop Bluetooth -aktiverade enheter ® Du kan spela upp video, ljud eller bilder som lagras på följande skivor: För att ansluta din Bluetooth ® -enhet till enheten måste du para ihop enheterna. Parning behövs •...
  • Page 50 • Läs manualen noga innan du använder skivan och systemkomponenterna. De innehåller in- MEDDELANDE struktioner om hur du använder produkten på ett säkert och effektivt sätt. Caliber ansvarar inte för problem som uppstår av underlåtenhet att följa instruktionerna i manualen.
  • Page 51 All manuals and user guides at all-guides.com Inmatning av skivor. SKIVoR SPELBARA PÅ DENNA ENHET Din spelare accepterar enbart en skiva åt gången för uppspelning. Försök inte att sätta i flera skivor. Se till att etikettsidan är vänd uppåt när du sätter i skivan. “Disc error” visas på spelaren om du sätter Spelbara skivor i en skiva på...
  • Page 52 Notice: All manuals and user guides at all-guides.com The graphic in this manual is for reference RDN 902BTi only, and may be different from that in real PRZEWODNIK SZyBKIEGO STARTu unit. Reference to real unit is suggested. Before using 1. Powrót do menu głównego.
  • Page 53 • Audio CD, CD-R, CD-RW 2. Wyszukać urządzenie Bluetooth ® Uwaga: 3. Wybrać ID urządzenia Bluetooth o nazwie „caliber” z listy parowania. ® Upewnić się, że zawartość płyty można odtwarzać. 4. Wprowadzić hasło domyślne „0000”. Jeśli parowanie przebiegnie pomyślnie, wyświetli się zapamiętany zapis.
  • Page 54 Uważnie przeczytać niniejszą instrukcję przed rozpoczęciem korzystania z niniejszej płyty INFoRMACJE oraz komponentów systemu. Zawierają one instrukcje dotyczące korzystania z niniejszego produktu w sposób skuteczny oraz bezpieczny. Firma Caliber nie ponosi odpowiedzialności za Czyszczenie produktu. skutki wynikające z niezastosowania się do wskazówek zawartych w niniejszej instrukcji.
  • Page 55 All manuals and user guides at all-guides.com Wkładanie płyty. PŁYTY ODTWARZANE PRZEZ TO URZĄDZENIE Odtwarzacz przyjmuje tylko jedną płytę do odtwarzania w danym czasie. Nie wkładać więcej niż jednego płyty. Upewnić się, że etykieta skierowana jest ku górze przy wkładaniu płyty. Odtwarzacz Odtwarzane płyty wyświetli „Disc error”...
  • Page 56 Notice: All manuals and user guides at all-guides.com The graphic in this manual is for reference RDN 902BTi only, and may be different from that in real ΟΔΗΓΟΣ ΓΡΗΓΟΡΗΣ ΕΚΚΙΝΗΣΗΣ unit. Reference to real unit is suggested. Before using 1. Επιστροφή στο αρχικό μενού.
  • Page 57 με τη συσκευή. ® Βεβαιωθείτε ότι ο δίσκος περιέχει περιεχόμενο με δυνατότητα αναπαραγωγής 3. Επιλέξτε την συσκευή Bluetooth με το όνομα “caliber” στην λίστα ζεύξης. ® 4. Πληκτρολογήστε τον προεπιλεγμένο κωδικό “0000”. Εξαγωγή του δίσκου Εάν η ζεύξη είναι επιτυχής, θα εμφανιστεί ο κατάλογος κλήσεων του τηλεφώνου.
  • Page 58 Χρησιμοποιήστε ένα μαλακό, στεγνό πανί για τον καθαρισμό του προϊόντος. Για πιο δύσκολους αποτελεσματικό τρόπο. Η Caliber δεν είναι υπεύθυνη για προβλήματα που προκύπτουν από τη μη λεκέδες, βρέξτε το πανί μόνο με νερό. Οποιαδήποτε άλλο προϊόν μπορεί να διαλύσει το χρώμα ή...
  • Page 59 All manuals and user guides at all-guides.com Εισαγωγή δίσκου. ΔΙΣΚΟΙ ΠΟΥ ΑΝΑΠΑΡΑΓΟΝΤΑΙ ΣΕ ΑΥΤΟ ΤΟ ΔΙΣΚΟ Η συσκευή αναπαραγωγής δέχεται μόνο ένα δίσκο για αναπαραγωγή. Μην προσπαθήσετε να τοποθετήσετε περισσότερους από ένα δίσκο. Βεβαιωθείτε ότι η πλευρά με την ετικέτα είναι κοιτάζει Δίσκοι...
  • Page 60 The graphic in this manual is for reference All manuals and user guides at all-guides.com only, and may be different from that in real unit. Reference to real unit is suggested. RDN 902BTi STRUČNÝ NÁVOD K OBSLUZE 1. [ ] Key: Eject disc Before using 2.
  • Page 61 2. Vyhľadajte zariadenie Bluetooth pomocou zariadenia. ® Poznámka: 3. Zvoľte ID Bluetooth zariadenia s názvom „caliber“ v zozname párovania. ® Uistite sa, že disk obsahuje prehrávateľný obsah. 4. Zadajte predvolené heslo „0000“. Ak párovanie prebehne úspešne, zobrazí sa záznam telefonických hovorov.
  • Page 62 Nedodržanie tohto pokynu môže spôsobiť poranenie osôb alebo poškodenie výrobku. Výrobok bezpečnostné opatrenia a dôkladne dodržiava pokyny. odneste na opravu vášmu autorizovanému predajcovi spoločnosti Caliber alebo do servisného strediska spoločnosti Caliber. Ak sa v príručke k prevádzke navigačného systému nachádza čokoľvek, s čim si si nie ste istí, kontaktujte pred použitím navigačného systému autorizovaného miestneho predajcu spoločnosti...
  • Page 63 All manuals and user guides at all-guides.com Vkladanie diskov. DISKY PREHRÁVATEĽNÉ NA TEJTO JEDNOTKE Váš prehrávač akceptuje na prehrávanie len jeden disk. Nepokúšajte sa načítať viac ako jeden disk. Pri vkladaní disku sa uistite, že nálepka smeruje hore. Po nesprávnom vložení disku sa na Prehrávateľné...
  • Page 64 Notice: All manuals and user guides at all-guides.com The graphic in this manual is for reference only, and may be different from that in real RDN 902BTi QuICKSTART GuIDE unit. Reference to real unit is suggested. 1. [ ] Key: Eject disc 1.
  • Page 65 ® Opmerking: 3. Nadat de naam “caliber” in de lijst van uw toestel verschijnt, selecteert u deze Controleer om de media daadwerkelijk afspeelbare inhoud bevat. 4. Vul het standaard wachtwoord “0000” in. Als het koppelen is gelukt, zullen de toestelgegevens op het scherm verschijnen.
  • Page 66 • Lees deze handleiding zorgvuldig voordat u dit systeem gebruikt. Ze bevatten instructies over hoe u dit product op een veilige en efficiënte manier kunt gebruiken. Caliber Europe B.V. is niet Temperatuur. verantwoordelijk voor problemen die ontstaan als gevolg van het niet opvolgen van de instructies Zorg ervoor dat de temperatuur in het voertuig tussen 0°C en +45°C ligt voor u het toestel inschakelt.
  • Page 67 All manuals and user guides at all-guides.com Een disc plaatsen. DISCS DIE oP DIT APPARAAT KUNNEN woRDEN AFGESPEELD U kunt slechts één disc per keer afspelen met dit toestel. Probeer niet meer dan één disc te plaatsen. Zorg ervoor dat de bedrukte zijde naar boven gericht is bij het plaatsen van de disc. “Disc Error” ver- Afspeelbare discs schijnt op het scherm van het toestel wanneer u een disc verkeerd plaatst.
  • Page 68 FI Caliber vakuuttaa täten että RDN902BTi tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehto jen mukainen ja ECE Regulation number 10. Hér með lýsi Caliber yfir ϸvi að RDN902BTi erί samræmi við grunnkröfur og aðrar kröfur, sem gerðar eru í tilskipun 1999/5/EC en ECE Regulation number 10.
