20 Taking Care of the Guide Bar
Use the adjusting screw (1) (on underside of
machine) to vary the oil feed rate as required.
Ematic position (E), medium oil flow rate –
► turn the adjusting screw to "E" (Ematic posi‐
tion).
To increase oil feed –
► turn the adjusting screw clockwise.
Turn reduce oil feed –
► turn the adjusting screw counterclockwise.
NOTICE
The chain must always be wetted with a film of
lubricant.

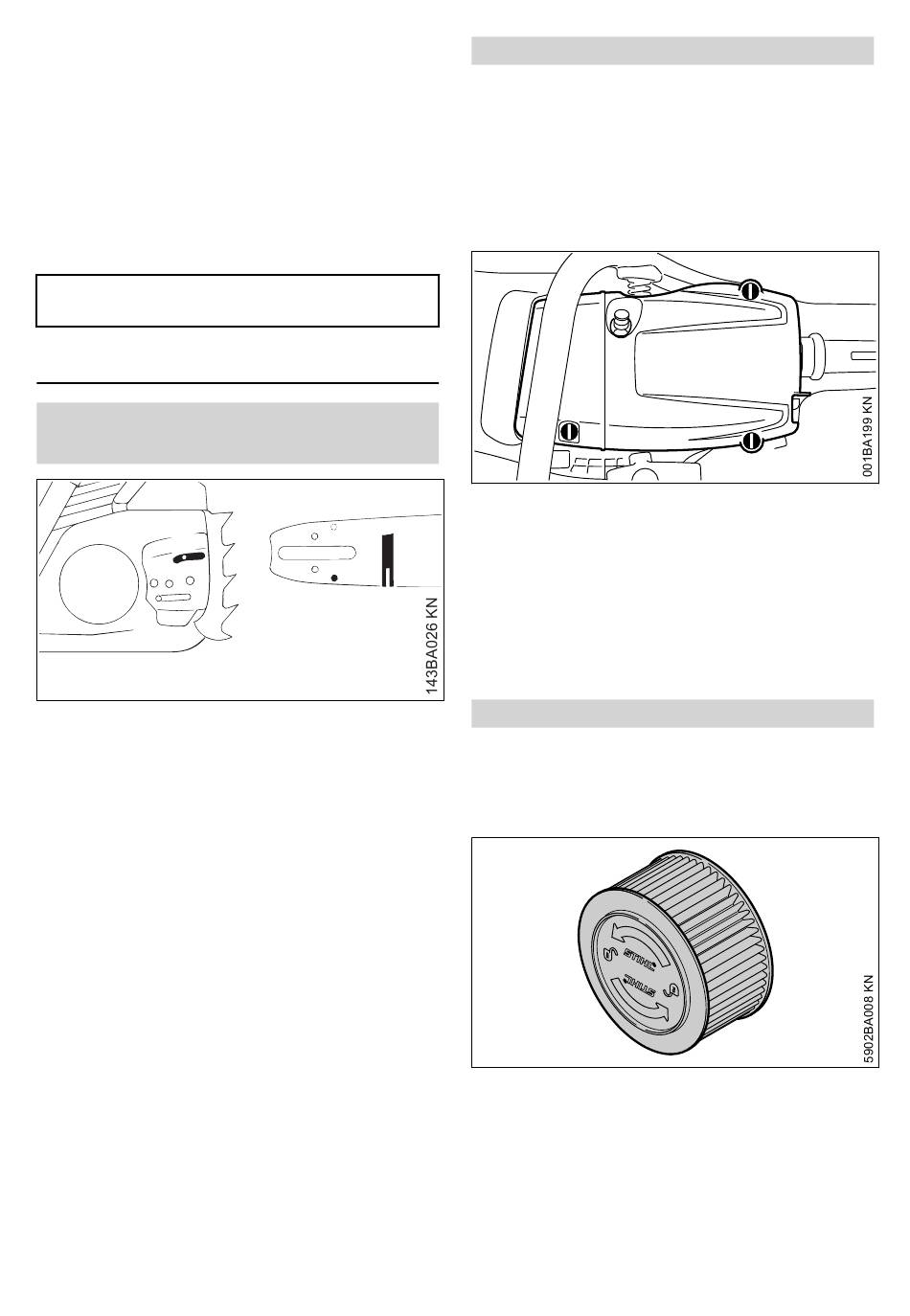

20 Taking Care of the Guide
Bar
2
► Turn the guide bar over – every time you
sharpen the chain and every time you replace
the chain – this helps avoid one-sided wear,
especially at the nose and underside of the
bar.
► Regularly clean the oil inlet hole (1), the oil‐
way (2) and the bar groove (3)
► Measure the groove depth – with the scale on
the filing gauge (special accessory) – in the
area used most for cutting
Chain type
Chain pitch
Picco
1/4" P
Rapid
1/4"
Picco
3/8" P
Rapid
3/8"; 0.325"
Rapid
0.404"
If groove depth is less than specified:
► Replace the guide bar
The drive link tangs will otherwise scrape along
the bottom of the groove – the cutters and tie
straps will not ride on the bar rails.
0458-153-8221-C
21.1
► To switch off the engine, move the Master
► Push the hand guard forward – the chain is
► Open the twist locks (1) by turning them 1/4
► Remove the shroud (2).
1
3
21.2
► Place the shroud in position.
► Close the twist locks by turning them a 1/4
The air filter system can be adapted to suit differ‐
ent operating conditions by installing different fil‐
ters. Changing a filter is accomplished quickly
and simply.
Minimum
groove
depth
4.0 mm
4.0 mm
5.0 mm
6.0 mm
7.0 mm
► HD2 Filter Universal filter for almost all operat‐
21 Shroud
Removing the Shroud
Control lever in the direction of STOP or † –
when released, the Master Control lever
springs back to the run position F.
locked.
1
turn counterclockwise with the combination
wrench.
Installing the Shroud
turn clockwise.
22 Air Filter System
ing conditions (from very dusty to very cold)
English
1
2
1
