C.
E.
3
4
3
1
2
1
4
1
D.
F.

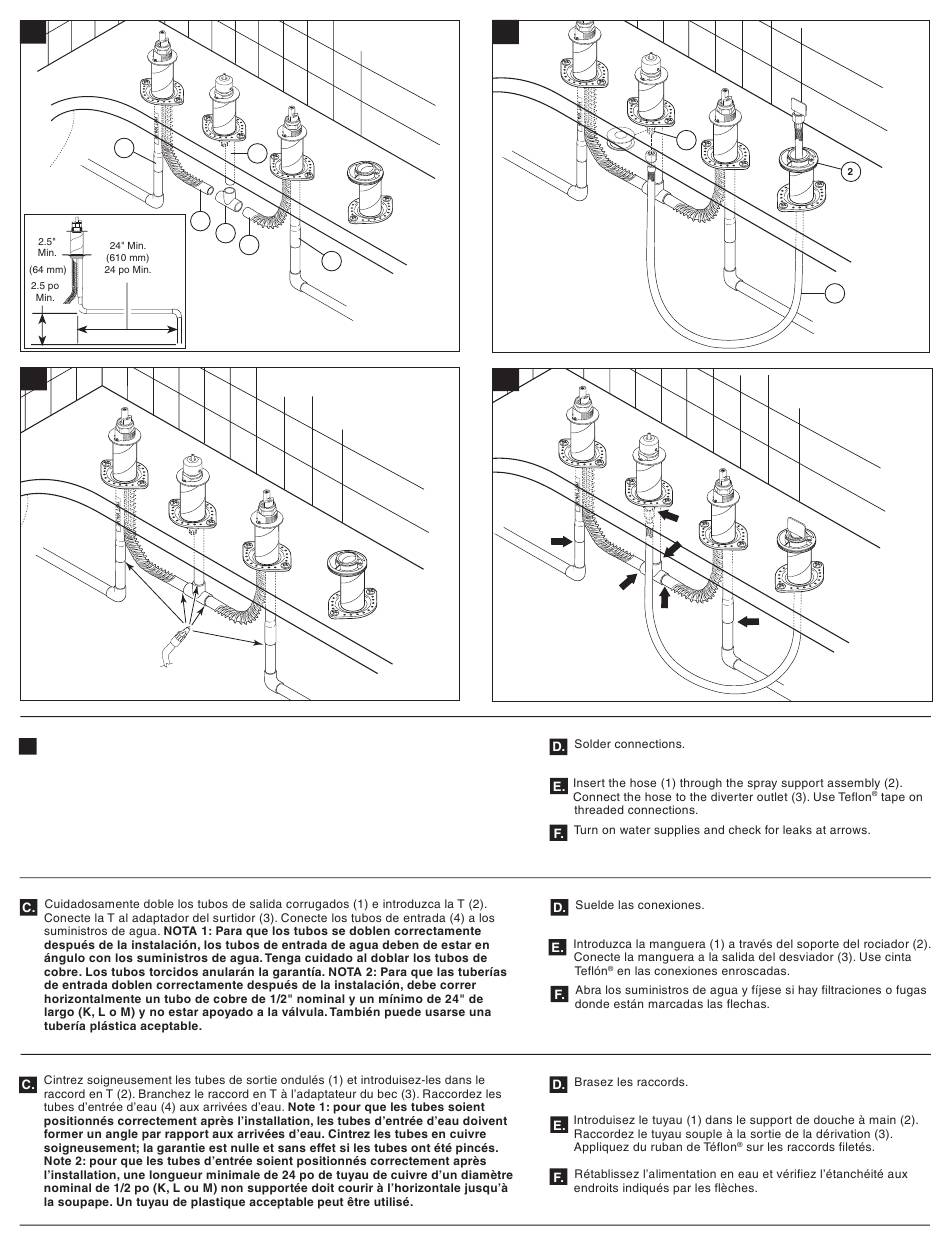

Carefully bend corrugated outlet tubes (1) and insert into tee (2). Connect tee to
C.
spout adapter (3). Connect inlet tubes (4) to water supplies. NOTE 1: For tubes to
bend properly after installation, water inlet tubes must be at an angle to the
water supplies. Be careful bending the copper tubes. Kinked tubes will void
warranty. NOTE 2: For inlets to bend properly after installation, a minimum 24"
length of 1/2" nominal copper tube (K, L or M) must run horizontal and
unsupported to the valve. Acceptable plastic pipe may also be used.
7
40292 Rev. B
