I.
Turn on water supplies and check for leaks. You are now ready for
I.
the trim kit. Please see the trim installation instructions.
1
B.
1

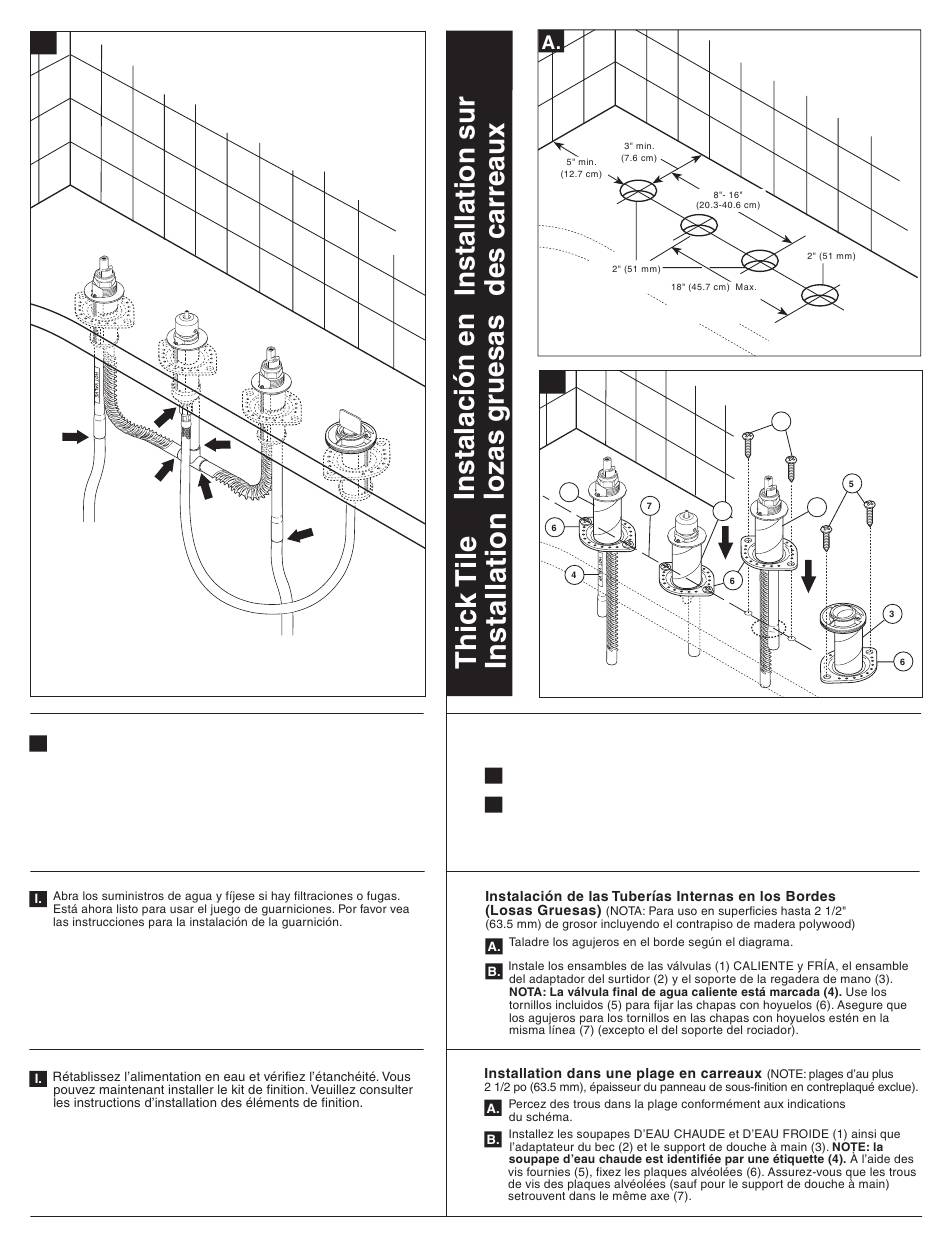

Rough Deck (Thick Tile) Installation
up to 2 1/2" (63.5 mm) thick excluding plywood underlayment.)
Drill holes in deck per diagram.
A.
Install HOT and COLD end valve assemblies (1), spout adapter assembly
B.
(2) and hand spray support assembly (3). NOTE: Hot side end valve is
labeled (4). Use enclosed screws (5) to attach dimpled plates (6). Make
sure screw holes in dimpled plates (except for the spray support) are along
the same line (7).
6
5
1
2
(NOTE: Intended for surfaces
40292 Rev. B
