A.
3" min.
(7.6 cm)
1- 1/2" (38 mm)
B.
1

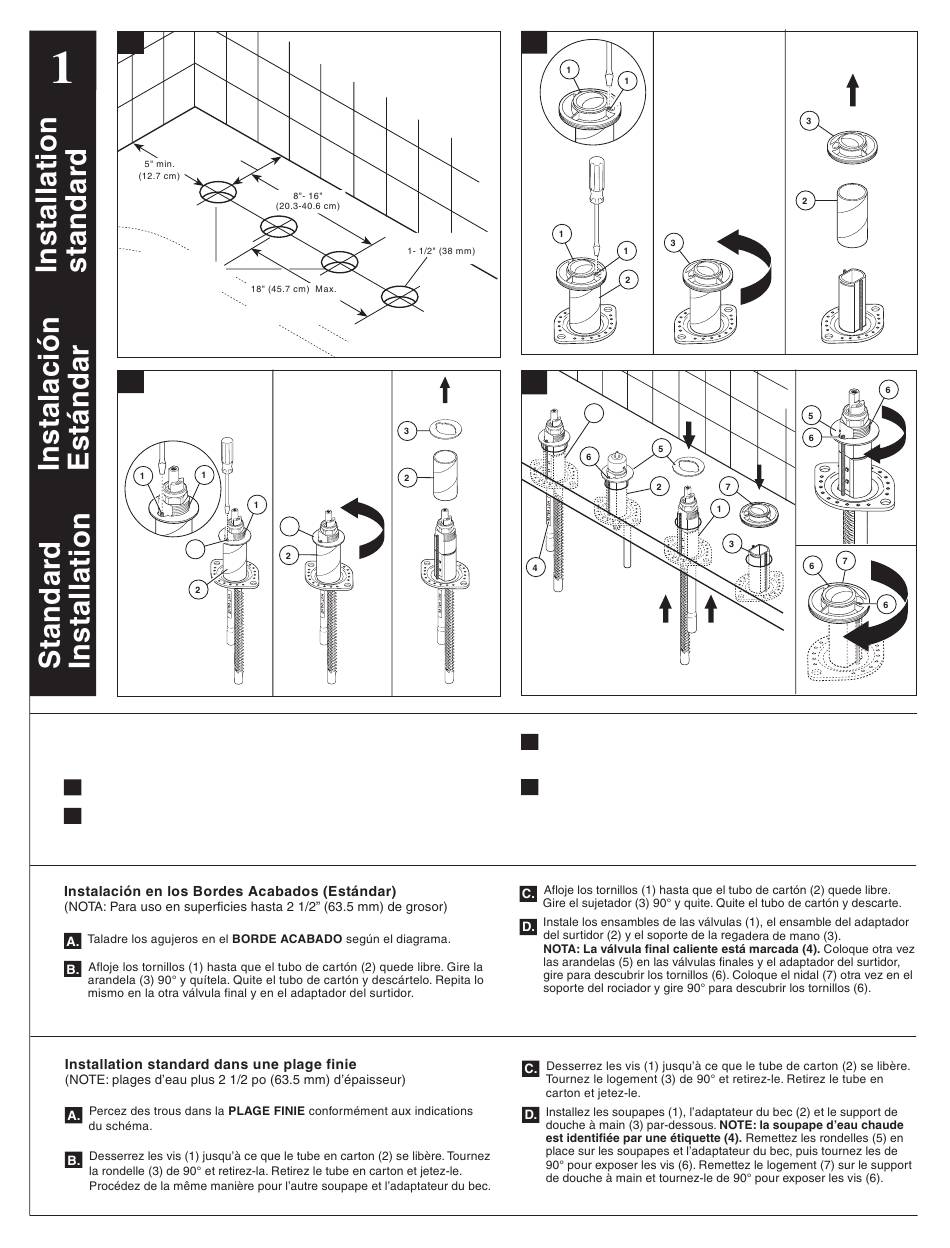

Finished Deck (Standard) Installation
(NOTE: Intended for surfaces up to 2 1/2" (63.5 mm) thick.)
Drill holes in FINISHED DECK per diagram.
A.
Loosen screws (1) until cardboard tube (2) is free. Rotate washer (3) 90°
B.
and remove. Remove cardboard tube and discard. Repeat for the other
end valve and spout adapter.
3
C.
D.
1
Loosen screws (1) until cardboard tube (2) is free. Rotate nest (3)
C.
90˚ and remove. Remove cardboard tube and discard.
Install end valves (1), spout adapter (2) and spray support assembly
D.
(3) from below. NOTE: Hot side end valve is labeled (4). Replace
washers (5) on end valves and spout adapter, rotate 90
screws (6). Replace nest (7) on spray suport assembly and rotate 90°
to expose screws (6).
4
˚
to expose
40292 Rev. B
