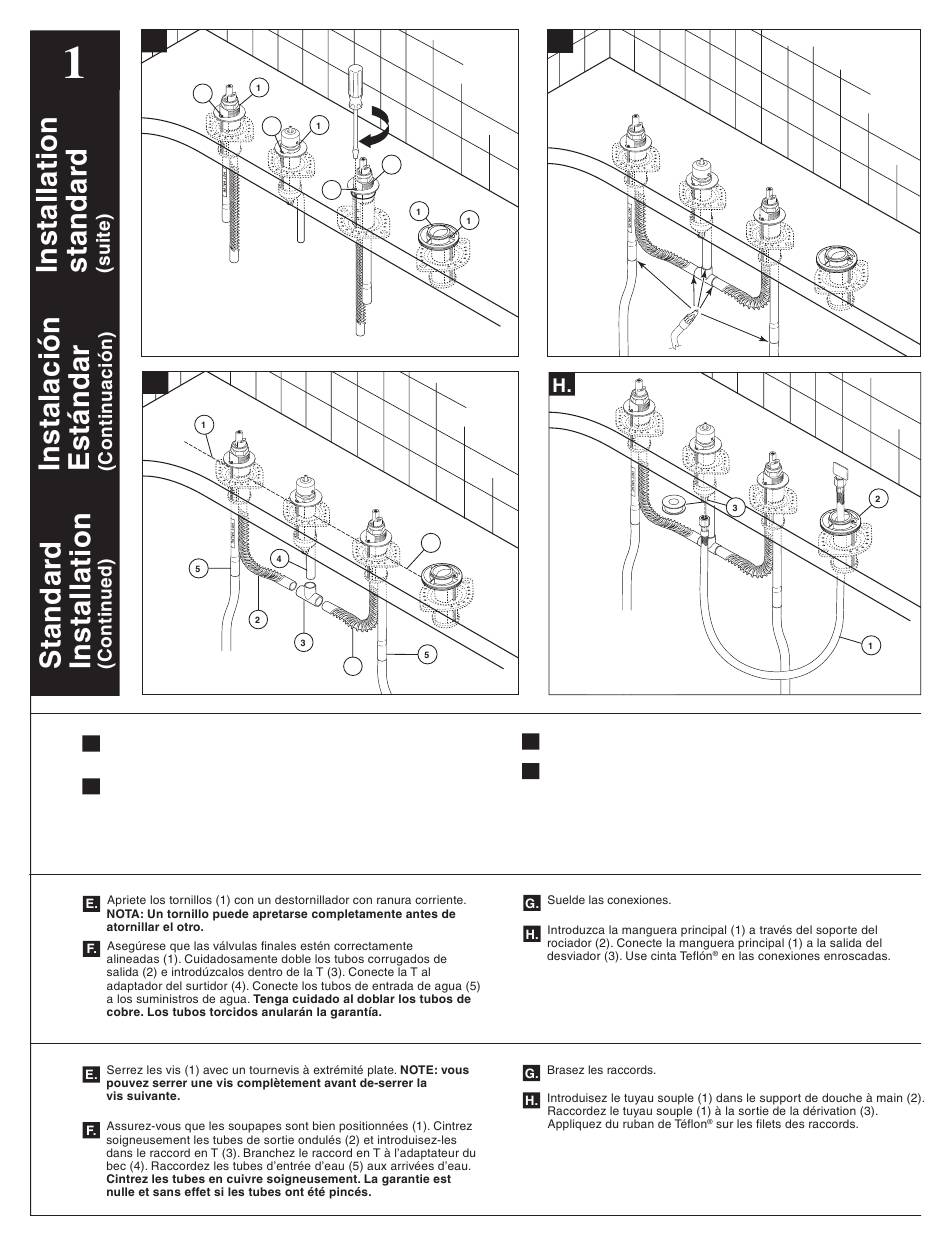

Tighten screws (1) with a regular slotted screwdriver. NOTE: One
E.
screw can be fully tightened before the other screw is tightened.
Make sure end valves are properly aligned (1). Carefully bend
F.
corrugated outlet tubes (2) and insert into tee (3). Connect tee
to spout adapter (4). Connect inlet tubes (5) to water supplies.
Be careful bending the copper tubes. Kinked tubes will
void warranty.
40292 Rev. B
1
1
1
1
2
G.
Solder connections.
G.
Insert the leader hose (1) through the spray support assembly (2).
H.
Connect the leader hose (1) to the diverter outlet (3). Use Teflon
tape on threaded connections.
