ENGLISH

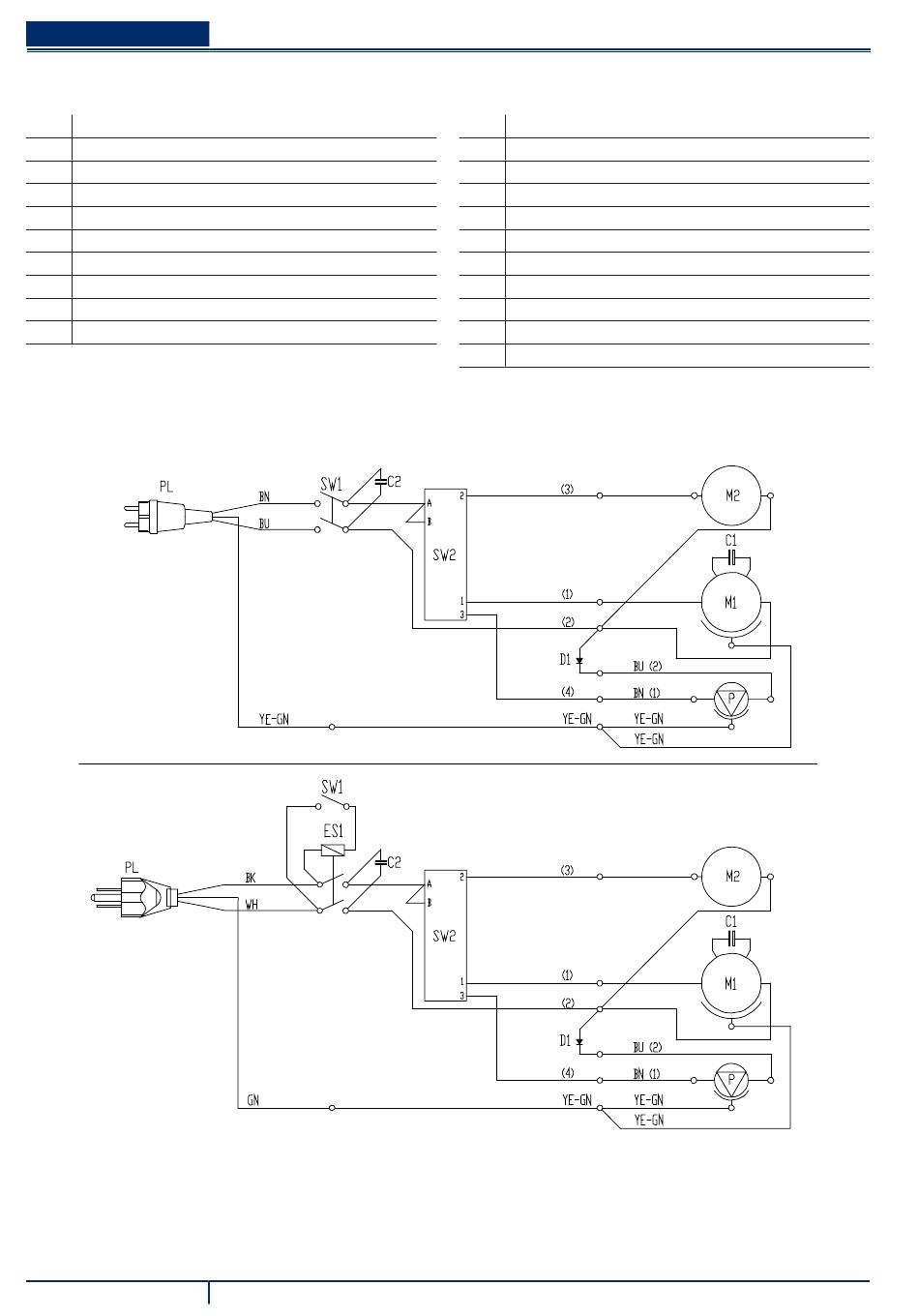

WIRING DIAGRAM

Key
C1 Brush motor condenser
C2 Filtering condenser
D1 Pump diode
ES1 Relay (115 V only)
M1 Brush/pad-holder motor
M2 Vacuum system motor
P Water pump
PL Plug
SW1 Main switch
SW2 Program selection knob
230 V
100 V
115 V
8
USER MANUAL
SCRUBTEC 233
Colour codes
BK Black
BU Blue
BN Brown
GN Green
GY Grey
OG Orange
PK Pink
RD Red
VT Violet
WH White
YE Yellow
P100312
9097883000(1)2008-06 A
