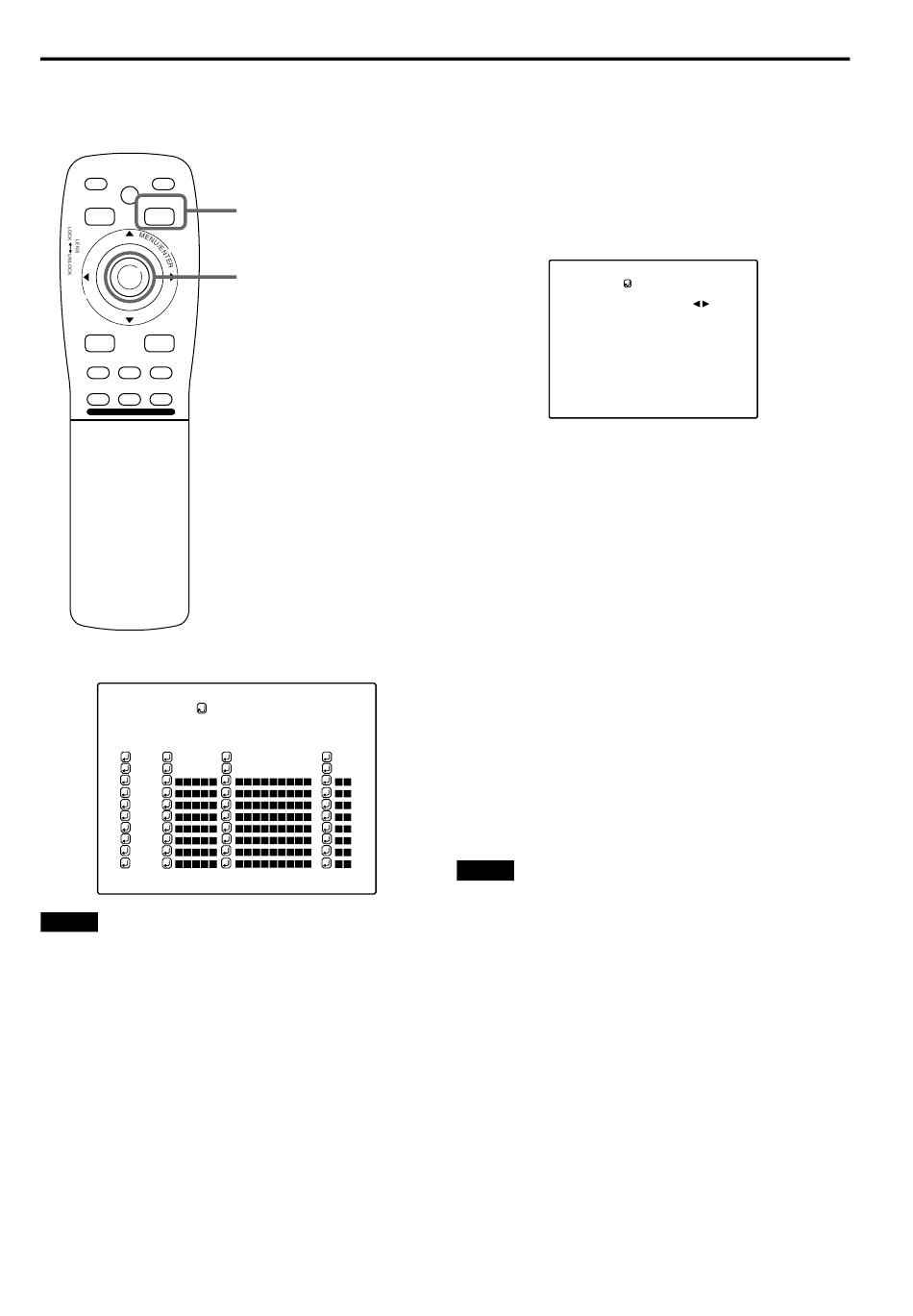

Setting Up Channels (SW No setup)

I Remote control unit
QUICK
ALIGN.
OPERATE
AV HIDE
PRESET PAGE BACK
AV RGB/COMPUTER
+
U T
SHIFT ZOOM FOCUS
–
D W
LENS
I CHANNEL setup • selection menu
C H A N N E L
CH L I N E
1
Y / C
2 V I D E O
3
4
5
6
7
8
9
10
Note
• The selected item is shown in magenta color. Items shown
in gray color cannot be operated or set in the current mode.
(If no line is registered, you cannot set any "SW No" item.)
50
PAGE BACK button
MENU/ENTER button
( A U T O )
SWNo
S O U R C E
1
N T S C ( 4 8 0 i )
2
P A L / S E C A M
This setup procedure is to make dedicate switcher operation
linked to the selection of designated channels.
When a switcher number "SW No" is selected:
The "Switcher number setup menu" is displayed.
• To be able to display a menu, a "SOURCE" needs to be
already set.
S W I T C H E R NO.
(SWITCHER No. setting menu)
1
Press MENU/ENTER toward the 2 or 3
mark to select a switcher number.
• Numbers that you can select from are numbers from 1
to 20 and characters "II" that signify non-registration.
• If you press MENU/ENTER toward the 2 mark, the
number becomes smaller, and pressing the button
toward the 3 mark makes the number larger.
• If you select "II", "SW No" will be deselected.
• If the selected channel is the same with the one in ( )
under the "CHANNEL" display at the top of the
"CHANNEL setup • selection menu", the registration or
settings cannot be cleared.
2
Press the PAGE BACK button to set.
• When you press PAGE BACK, the switcher number is
set, and the display returns to the "CHANNEL setup/
selection menu".
• Be careful that if you set the same switcher number to
a few channels and operate using the switcher number,
the youngest-number channel is switched to because
channels are read in the order of channel numbers.
Note
• You can automatically switch the channels of the projector
by specifying a switcher number through an external
controller.
As an example, if switcher number 1 (SW No1) has been
registered to channel number 1 (CH1), specifying switcher
number 1 (SW No1) automatically switches the projector to
channel number 1 (CH1). (For this operation, a setup is
required to communicate between the projector and the
external controller.)
For information on external controllers, contact the dealer
where you purchased your projector.
S W I T C H E R
1
