4.14 Back-Up Stop Pad
See Graphic: wc_gr001342
4.15 Engine Crank
See Graphic: wc_gr001345
wc_tx000294gb.fm
All manuals and user guides at all-guides.com

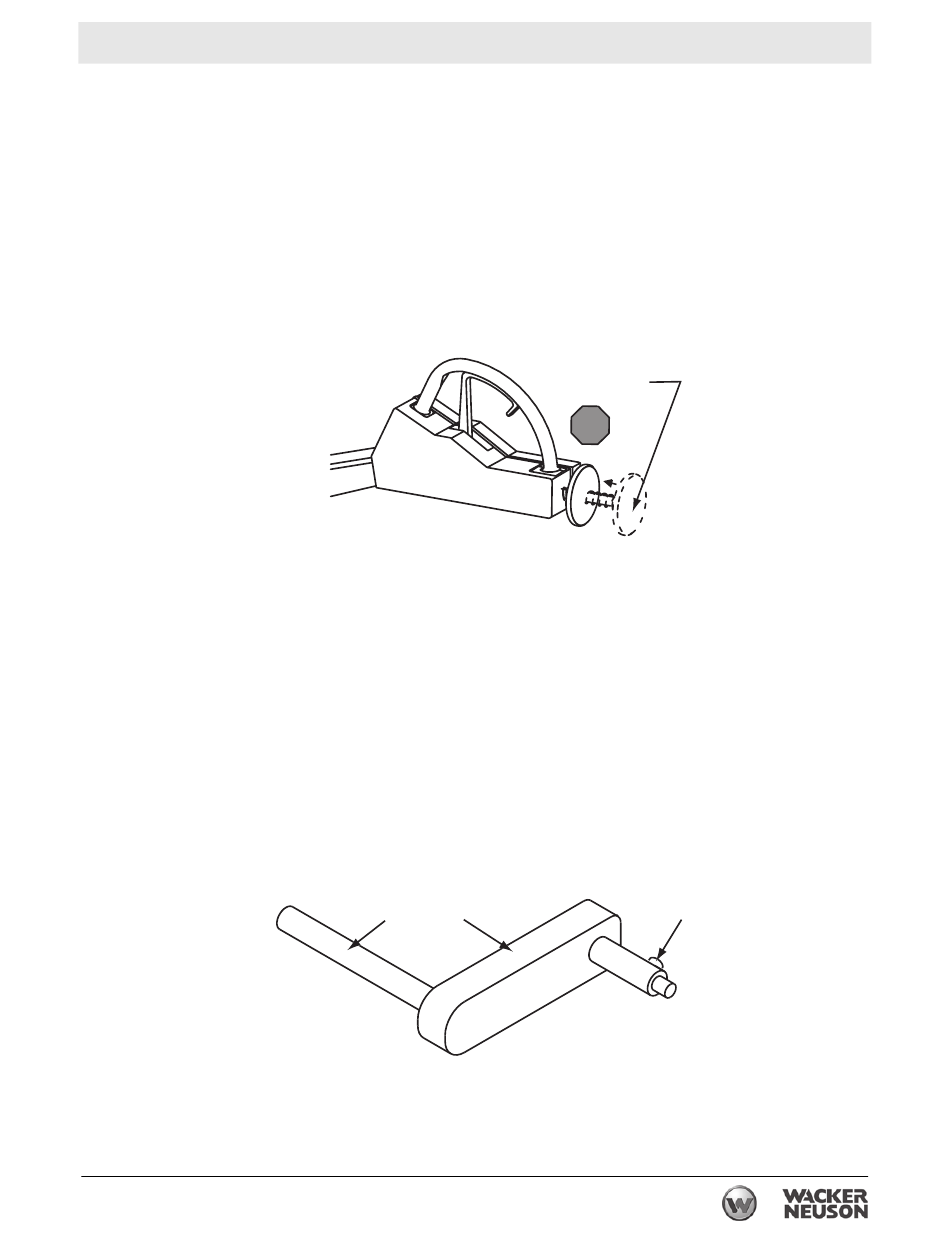

A back-up stop pad (a) is mounted to the rear section of the machine
behind the control panel. The back-up stop pad operates in reverse
only.
If the machine backs into an obstruction or if the operator becomes
trapped behind it, the pad will be pressed forward and stop the
machine. The machine can move only in the forward direction when
the handle is brought back through the neutral position.
The engine crank is equipped with kick-back damping to protect the
operator from injury should the engine backfire. The brief reverse
rotation at the handle tube (a) separates the link between the crank lug
(b) and the driving dog (c).
a
b
a
STOP
wc_gr001342
wc_gr001345
33
Operation
c
