a. Charging the battery on-board
To charge the battery:
1. Position the machine close to a power
outlet and remove the key (fig. 6.A);
2. Lift the seat;
3. Life the cap on the recharging
socket (fig. 16.A);
4. Connect the battery charger supplied
to the recharging socket (fig. 17.A)
with the specific bayonet mount for the
respective connector (fig. 17.B);
5. Connect the battery charger to the
mains by inserting its plug (fig. 18).
To charge the battery, a socket with a
differential safety switch (Fig. 19.A) is
supplied (where required) to which the charge
cable (Fig. 19 E) must be connected.
The socket with the differential
safety switch must be connected to
the mains power network and an
operating test must be carried out:
1. Press the "RESET" button (Fig. 19 BA)
to activate operation. The indicator
light must be "ON" (Fig. 19.C).
2. Press the "TEST" button (Fig. 19.D) to
perform the operating test. The indicator
light must be "OFF" (Fig. 19.C).
DANGER
If the operating test is not completed
successfully, the socket with the differential
switch must not be used. If the operating test is
completed successfully, it can be used and the
operator can proceed with the charging stage.
During recharging, the battery indicator
LEDs (fig. 7.F) flash progressively. When
each individual charge threshold is reached,
the respective LED remains lit steadily,
while the others continue to flash.
ATTENTION
After 24 hours of operation, the on-board
battery charger is deactivated and the batteries
are not kept under charge indefinitely.
NOTICE
Installed batteries are charged in sequence.
It is therefore advisable always to carry
out a complete charging cycle.

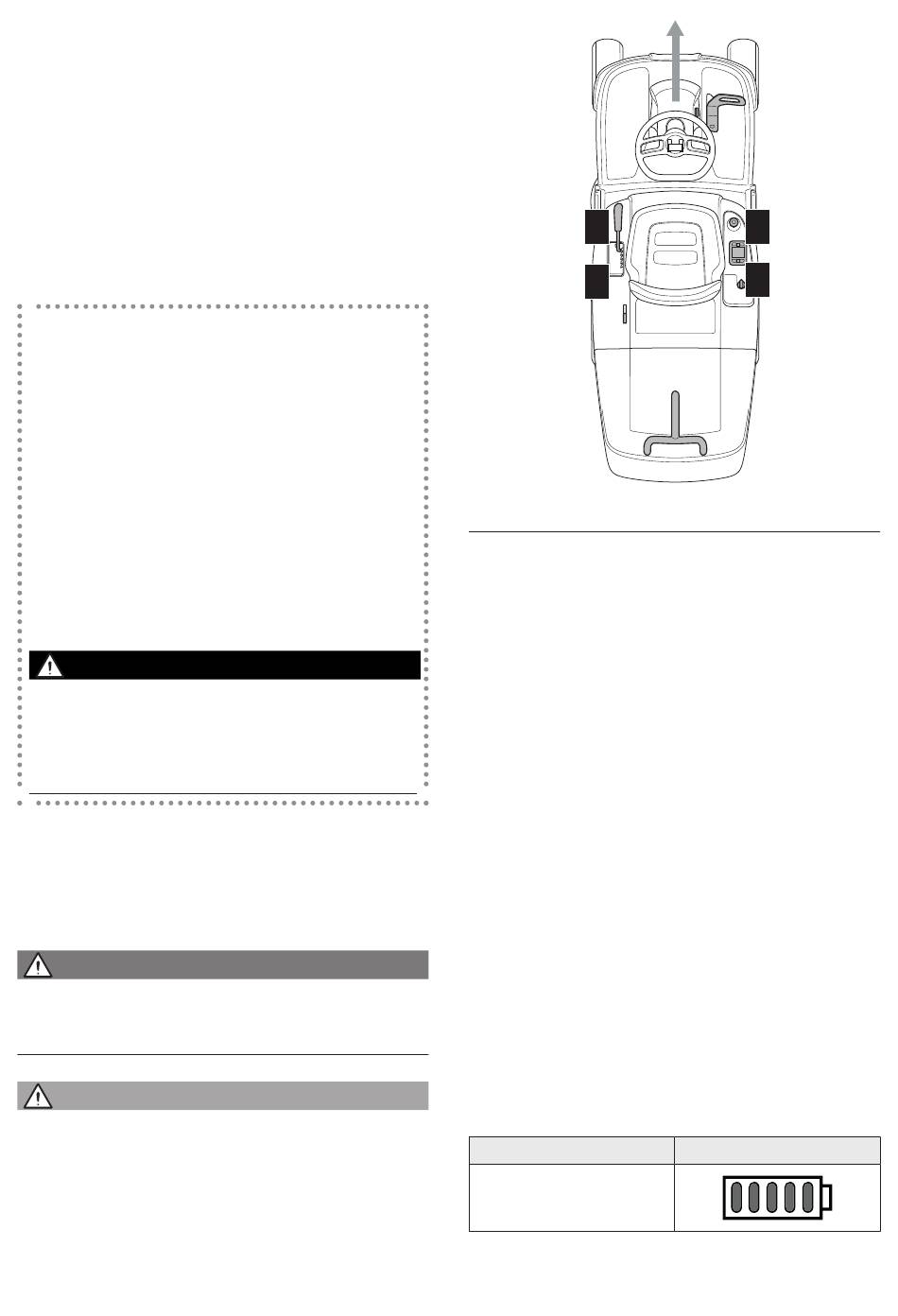

3
4
b. Charging the battery off-board
To charge the battery:
1. Open the hatch (fig. 20.A) on
the battery housing;
2. Press the release button located
on the battery (Fig. 32.A) and
remove the battery (Fig. 32.B);
3. Fit the battery (Fig. 33.A) in the battery
charger compartment (Fig. 33.B);
4. Connect the battery charger (Fig. 33.B)
to a power socket with the voltage
indicated on the rating plate;
5. Fully charge the battery following
to the instructions given in the
battery charger manual.
6. When charging is complete, remove
the battery (Fig. 34.A) from the battery
charger compartment (Fig. 34.B);
7. Disconnect the battery charger (Fig.
34.B) from the electrical mains;
8. Mount the battery (fig. 35.A) in its
housing on the machine again and
close the battery compartment hatch.
The batteries can be kept under
charge indefinitely.
Charge status (SOC)
SOC > 80%
EN - 21
1
2
Led ON
