Altrad BELLE RTX RAMMERS Manuel De L'opérateur page 41

RTX 66, 68, 70, 74 & 80D
1
2
1
4
3

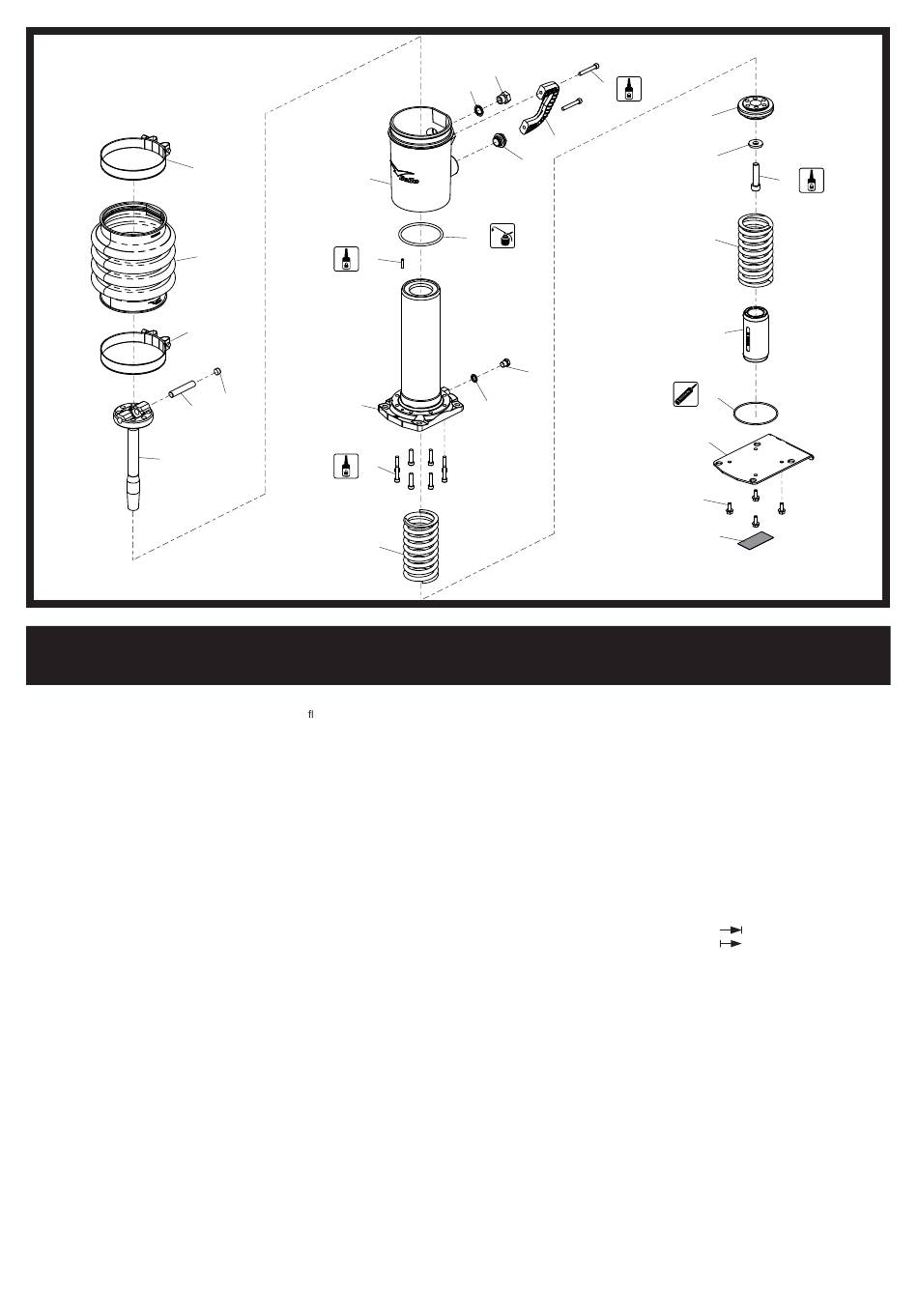

Leg Assembly, Ensemble de Jambes,
Conjunto de Piernas, Conjunto de Pernas
1 3/7052 ................. Clamp ............................Serrage ............................ Mordaza ...................................Grampo ......................................................................................2
2 980/99911 ........... Bellows ..........................Souf et ............................ Fuelles .....................................Fole ............................................................................................1
3 980/00202 ........... Piston Rod .....................Piston .............................. Pistón .......................................Pistão .........................................................................................1
4 980/00203 ........... Dowel .............................Goujon Prisonnier ............ Clavija ......................................Espigão ......................................................................................1
5 980/00204 ........... Cap ................................Capuchon ........................ Casquete..................................Tampa ........................................................................................1
6 980/99901 ........... Lower Support Casting ..Pièce Moulée Support Inférieur .......................................................................................................................................................1
7 5/0002 ................. Seal ................................Joint d'étanchéité ............ Obturador .................................Vedação .................................1/2" .............................................1
8 10-601-0800 ........ Plug ................................Bougie ............................ Tapón .......................................Bujão ......................................1/2" .............................................1
9 7/8029 ................. Screw .............................Vis ................................... Tornillo .....................................Parafuse .................................M8 x 55 ......................................2
980/99902 ........... Handle ...........................Guidon ............................. Manillar ....................................Punho .........................................................................................1
10
11 40/00005 ............. Gauge ............................Jauge ............................... Calibrar ....................................Ajuizar ........................................................................................1
5/0076 ................. O-Ring ...........................Jeu Joint torique .............. Juego Junta tórica....................Jogo Anel Vedante .................99.3 x 5.7 ...................................1
12
13 3/8004 ................. Dowel .............................Goujon Prisonnier ............ Clavija ......................................Espigão ..................................6 x 25 .........................................1
980/00100 ........... Tube ...............................Tube ................................ Tubo .........................................Tubo ...........................................................................................1
14
15 MS12 ................... Bung ..............................Obturateur ...................... Tapón .......................................Tampão ......................................................................................1
16 5/0011 ................. Seal ................................Joint d'étanchéité ............ Obturador .................................Vedação .................................1/4" .............................................1
17 7/8032 ................. Screw .............................Vis ................................... Tornillo .....................................Parafuse .................................M8 x 35 ......................................8
980/99977 ........... Re-Work Kit ...................Kit de reprise ................... Kit de retrabajo.........................Kit retrabalho ..........................
18
2/0068 ................. Spring ............................Ressort ............................ Resorte ....................................Mola ........................................
18
2/0068 ................. Spring ............................Ressort ............................ Resorte ....................................Mola ........................................RTX 68, 80D ..............................2
18
2/0080 ................. Spring ............................Ressort ............................ Resorte ....................................Mola ........................................RTX 70 .......................................2
18
980/00201 ........... Boss ...............................Bossage .......................... Resalte .....................................Cubo ...........................................................................................1
19
4/1406 ................. Washer ...........................Rondelle .......................... Arandela...................................Anilha .....................................14.5 x 35 x 5 ...............................1
20
21 7/14015 ............... Screw .............................Vis ................................... Tornillo .....................................Parafuse .................................14 x 2 x 40 ..................................1
22 980/99974 ........... Stop Moulding ...........................................................................................................................................................RTX 66, 68, 70 & 74 ...................1
22 980/99979 ........... Stop Moulding ...........................................................................................................................................................RTX 80D ....................................1
5/0075 ................. O-Ring ...........................Jeu Joint torique .............. Juego Junta tórica....................Jogo Anel Vedante .................104.5 x 3 ....................................1
24
980/99907 ........... Plate ...............................Plaque ............................. Placa ........................................Placa ..........................................................................................1
25
26 7/8037 ................. Screw .............................Vis ................................... Tornillo .....................................Parafuse .................................M8 x 20 .....................................4
27 800/99619 ........... Decal .............................Autocollant ...................... Rótulo ......................................Decalque ................................Caution - Springs .......................1
6
13
5
14
17
18
8
7
9
10
11
12
15
16
320
4-02
19
20
21
18
22
24
25
26
27
204274 (RTX 66 & 74) ......2
204275 (RTX 66 & 74) ......2
