9.6.5 Polarity Menu

The following parameters can be set from the Polarity
menu:
01. Zoom: Allows the setting of the rotation polarity
of the lens Zoom motor.
02. Focus: Allows the setting of the rotation polarity
of the lens Focus motor.
03. Iris: Allows the setting of the rotation polarity of
the lens Iris motor.

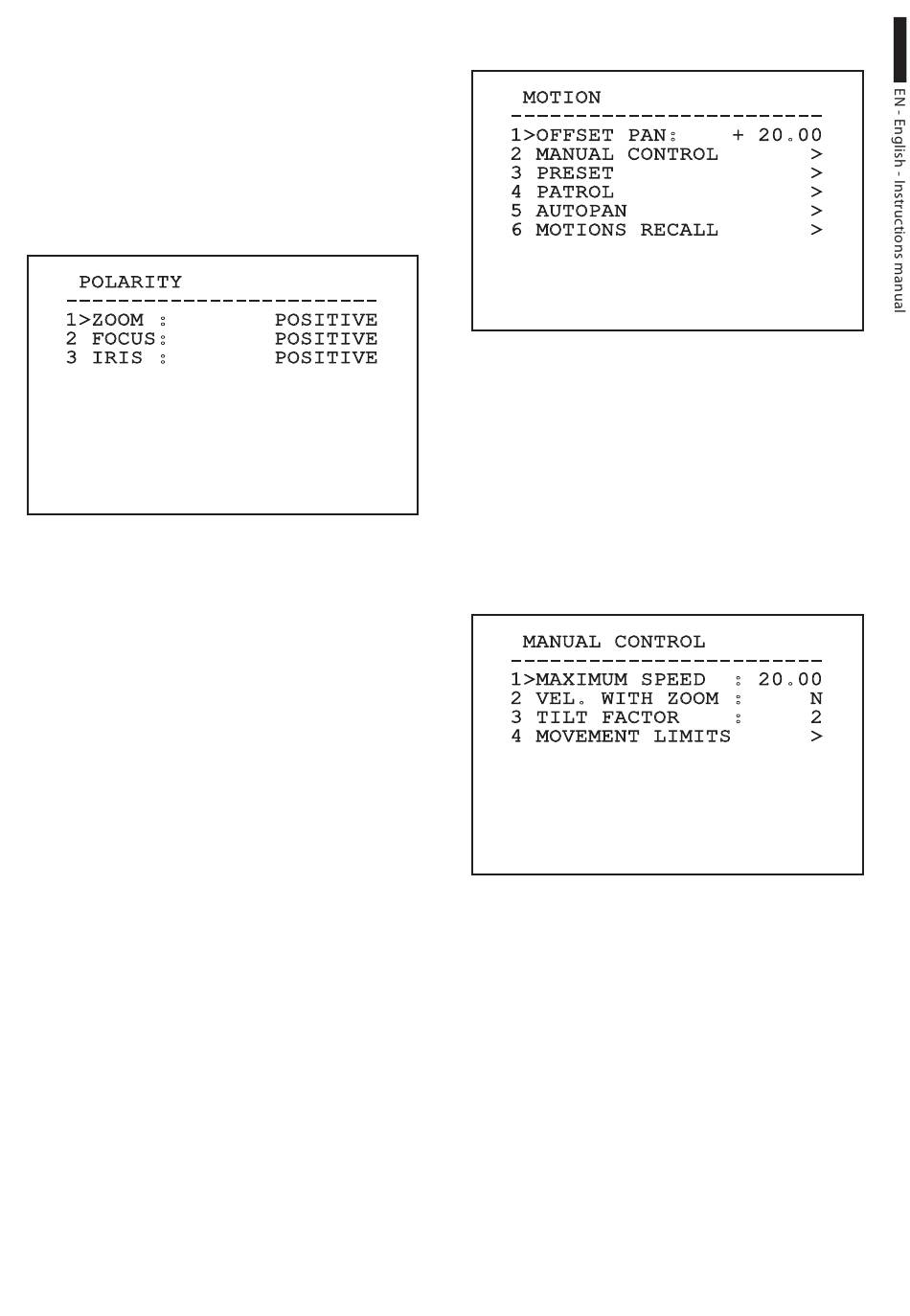

POLARITY
------------------------
1>ZOOM :
2 FOCUS:
3 IRIS :
Fig. 65

9.6.6 Movement menu

01. Offset Pan: The pan & tilt has a mechanically
defined 0° position. The Offset Pan function
allows the definition of a different 0° position
using software.
02. Manual Control: To access the submenus
operating the parameters associated with the
manual movements of the device.
03. Preset: To access the submenus used to to edit
Preset values.
04. Patrol: To access the submenus used to edit
Patrol values.
05. Autopan: To access the submenus used to edit
Autopan values.
POSITIVE
POSITIVE
POSITIVE
06. Motions Recall: To access the submenu which
manages automatic load of the movements.
MOTION
------------------------
1>OFFSET PAN:
2 MANUAL CONTROL
3 PRESET
4 PATROL
5 AUTOPAN
6 MOTIONS RECALL
Fig. 66

9.6.6.1 Manual Control Menu

01. Maximum Speed: Sets the maximum manual
speed.
02. Speed With Zoom: When enabled, this
parameter automatically slows down the PAN &
TILT speed, based on the ZOOM factor.
03. Tilt factor: Sets the reduction factor of the tilt
axis manual speed.
04. Movement Limits: To access the Limits menu
MANUAL CONTROL
------------------------
1>MAXIMUM SPEED
2 VEL. WITH ZOOM :
3 TILT FACTOR
4 MOVEMENT LIMITS
Fig. 67
+ 20.00
>
>
>
>
>
: 20.00
N
: 2
>
31
