Delay duration
Diameter
Material
Locked Arc length range
Locked Speed range high
Locked Speed range low
* : Defautt value in Pls and Pip mode, 50% and 0 sec in Std mode

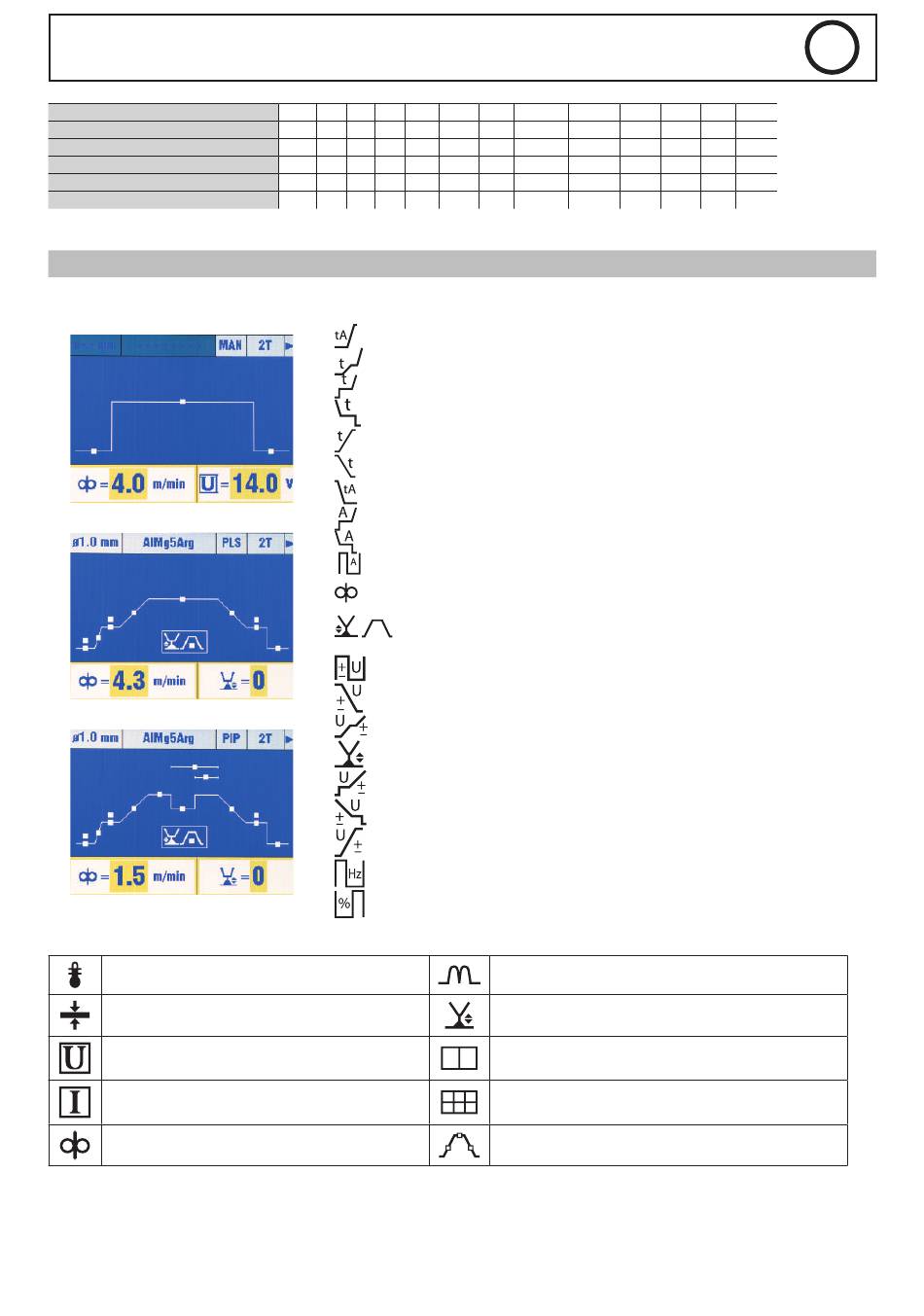

SETTINGS ACCESSIBLE IN GRAPH MODE (WELDING CYCLE)
The main arc length setting affects each arc length in the cycle (incrasing the main arc length increases the arc length for the hot-start, upslope,
etc).
Other symbols :
Thermal protection
Weldpiece thickness.
Voltage indicator
Current indicator.
Motor speed setting.
RC-HD1
N N N N N Y
Y Y Y N Y Y
Y Y Y N Y Y
Y Y Y Y Y Y
Y Y Y Y Y Y
Y Y Y Y Y Y
PreGas : PreGas duration.
TSoftstart : Soft start phase duration (SoftStart).
THotstart : Hot start phase duration (HotStart).
TCraterFiller : Crater filler phase duration.
TUpslope : Upslope phase duration.
Downslope : Downslope phase duration.
PostGas : PostGas phase duration.
I Hotstart : Current during the Hot start phase (Hotstart).
I CraterFiller : Current during the Crater filler phase (Crater Filler).
I Cold : Current proportion for the background current phase.
CREEP SPEED : reducing coefficient of the approach speed (Reduce for thick sheets, e.g.
50%) Do not change for thin metal sheets).
Can access arc length settings for each phase (Softstart, Hotstart,Upslope,Welding,
Downslope,CraterFiller).
Delta U Cold : Arc length during the cold phase.
Delta U Downslope : Arc length during downslope phase.
Delta U Softstart : Arc length during soft start phase.
Delta U Soudage : Arc length during welding phase.
Delta U Hotstart : Arc length during Hot start ignition phase (Hotstart).
Delta U Crater Filler : Arc length during Crater Filler phase.
Delta U Upslope : Arc length during Upslope phase.
: Frequency in PiP mode.
: Hot phase duty cycle in PiP mode.
N 0,1-10 2 0,1
N File 1 existe
N File 1er existe
N ±40 ±20 ±1
N +10 +10 1
N -10 -10 1
Inductance
General arc length setting (Softstart, Hotstart, Upslope, Wel-
ding, Downslope, CraterFiller)
Simplified mode.
Advanced mode.
Graph. mode
