For optimal use, it is recommended to use the wire and gas associated with the chosen synergic mode.
These synergic parameters can be updated with the SD card (see SD card section)
4 - Arc length settings (synergic)
Adjust arc length on a -40 -> +40 scale for individual settings (synergic)
5 - Thickness settings (synergic)
6 - Thermal protection indicator
Signals thermal protection when the machine has reached maximum temperature (a few minutes).
TOP BAR DETAILS
First page :
Wire diameter
Second page :
Settings display mode :
2 boxes (Easy), 6 boxes (Pro.), graph
(Welding cycle).
Synergic curves updates and full machine resets cannot be performed with the remote control.
For such operations, use the wire feeder's interface.
Saving and loading JOB on the SD card cannot be performed with the remote control.
For such operations, use the wire feeder's interface.
Third page :
Choosing welding process :
Mig-Mag or MMA
Calibration cannot be performed with the remote control. For such operations, use the wire feeder's interface.

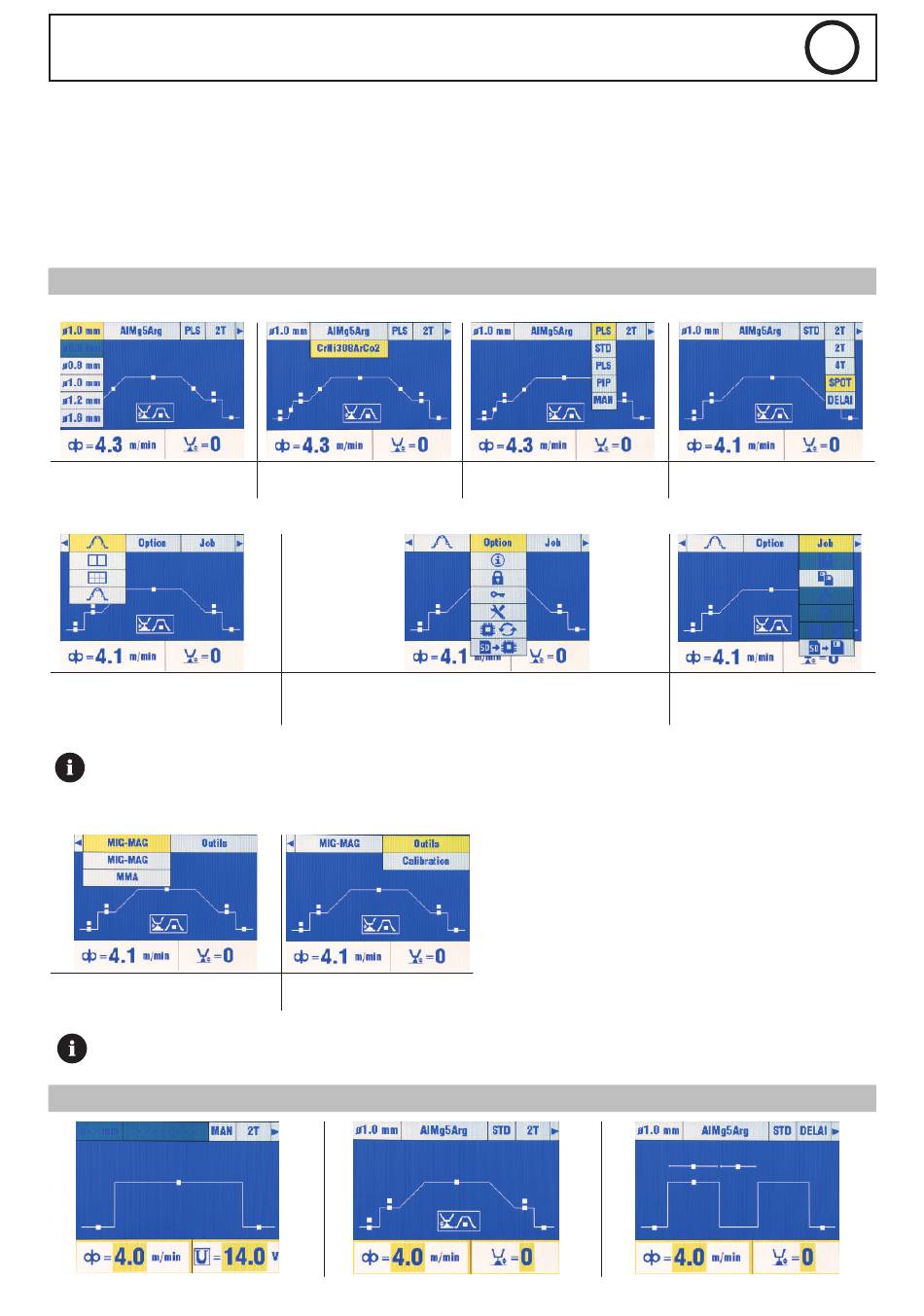

THE GRAPHS AND OTHER WELDING MODES
RC-HD1
Gas-material rocker switch
Option : versions, machine lock, password changing, Misc settings,
Synergic modes update (Cooling unit, arc speed & length, lan-
guage), full reset of the machine.
Machine calibration
Welding mode : STD, PLS, PIP
or double Pulse, MAN.
EN
Trigger mode : 2T, 4T, Spot,
Delay.
Job : save settings.
