IV. GETTING STARTED
4.1- Unpacking
Remove product from its packaging.
Check that product and accessories are not damage.
4.2- Content
The unit package contains:
- Power unit
- Guide bar
- Chain
- Protective sheath
- Manual
4.3- Installing the guide bar and the chain
WARNING! Make sure that the chainsaw is switched off and unplugged from the mains
power source before proceeding to any intervention on the product such as assembly,
maintenance, repair, cleaning.
WARNING! - The saw chain has very sharp edges.
Note: Before assembling the chain, pay attention to direction of cutting teeth and to
chain direction of rotation. The direction of rotation is indicated by an arrow on the
housing. Follow the assembly direction and chain run direction.
1. Fig.2: Release the chain brake: pull the chain brake lever (3) towards the front handle.
2. Fig.2: Loosen counterclockwise clamping knob (15) and remove the chain cover (a).
3. Fig.3 & 4: Set the guide bar (2) onto the guided bolt (c) (threaded stud).
4. Fig.3 & 4: Slip the chain around the sprocket (d) and into the groove (i) on the guide bar (2).
5. Fig.3 & 4: Guide the saw chain around the sprocket (d) and concurrently pull the saw chain slightly
in the direction of the arrow (see (b)).
The saw chain may drop slightly on the lower part of the guide bar.
6. Install the chain cover (a) and tighten the clamping knob (15) clockwise.

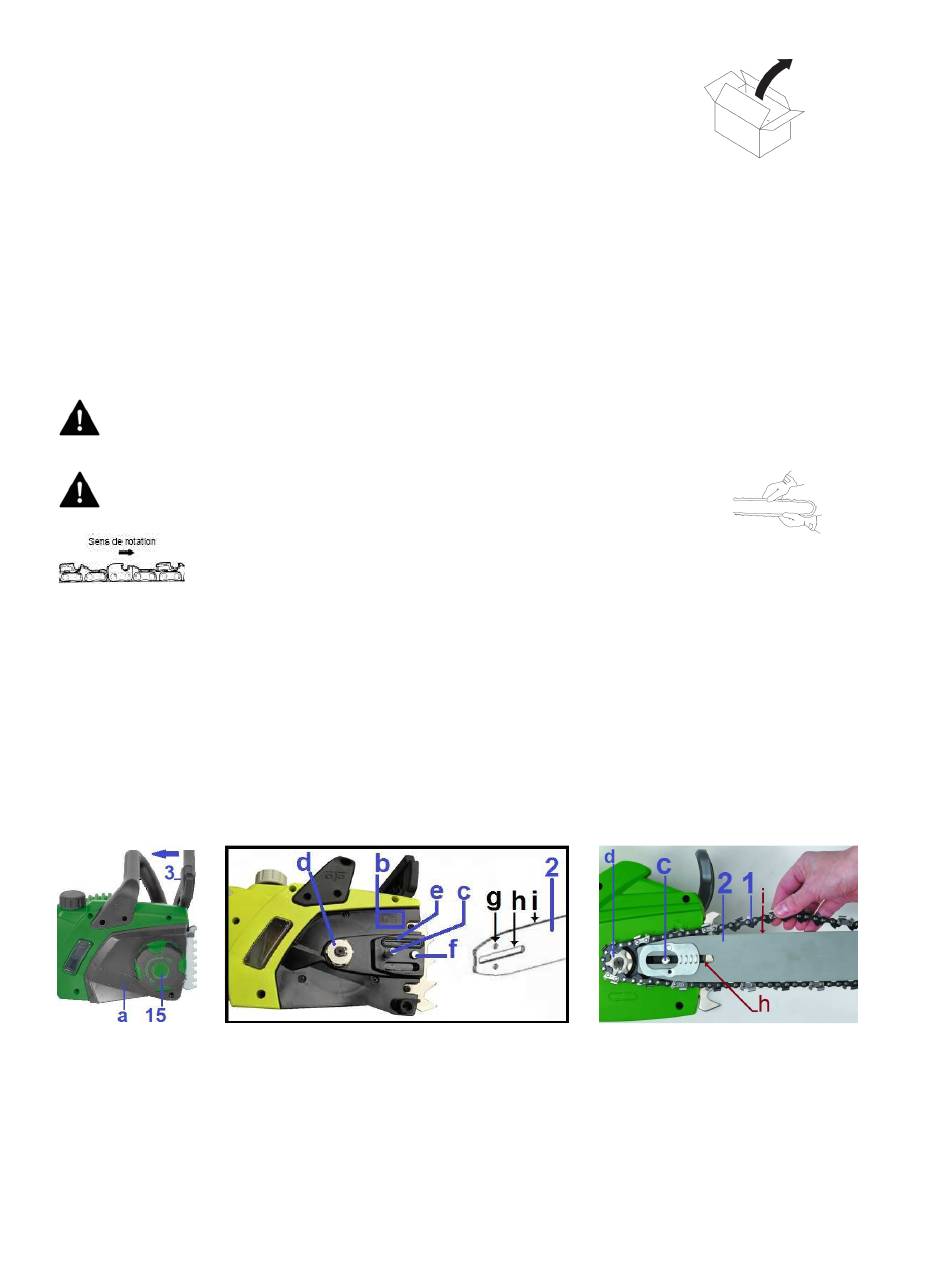

Fig.2
a- Chain cover; b- Rotation direction; c- Guided bolt; d- Sprocket; e- Oil outlet; f- Tensioning bolt;
g- Oil supply orifice; h- Window guide; i- Chain guide groove
- Use thick protective gloves for safety.
Fig.3
Fig.4
