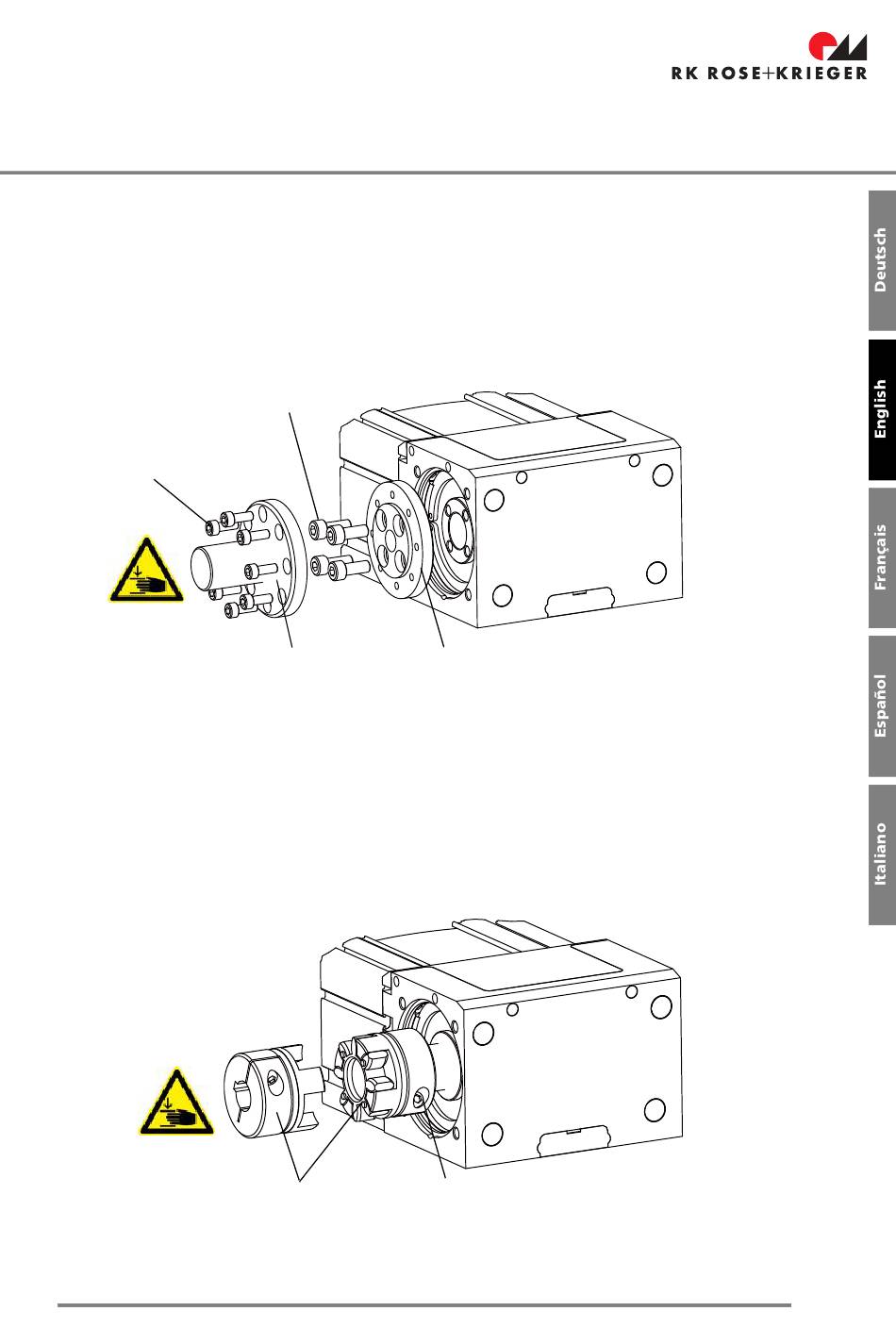

Screw pins
Use the adapter disk centring lug in the hollow shaft of the toothed disk shaft
Tighten the fixing screws alternately in a diagonal sequence
Centre the bolt pins on the adapter disk
Tighten the fixing screws alternately in a diagonal sequence
DIN EN ISO 4762 12.9
DIN EN ISO 4762 8.8
Screw pins
Coupling installation
Coupling installation – pin versions with/without feather key
Push the coupling lug on to the pin
Observe the plug-in depth at the lug
Torque the clamping screw (DIN EN ISO 7380)
Max. operating speed n = 3000 rpm
Coupling installation – tension ring lug
Push the tension ring lug on to the pin
Coupling installation
Coupling
Locking screw DIN EN ISO 7380
