Requirements on air purity for the Jäger
spindle
When another service unit than the one supplied is
to be used, the following connection conditions
according to DIN-ISO 8573-1 must be ensured:
_ Solid contaminants: Class 3
(particle size max. 5 μm, particle density max.
3
5 mg/m
)
_ Water content: Class 4
(max. pressure dew point +3 °C, water content
3
max. 6000 mg/m
)
_ Total oil content: Class 2;
(max. oil content 0.1 mg/m
Recommended extraction system require-
ments
When another extraction system is to be used, it
must meet the following requirements:
_ Suction capacity: 240 m
_ Suitability for zirconium-oxide dusts
_ HEPA microfilter (97.97 %), filter class H12,
dust category M
The connection of the extraction hose to the
machine is made with an adapter (in delivery
scope). The adapter fits extraction hoses with a
38 mm interior diameter.
Installation of the extraction system in the
supply unit
▷ Set the extraction system to the operating
mode AUTO.
▷ Insert the extraction system with the extraction
opening facing toward the rear onto the set-up
cart.
▷ Plug in the control cable of the extraction sys-
tem at the rear side of the milling machine.
▷ Insert the extraction hose of the extraction sys-
tem into the milling machine.
3
)
3
/h
I N S T A L L A T I O N
5.4
Installation of the CAM and milling
machine software
▷ Insert the CAM software CD-ROM into the drive
of the PC.
The software to be installed is on the CD.
▷ Execute the ".exe" file and follow the directions
on the monitor.
Connecting the interfaces
1 2 3
5
6
100/115/230VAC
I
0
230V
T3.15 A
100/115V
T6.30 A

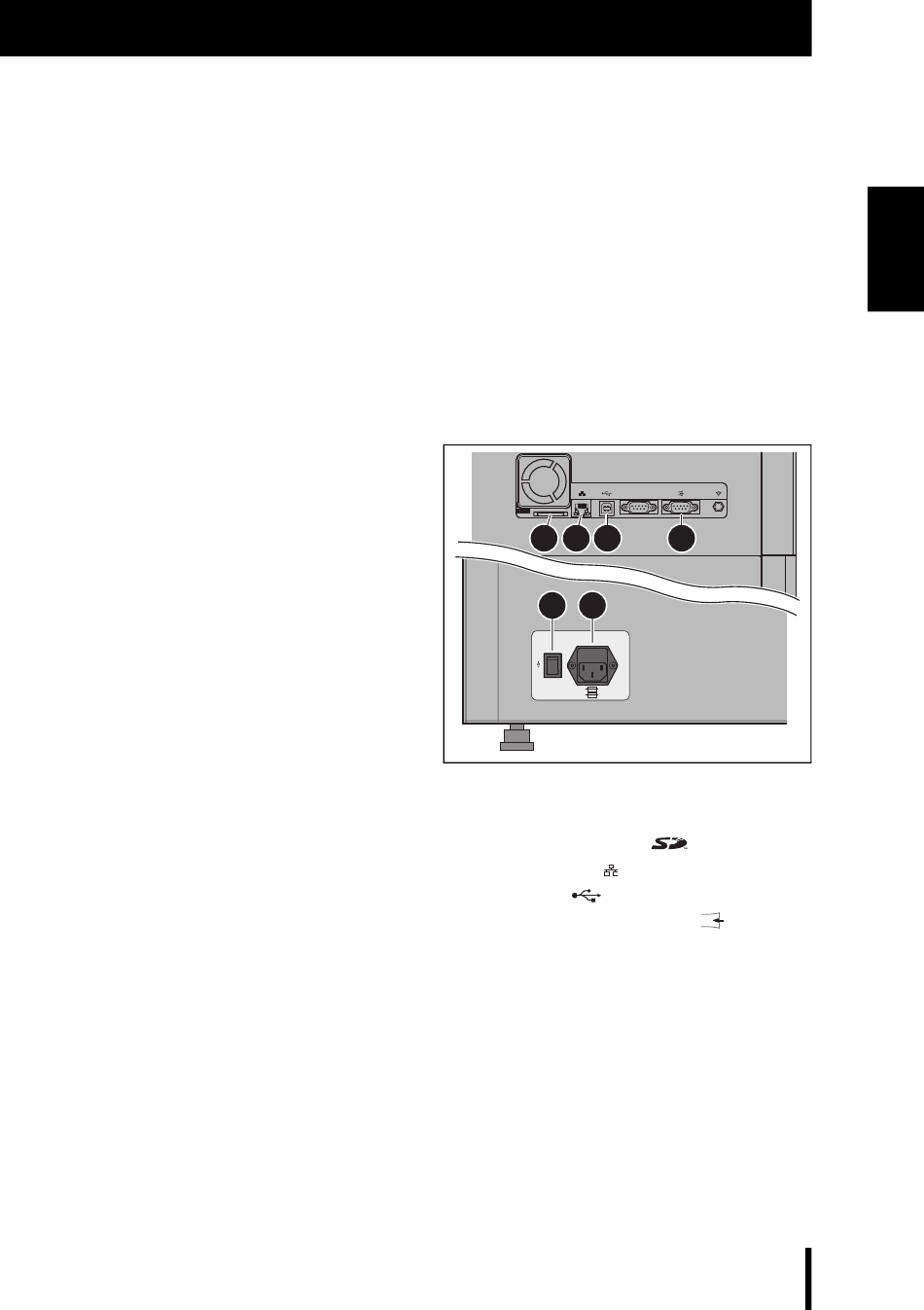

Fig. 7
Interfaces on the rear side of the milling
machine
1 Slot for SD memory card
2 Ethernet interface
3 USB data port
4 Control interface for extraction
5 Main switch
6 Power supply connection
▷ Make sure that the main switch [6] of the milling
machine is in the 0 position.
▷ Check if the SD memory card is properly seated
in the slot [1] on the rear side of the milling
machine.
▷ Connect the mains cable to power supply con-
nection [7] of the milling machine as well as to a
mains socket outlet.
4
49
