I
15
0

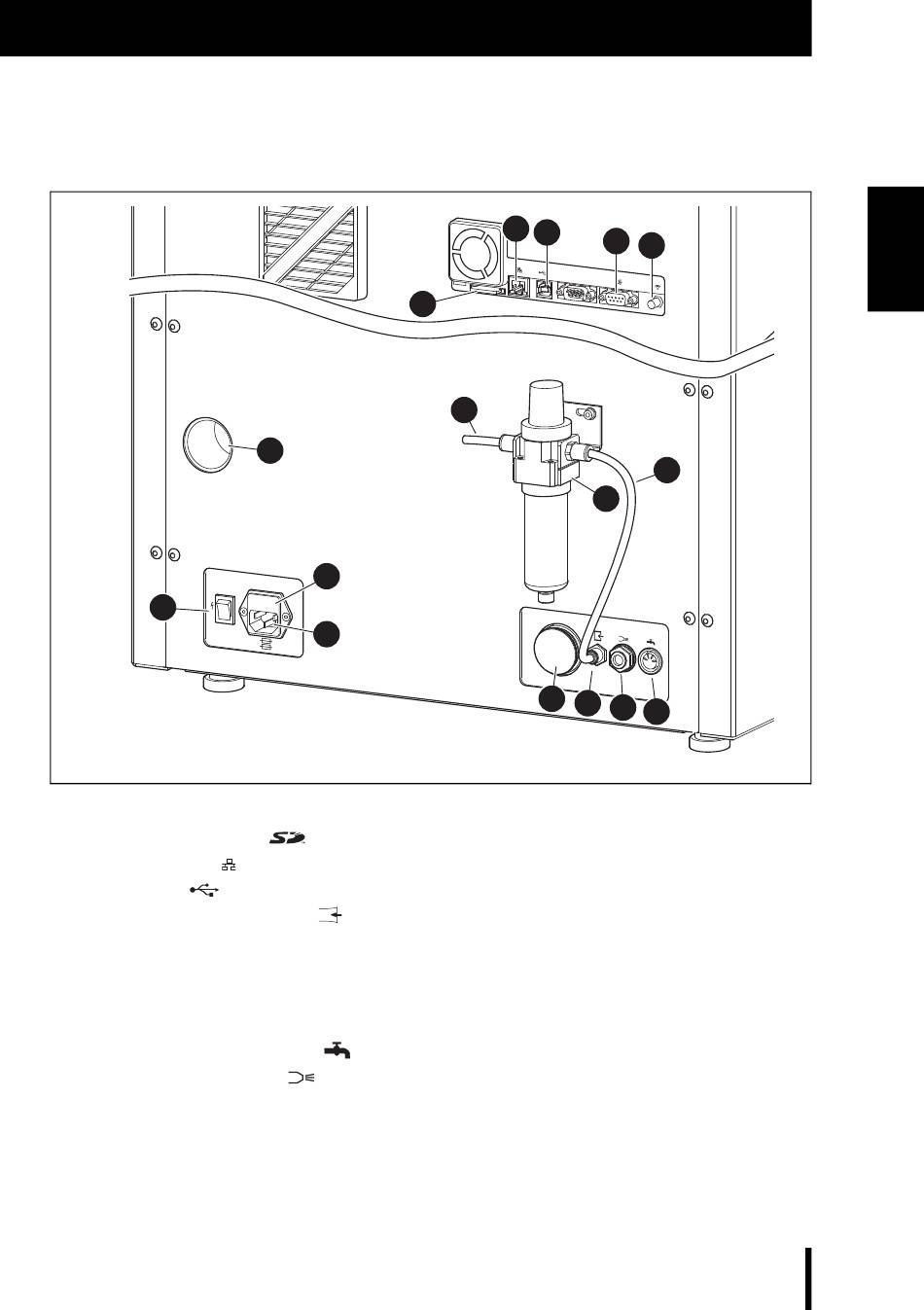

Fig. 2
Machine overview, rear
1 Slot for SD memory card
2 Ethernet interface
3 USB data port
4 Control interface for extraction
5 WLAN antenna
6 Compressed-air inlet
7 Compressed-air hose, 250 mm
8 Service unit
9 Control interface for supply unit
10 Connection, C/L supply line
11 Compressed-air connection, milling spindle
12 Connection, C/L drain
13 Power supply connection
14 Fuse compartment
16
14
10 0/1 15 /23
0V AC
13
23 0V
T3 .15 A
10 0/1 15 V
T6 .30 A
M A C H I N E S P E C I F I C A T I O N S
2
3
1
6
P = 6- 8 ba
12
11
15 Main switch
16 Extraction-hose connection
4
5
7
8
r
10
9
E N
43
