BH FITNESS S5RiB Recumbent Guide D'utilisation page 19

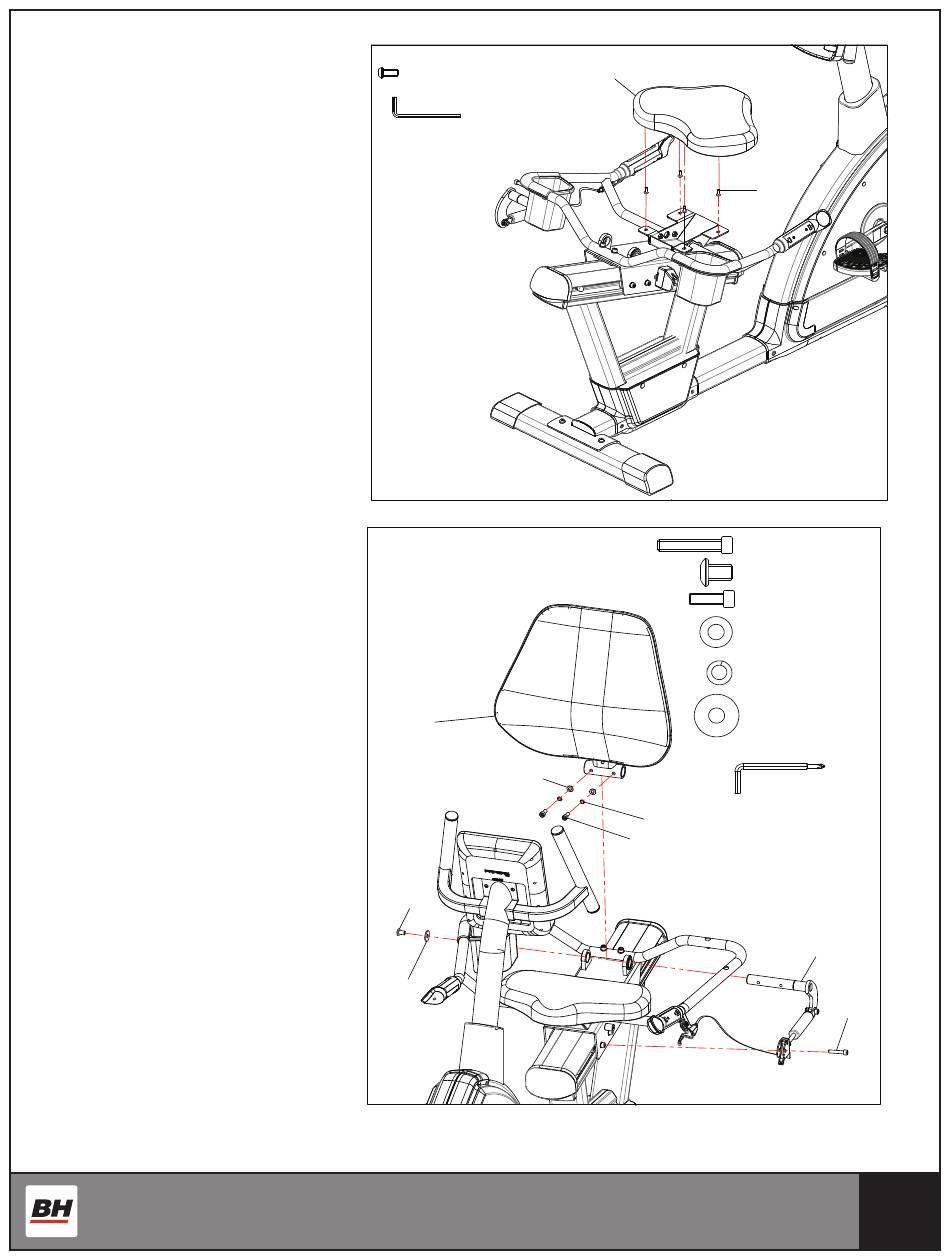

STEP 9
Attach the Seat (96) to the Seat
Slider with Allen screws (94).
STEP 10
1) Take the Seat Back (92) and align
its ends with the holes of the Seat
Slider.
2) Then insert the Gas Spring Set
(119) through both the Seat Back
(92) and the Seat Slider.
3) Align the screw holes of the Seat
Back and Gas Spring Set first, then
secure the Seat Back and Gas Spring
Set with Allen Bolt (126) and Flat
Washer (125).
4) Then secure all with Allen Bolt
(118), Spring Washer (63) and
Curved Washer (65).
5) Secure the other end of the Gas
Spring Set to the aluminum rail
with Allen Bolt (110).
94 - 4pcs
94 4 pcs
92
65
126
125
96
94
110 - 1pcs 110
126 - 1 pcs 126
118
118 - 2 pcs
65
65 - 2pcs
63 - 2pcs 63
125
125 - 1pc
63
118
1pcs
1pcs
2pcs
2pcs
2pcs
1pcs
119
110
