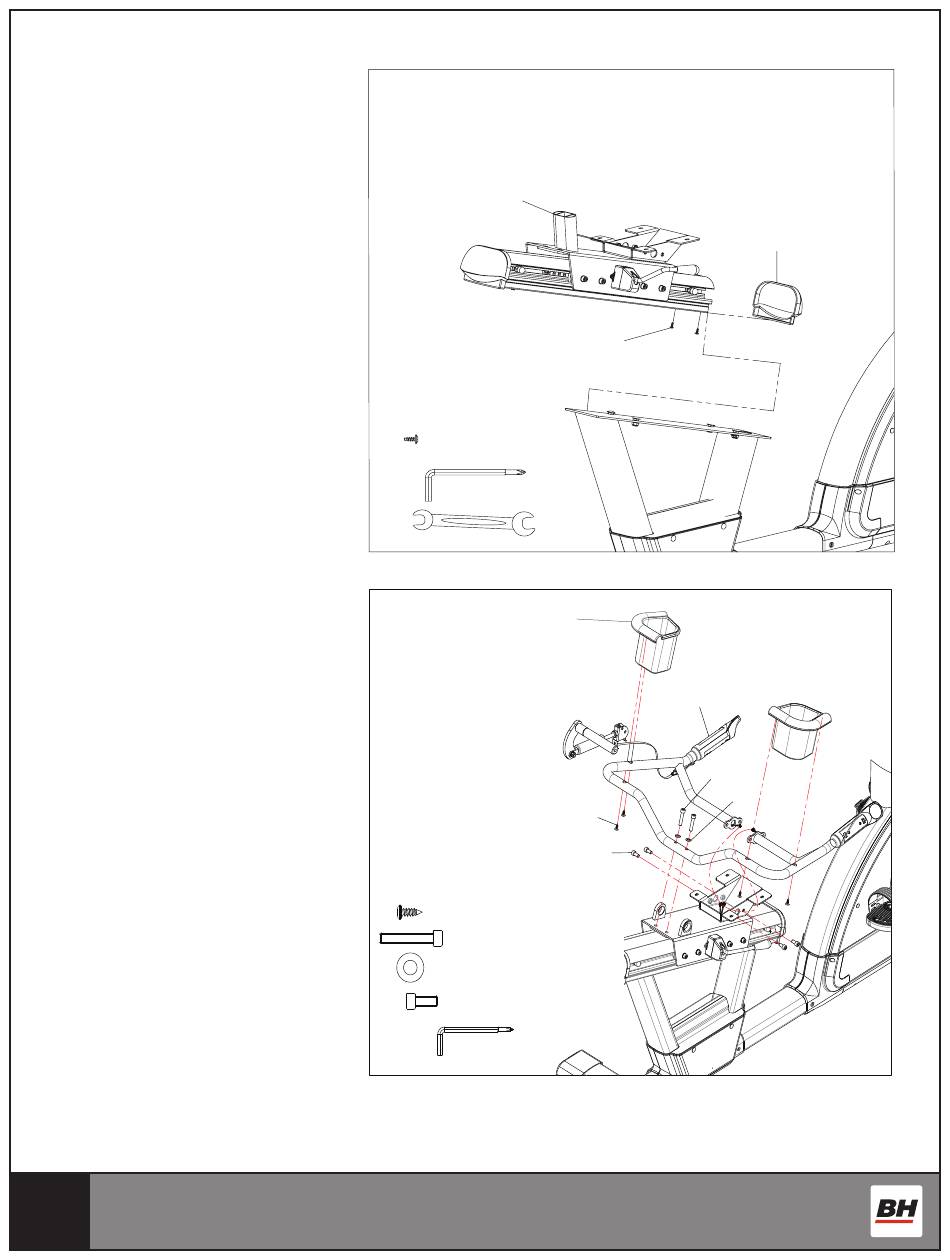

STEP 7
1) Connect the cables from the
aluminum rail into the frame.
2) Insert the head of the screws in
the slots of the rail and tighten the
nuts.
3) Place the end cap (74).
4) Mount the Aluminum rail (77)
to Main Frame with screws (75).
STEP 8
1) Place the handle bar (111) to the
saddle slider at the proper position.
2) Insert and connect the cables from
both sides of handle bar through the
middle hole of the Saddle Slider (see
drawing)
3) Secure the handle bar (111) with
Allen screws (110), Curved washer
(65), and Allen screw (107) on the
bottom.
4) Attach the bottle holder (60) to the
left and right side of the handle bar
with Philip screws (109).
18
77
75
75 - 2pcs
Φ4
75
60
109
107
109 - 4pcs
109 4pcs
110 - 2pcs
110 2pcs
65 - 2pcs
65 2pcs
107 - 4pcs
107 4pcs
74
111
110
65
