Correct use

The RPD15F - RPD25F tubular drives are designed for the exclusive purpose of operating shutters and sun-blind systems. They serve to open and close these
systems and replace the person that is usually operating the installation. Therefore, tubular drives may only be installed in faultless shutter- or sun-blind
systems. Rough-running systems have to be repaired. Replace defective parts. This guarantees safe operation and avoids damage during opening or closing.
Any other form of usage is deemed to be incorrect. Neither the manufacturer nor the supplier assumes any liability for personal injury, damage to property or consequen-
tial injury or damage occurring as a result of the use of the control units and / or drives for purposes other than those mentioned above or due to changes made to the
equipment affecting the safety of the given system. The details stipulated in the Operating Instructions in respect of the operation and repair of the system require strict
observance.
Neither the manufacturer nor the supplier assumes any liability for personal injury, damage to property or consequential injury or damage occurring as a
result of non-compliant actions. In compliance with standard EN 60 335-2-97 he cable connecting the drives to the mains cable must be laid internally. According to
DIN18073 shuter box lid must always be easily accessible and removable.

Performance features

Model Diameter
mm
RPD15F 45
RPD25F 45
Max. area (area = length x breadth)
RPD15F RPD25F
PVC 7,5m 10m
2
ALU 6m 8m
2
WOOD 3m 4,2m
2
AWNING 11,5m
1. INSTALLATION
Rough- in or install conduit pipe to the connector box for the electrical connecting line according to local building and electrical codes.
THE DRIVE IS PREMOUNTED. THE DESCRIPTION IS FOR CHECKING PURPOSES!

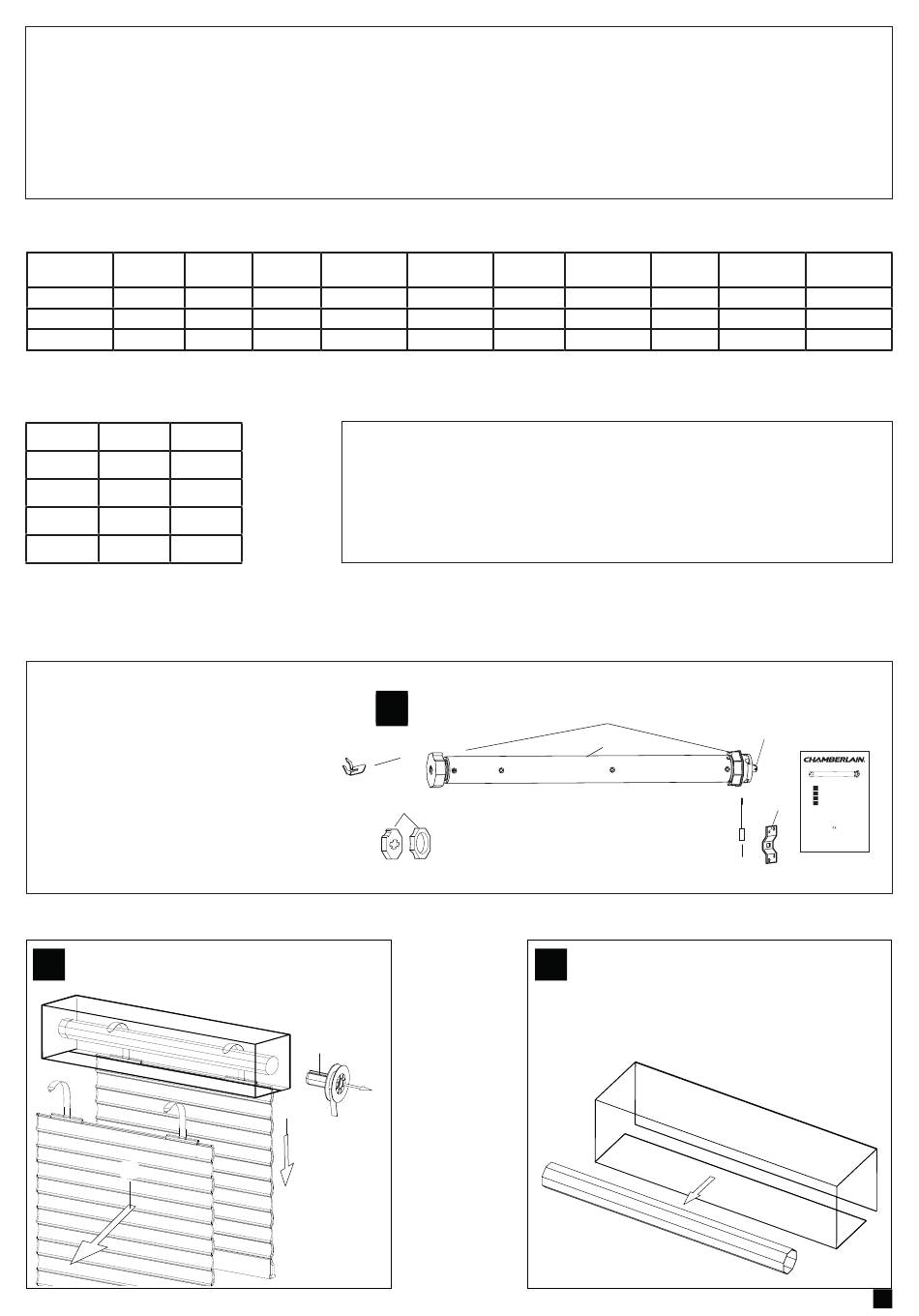

Carton Contents
1. Motor
2. Adjuster pin
3. Drive adapter safety catch
4. Square pin
5. Shaft adapter
6. Wall bracket
7. Manual
Fully unroll the shutter (a). Remove the shutter material
B
from the tube (b). Remove the manual control (c).
b
Operating
Torque Speed
Voltage
Nm rpm V
15 15 230
25 15 230
INSTALLATION PROCESS SEQUENCE AND STEPS
1. Install drive (installation)
2. Wire up and connect drive (motor connection)
3. Set limits of shutter (the remote control has already been programmed).
2
PLEASE NOTE: Should the UP / DOWN button function the wrong way round i.e. as DOWN / UP
button, wait until step 5 before changing it!
2
4. Insert shutter armouring (slats) and complete installation.
5. Change functionality of remote control (reverse direction of movement (UP/DOWN) on the remote
2
control and programme new remote controls).
2
c
a
Current
Frequency
input
Hz A
50 0,60
50 0,83
A
A
3
5
C
15
Motor Operating
StandBy
Rating time
W W
133 1,4
191 1,4
5
1
2
Remove the tube.
Limit Switch
Range
min revolution
4 25
4 25
4
7
