ZIPPETTE CLASSIC
Instructions for Use
Operating instructions
Priming Reservoir
It is recommended that you use the VWR squat anti-tip reservoir with safety side fill neck, available in 1.4
litre and 2.5 litre capacities, see page 10 for ordering details. Fill the reservoir to approximately 50 mm below
side neck aperture.
Place a container under the Zippette
scale to enable free movement of the piston. To move the cursor, simply press the button (7) on the cursor
sideways and slide up or down. The cursor will lock automatically into position as soon as you release the
button. Prime the unit with a few gentle up and down strokes, taking the piston right down and lifting it up
about 25 mm. Repeat until steady, bubble free flow is dispensed.
Dispensing
After priming, the piston (4) should be left in the fully down position. To dispense a precise volume of fluid,
adjust the cursor (6) so that the cursor line aligns to the volume required. Draw in the required volume of
fluid by lifting the piston slowly until the stop. To dispense, push the piston assembly down fully, slowly, until
it stops, allowing the liquid to be collected in an appropriate vessel. When the Zippette
is recommended that the anti-drip tap is closed.
User Calibration Procedure
Fine Adjustment
The figures quoted on our Test Certificate apply to the calibration of the Zippette
Classic
Zippette

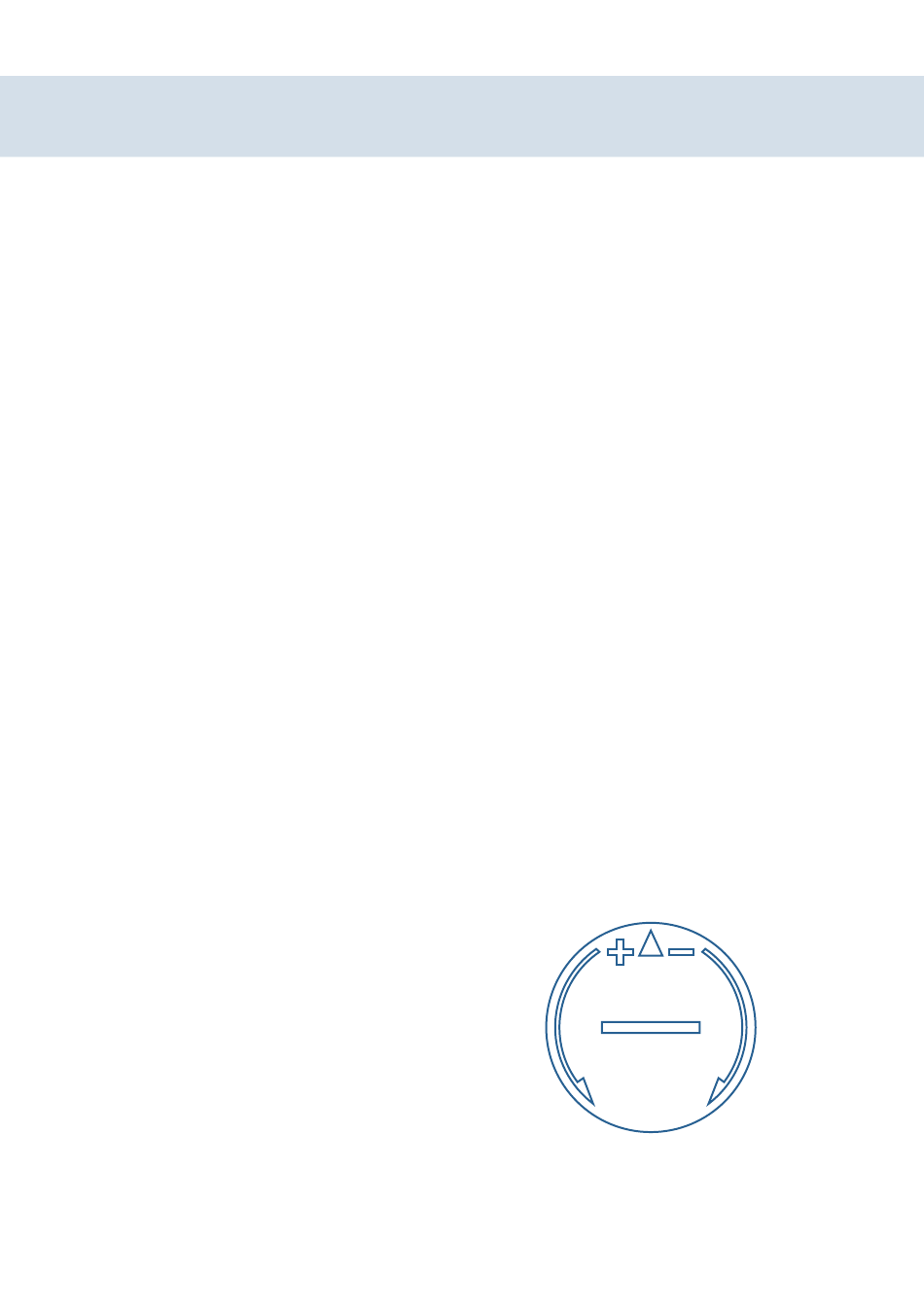

adjustment cap enables the user to fine calibrate for accuracy. Using the adjustment disc
tool that is held on the rear of the Zippette
on the printed top cap insert:-
Anti-clockwise to increase volume Clockwise to decrease volume
The graduations on the adjustment ring increase or decrease by the following volumes:-
Zippette
Classic
Zippette
Classic
Zippette
Classic
Zippette
Classic
Classic
Zippette
6
|
VWR
INSTRUCTION MANUAL
Classic
dispense tube (14). Move the cursor (6) to the bottom of the
Classic
50 ml
0.1 ml per line
30 ml
0.1 ml per line
10 ml
33 µl per line
5 ml
17 µl per line
2.5 ml
8 µl per line
|
