WARNING:
To reduce the risk of fire, electrical shock or injury when using your air conditioner, follow these basic precautions:
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.

Tools and Parts

Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools listed
here.
Tools needed
Flat-blade and Phillips
screwdrivers
Pliers
Level

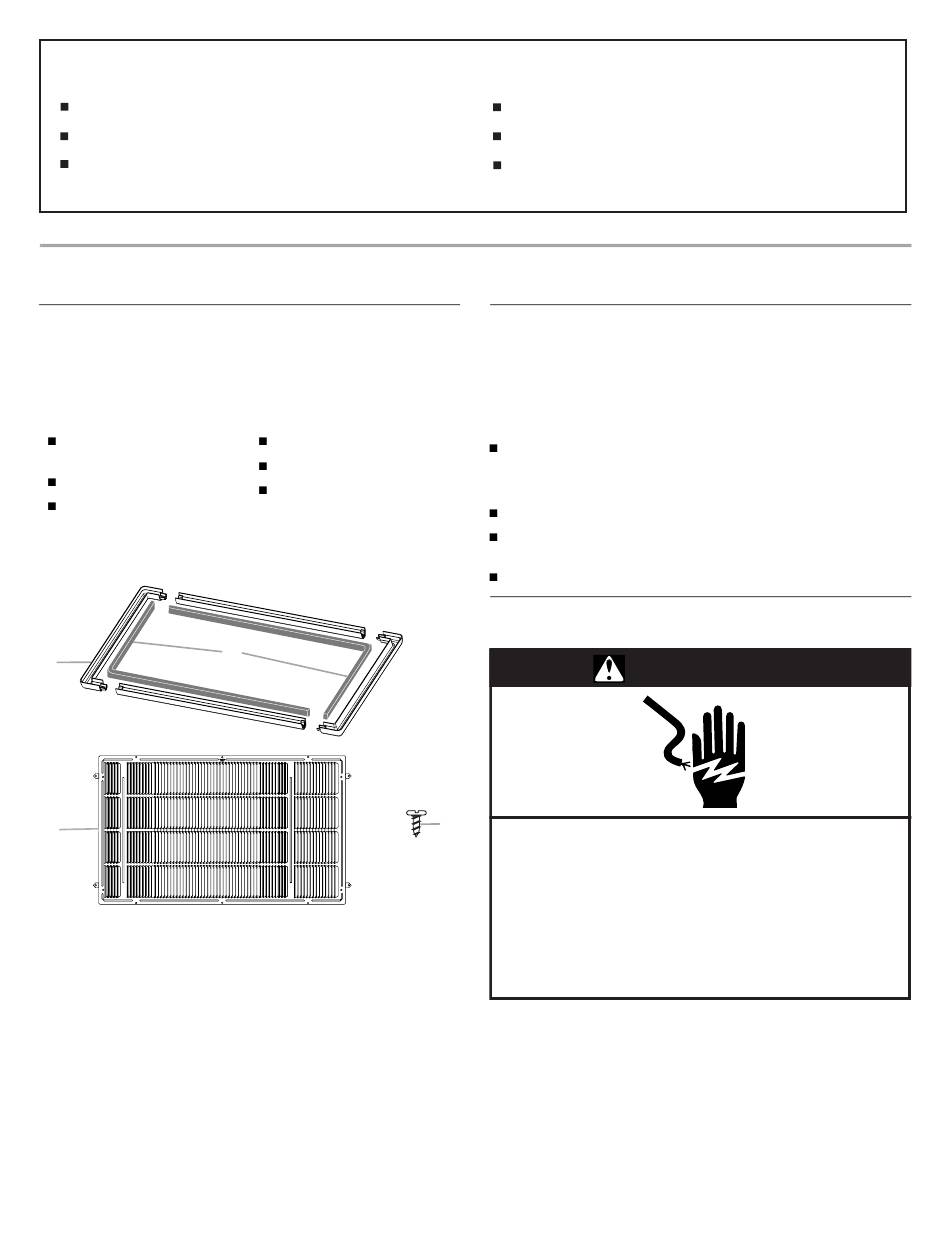

Parts supplied
Check that all parts are included in parts package.
A
C
A. Trim frames (4)
B. Insulating foam seals (2)

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

INSTALLATION REQUIREMENTS

Tape measure
Drill and ¹⁄₈" or smaller bit
Utility knife
B
C. New grille
D. #8 - 32 self-tapping screws (6)
Do not use an extension cord.
Unplug air conditioner before servicing.
Use two or more people to move and install air conditioner.

Location Requirements

IMPORTANT: Observe all governing codes and ordinances.
Check the location where the air conditioner will be installed.
Proper installation is your responsibility. Make sure you have
everything necessary for correct installation.
The location should provide:
Grounded electrical outlet within 4 ft (122 cm) of where the
power cord exits the air conditioner.
NOTE: Do not use an extension cord.
Free movement of air in room to be cooled.
A large enough opening for the air conditioner and sleeve
(sold separately).
Adequate wall support for weight of air conditioner.

Electrical Requirements

D
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in
death, fire, or electrical shock.
The electrical ratings for your air conditioner are listed on the
model and serial number label. The model and serial number
label is located behind the front panel on the front flange above
the coil area.
WARNING
3
