7

Appendix

In this appendix we have collected information for you that may be of
interest to the experienced user or should help you with problems.

7.1 Operating the LH101-R with cable

Alternatively, the LH101-R can also be used with a cable. For this, the
switch on the back must be in the "Off" position.
To do this, use the coiled connection cable supplied with the LH101-
R.
Plug the RJ12 connector into the socket at the bottom of the LH101-R.
Plug in the 5-pin DIN connector
into the 5-pin
-
LZV200/LZV100/LZ100
or, if you have already installed XpressNet (XBUS) cabling on your
system
into a connection plate LA152 (item no. 80152).
-
7.2 Setting the XpressNet address on the LTM101
receiver
Since up to four LH101-R wireless handheld controllers can be
operated with one LTM101 receiver, each LTM101 occupies four
XpressNet addresses. In radio operation, the XpressNet address is
assigned to each connected LH101-R handheld controller via the
LTM101. Two address ranges can be selected on the LTM101, the
range 24 to 27 and the range 28 to 31.

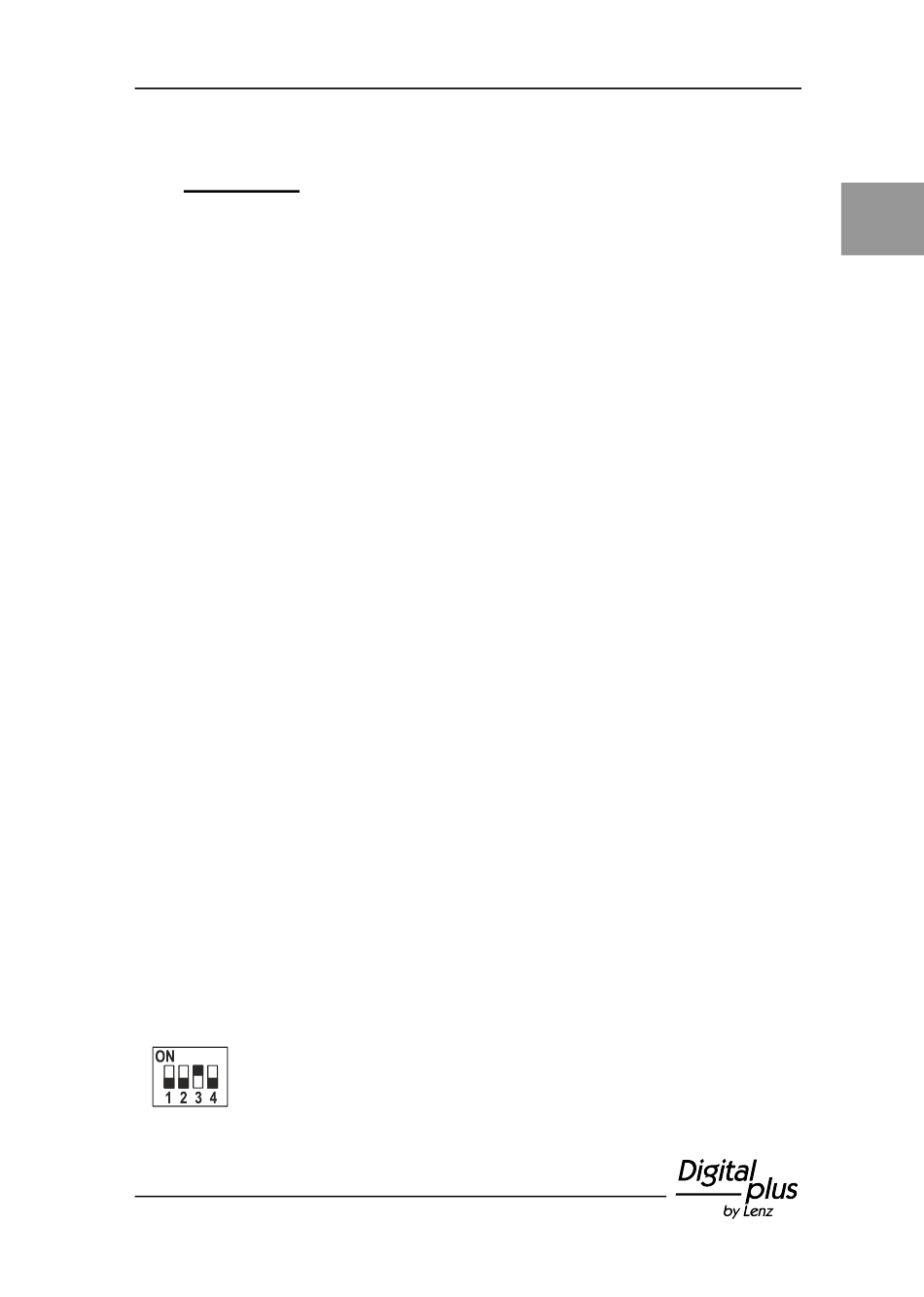

The setting of the ranges is done with the help of a DIP switch on the
circuit board of the LTM101.
To do this, clip open the housing and remove the printed cover. On
the circuit board you will see the so-called "DIP switch". The
XpressNet address is set with switch 3:
Position "ON"
DIN socket on
XpressNet addresses 24 to 27 are
set
the back of
37
E
your
