1.4 UC95-OBF cylinder description

UC95-OBF is a hydraulic outboard front mount cylinder which has been designed and manufactured to be used
as a component in the hydraulic steering systems, as described in the previous paragraph.
The cylinder is installed to the tilt tube rod of the available engines on the market as shown in the attached doc-
ument "Application guide". It is possible to meet all the different cylinder applications due to the three different
link arms and a proper spacer kit. For the dual engine application, the single cylinder must be mounted with a

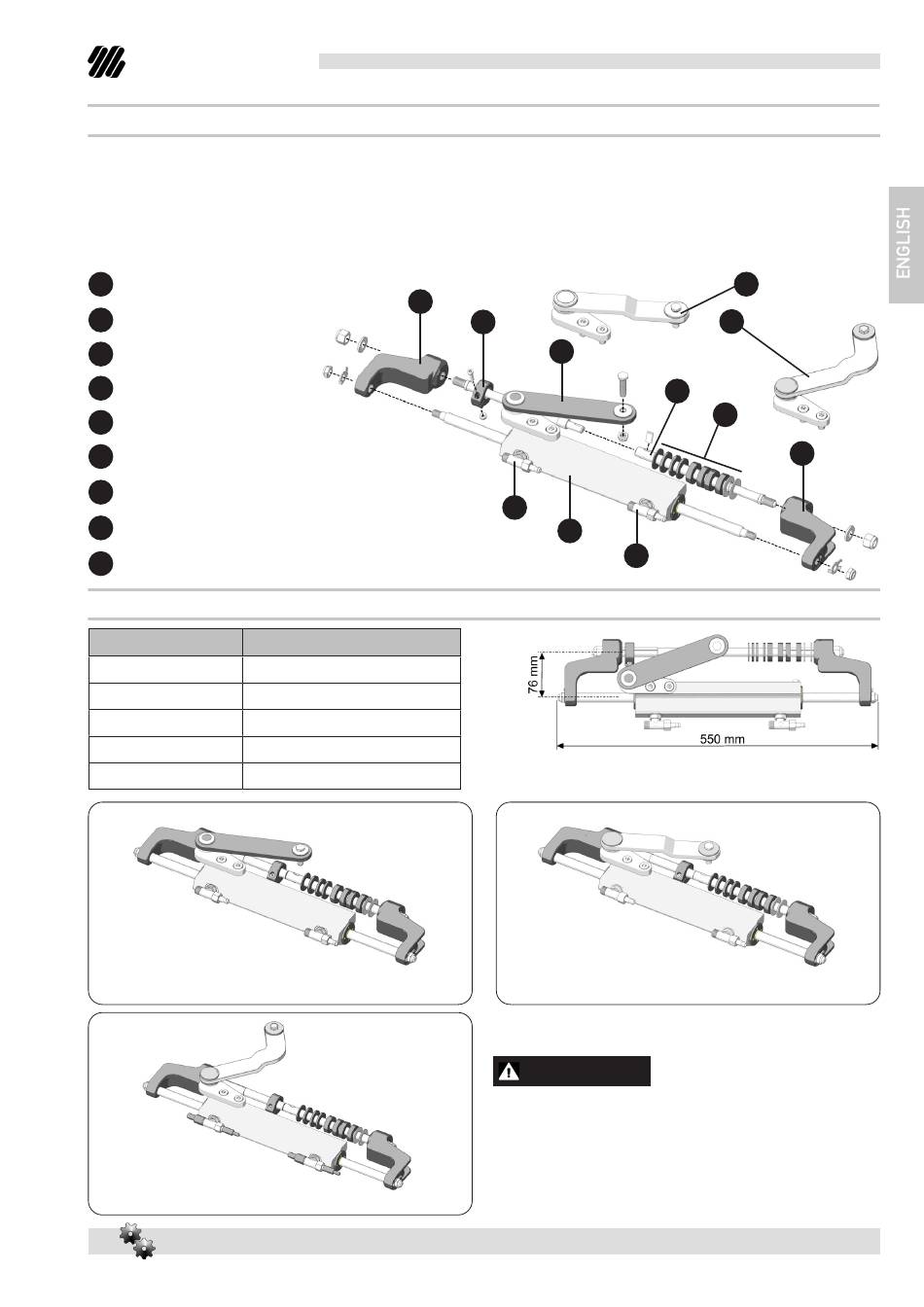

tie bar (see par. 1.3). The following picture shows the main cylinder components:
1 Cylinder body
2 Fittings and bleed valves
3 Bull horns
4 Tilt tube rod
5 Spacers
6 Adjustment collar
7a Straight link arm (UC95-OBF/1)
7b
Shaped link arm (UC95-OBF/2)
7b
Curved link arm (UC95-OBF/3)

1.5 Technical features

SPECIFICATIONS
Volume
Max. cylinder thrust* 354 Kg - 780 lbs (@70 bar)
Inside diameter
Stroke
Oil
UC95-OBF/1
UC95-OBF/3
3
UC95-OBF/1 -/2 -/3
94 cc - 5.7 cu. in
30 mm - 1.18"
186 mm - 7.3"
OL150 Ultraflex
HYDRAULIC CYLINDER FOR OUTBOARD ENGINE
Installation and Maintenance Manual
6
7a
2
1
2
UC95-OBF/2
CAUTION
* The cylinder thrust shown above is a theoretical value
calculated considering a pressure system of 70 bar (1000
psi). This value is not the one considered for the system
normal use but for the system use in extreme conditions.
7b
7c
4
5
3
