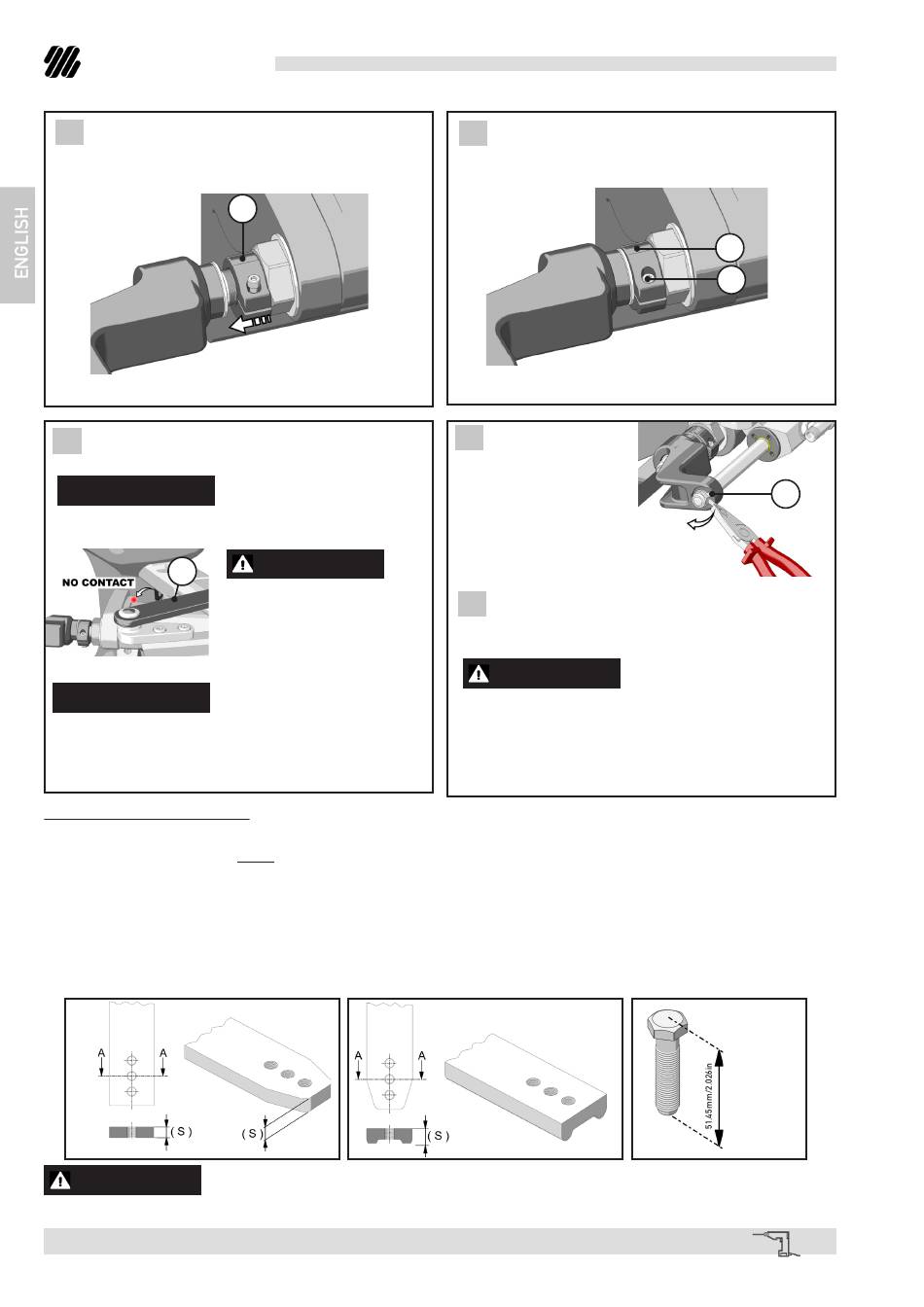

17 Unscrew the adjustment collar (10) and bring
it into contact with the stainless washer, until the
clearance is eliminated,
18 Check the correct cylinder installation by moving
manually the engine on the right and on the left.
NOTICE
The rotation must be as symmetric as possible so that
the steering angle is the same on both sides.
16
NOTICE
Otherwise it is necessary to modify the installation, by
changing the thickness of the spacers and by repeating
the procedure from point 13.
NOTICE FOR INSTALLATION
The bolt identified with the reference 73584U (Pict.C) is the connection screw between the cylinder's link arm and
the engine's tiller arm that must be used with the following engines:
- SUZUKI 100-115-140 (2008 - to date).
- Engines with the tiller arm shaped like in Pict.A and thickness (S) between 10 and 22 mm (0.4" and 0.85").
For the other engines with tiller arm shaped like in Pict.A and thickness (S) max. 10 mm (0.4"), please use the
standard bolt (shorter than ref. 73584U ).
When the link arm is shaped like in Pict.B the KIT ref. 41954W (not included in the present kit), containing the
dedicated spacer, must be used.
In case the tiller arm differs from the above measures, please contact our after sales service.
Sec.A-A
CAUTION
After installation, check that the nylon part of the self-locking nut is tightened on the screw thread.
page 14
of 79 -
HYDRAULIC CYLINDER FOR OUTBOARD ENGINE
10
WARNING
The engine must stop through
the cylinder end stroke without
coming into contact with the
mechanical stop (16) on the
engine.
PICT.A
Sec.A-A
Installation and Maintenance Manual
19 Tighten the set screw (8) on the adjustment collar
(10) with a torque of 3[Nm] (2 [lb∙ft]).
20 Bend the tabs of
the lock washers (14)
bringing them into con-
tact with the screw head
and taking care not to
damage the bull horns
while using the pliers.
21 Check again the correct engine movement both
during the right/left rotation and during the tilting.
WARNING
In this phase clearance should be enough to avoid
frictions but it should not be excessive since it could
cause engine instability. In case of contact with the
transom, stop the installation and contact the spe-
cialized staff.
PICT.B
10
8
14
PICT.C
(ref. 73584U)
