1 PRODUCT DESCRIPTION

1.1 Product description and recommendations for use

The B501 single engine and the B502 dual engine controls are designed as a single lever dual function per
engine. They are specifically designed to operate with outboard, stern drive (I/O) and inbord marine
propulsion engines. The controls can operate with all Ultraflex cables except the C4; K59 kit is included
with both the controls, necessary to install Ultraflex C2, C8, C0, and Mach 0 cables.
For all the other cables the following kits are available on demand:
- K 60 for cables Ultraflex C5 - C16 - MACH 5;
- K 61 for cables Ultraflex C22;
- K 62 for cables Ultraflex C36 - MACH 36.
- The cables C14 and MACH14 require no installation kit.
B501 B502

1.2 Dimensions

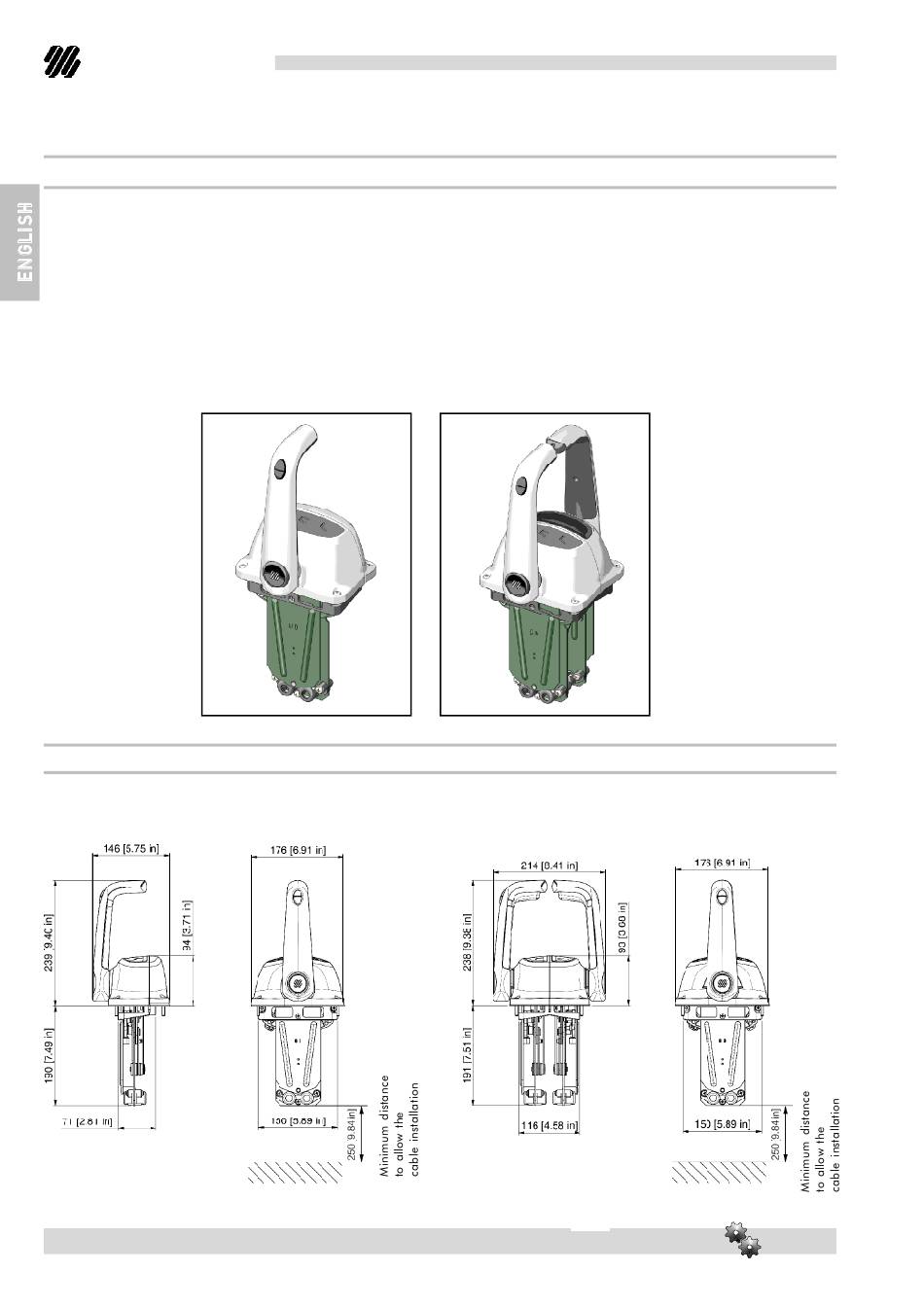

The pictures below show the lever control B501 and B502 dimensions.
page 6
of 63 -
SINGLE LEVER CONTROL B501 AND B502
