Cooling Valve Positions; Cutting Position; Cleaning Position - Struers Discotom-6 Mode D'emploi

Cooling Valve Positions

Cutting Position

Cleaning Position

Discotom-6
Instruction Manual
The flushing gun, and a valve for cooling and cleaning, are located
on the left hand side of the cutting machine.
During cutting the valve is turned clockwise (mark at the top) and the
water is directed to cool the cut-off wheel. For cleaning the valve is
turned counter-clockwise (mark at the bottom) to flush the cutting
chamber.

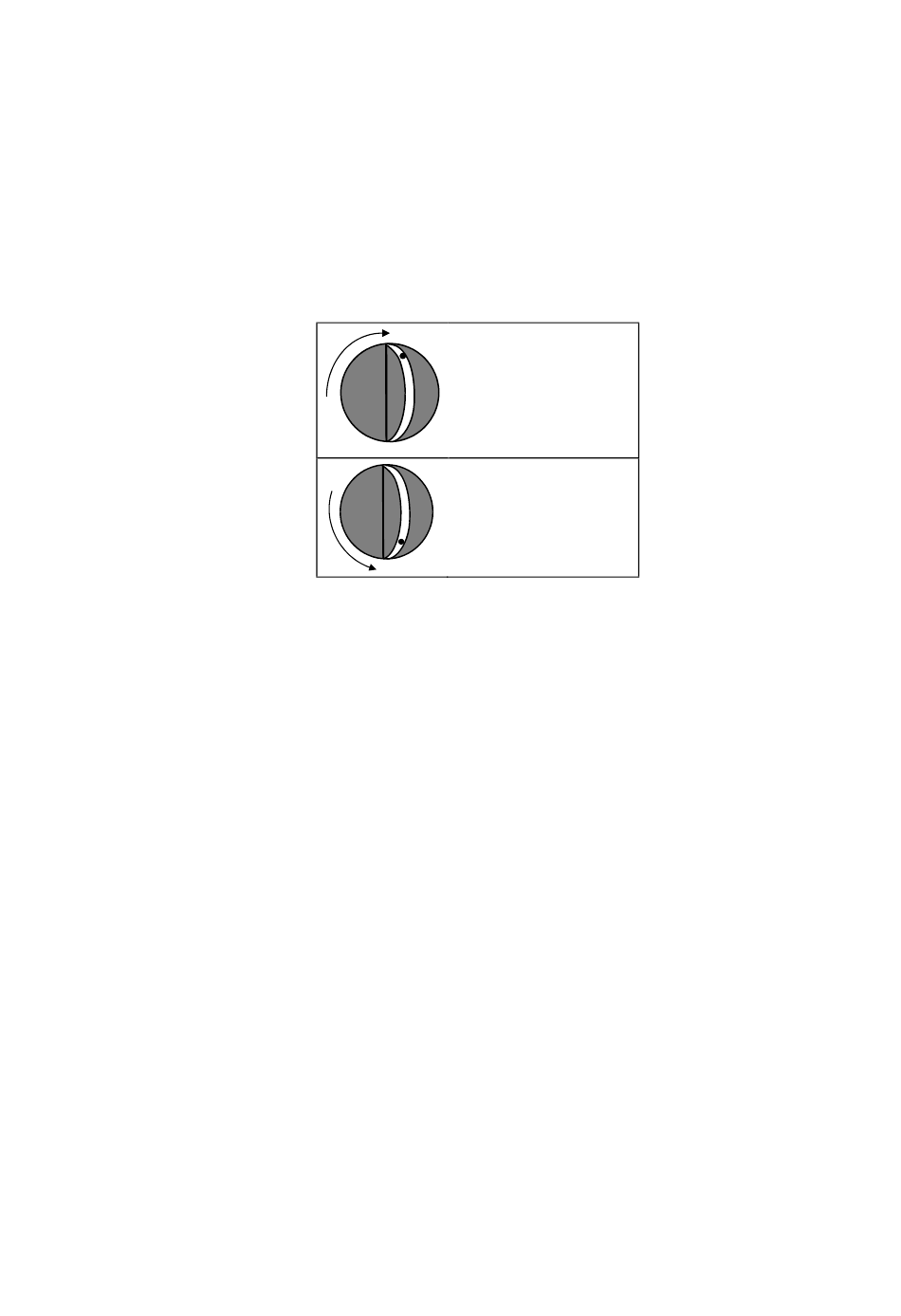

Turn the knob clockwise
to vertical position to
cool the cut-off wheel.
Turn the knob counter-
clockwise to vertical
position for flushing the
cutting chamber.
