Cooling Valve Positions

Flush hose and
Cooling valve
8
Discotom-50
Instruction Manual

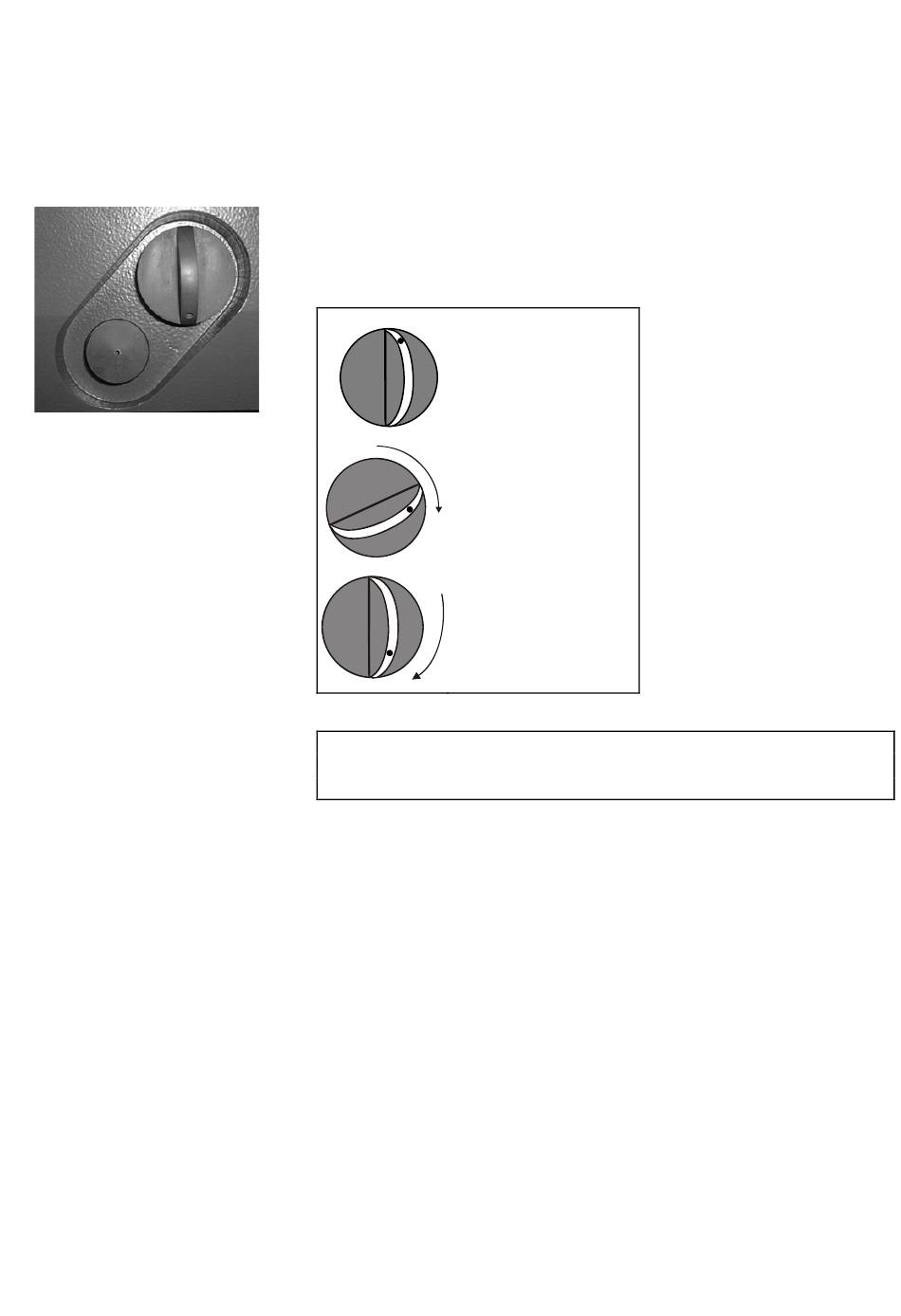

The flush hose, and a valve for cooling and cleaning, are located
on the front of the machine.
During cutting, the valve is placed in the vertical position to cool
the cut-off wheel. During cleaning the valve is turned clockwise to
regulate the water flow of the hose.
For cut-off wheel cooling,
position the knob
vertically with dot
upwards.
Turn the knob clockwise
to activate flushing
mode. Adjust flow while
flushing the cutting
chamber.
Turn the knob clockwise
to vertical position for
flushing the cutting
chamber with maximum
flow.
After cleaning, turn cooling valve back to vertical position. START
not be activated unless the cooling valve is in the cutting position.

Cutting position

Cleaning positions

Please Note
s
can
