Installing

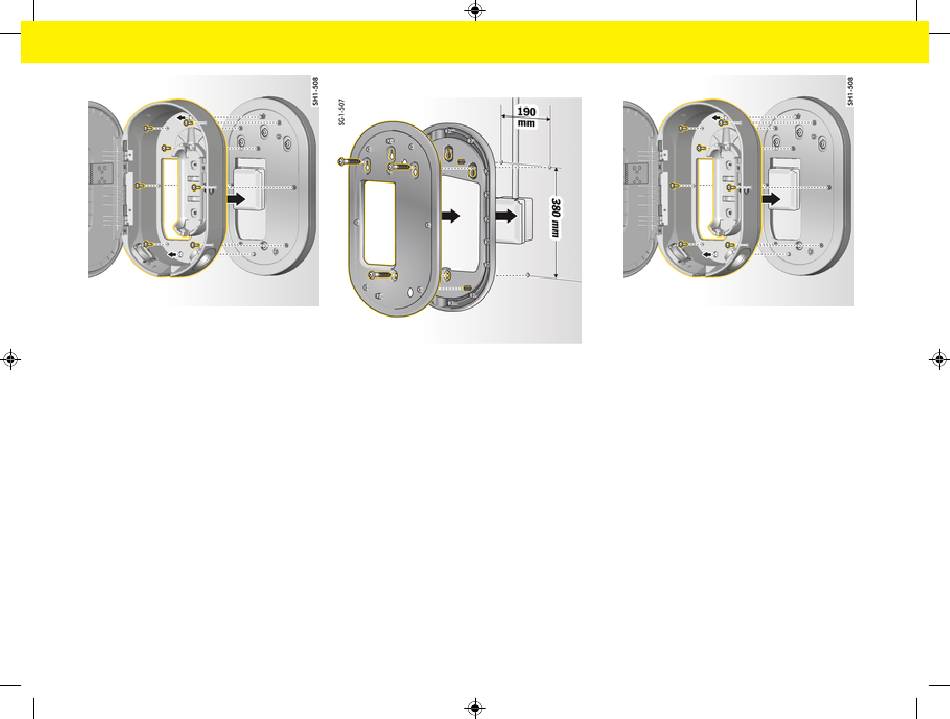

Fig. 11 Screwing charging dock to mounting
plate
4. Screw the charging dock to the mounting plate.
16

Installation with spacer

Fig. 12 Drilling dimensions
1. Mark the drill holes on the wall.
2. Drill the mounting holes and insert wall plugs.
3. Screw the mounting plate together with the
spacer to the wall.
Fig. 13 Screwing charging dock to mounting
plate
4. Screw the charging dock to the mounting plate.
