Device Description

3.1

Device Overview

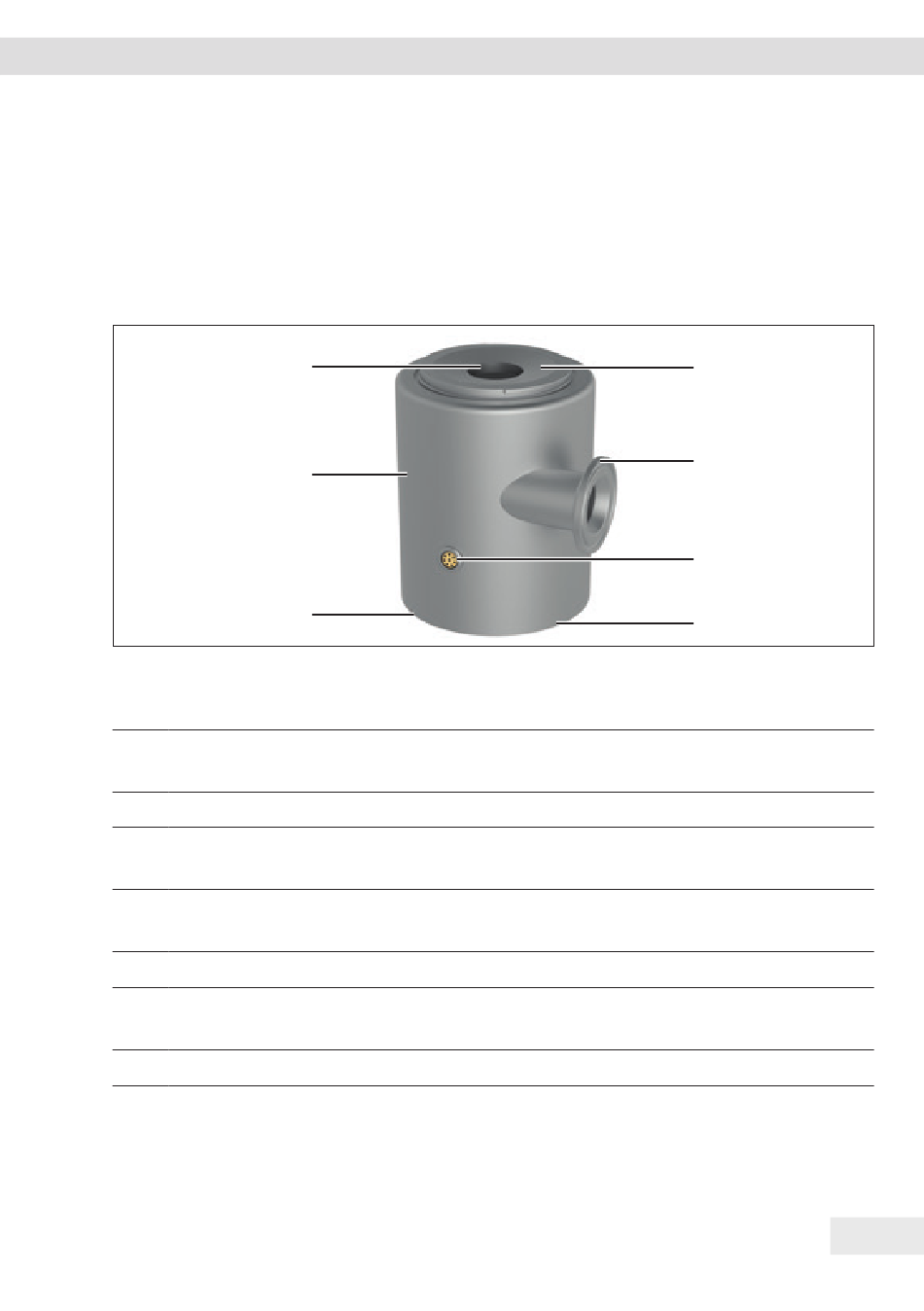

Fig . 1: Sampling head with bayonet connection (example)
No.
Designation
1
Filter holder
2
Air outlet
3
Connection for
command unit
4
Device base
(ring-shaped)
Manufacturer's ID label Is affixed to the base plate . Not depicted .
5
6
Sampling head
7
Air Inlet
7
6
5
Description
Is designed as a bayonet connection or as a Tri-Clamp
connection (TC 50 .5) .
Is designed as a Tri-Clamp connector (TC 50 .5) .
Accommodates the command unit connection cable .
Protects the sampling head against slipping .
Not depicted .
Includes the device motor, fan and control-relevant
components .
MD8 Airscan Sampling Head Installation Instructions
Device Description
1
2
3
4
7
