ENGLISH
KNOW YOUR MACHINE

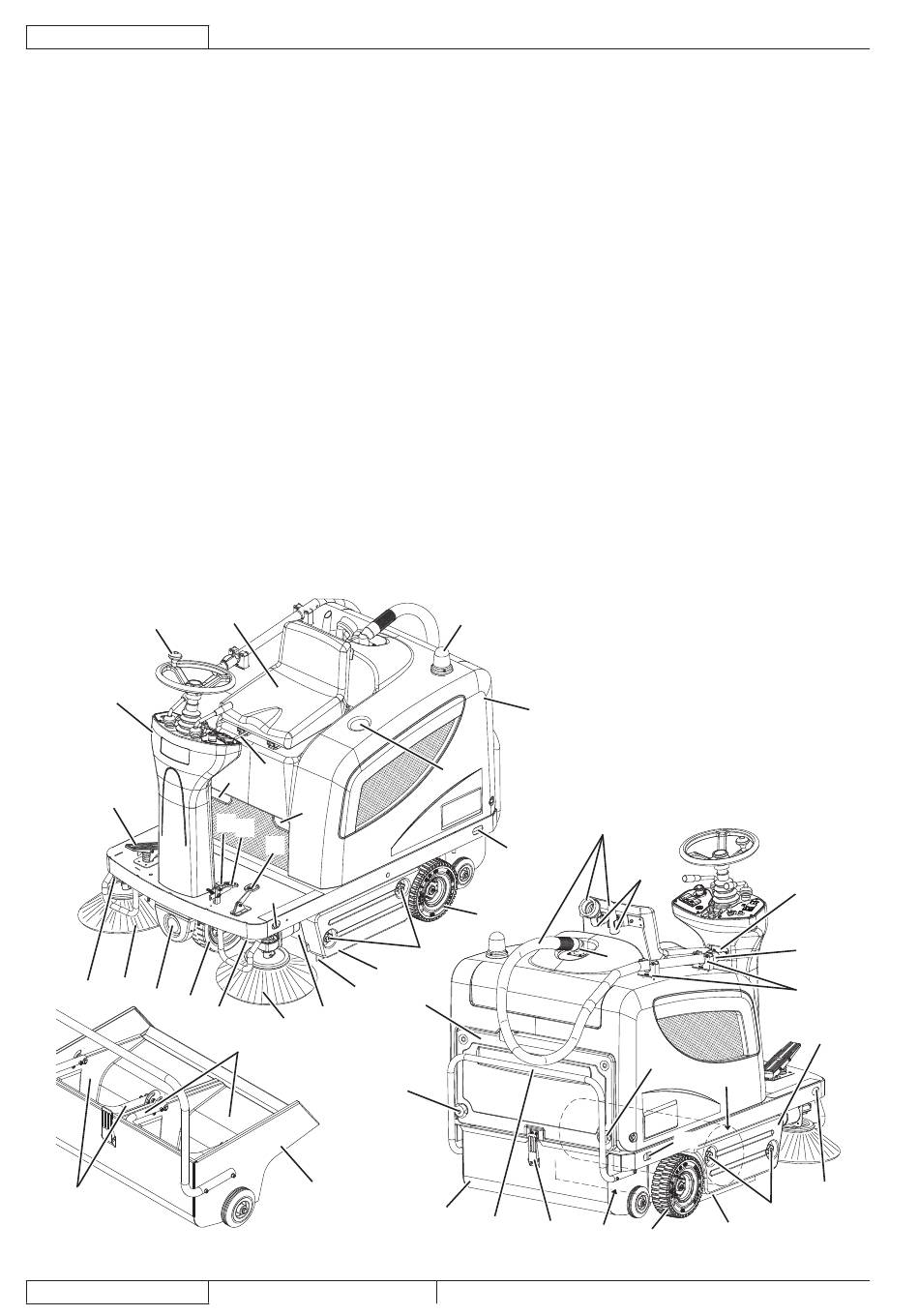

MACHINE NOMENCLATURE
1.
Steering wheel
2.
Forward/reverse gear pedal
3.
Service brake pedal
4.
Parking brake lever
Press the brake pedal (3), then use the lever (4) to switch
from the service brake to the parking brake.
5.
Front skirt lifting pedal
6.
Can holder
7.
Hood
8.
Rear driving wheels on fi xed axle
9.
Front steering wheel
10.
Right side broom
11.
Left side broom
12.
Main broom
13.
Left side skirt
14.
Right side skirt
15.
Front skirt
16.
Rear skirt
17.
Hopper (empty it when it is full)
18.
Hopper fastening hook
19.
Hopper handle
1
27
2
10
29
28
9
36
6
INSTRUCTION FOR USE
25
31
38
38
4
3
5
39
13
30
15
11
36
17
1464035000(1)2009-06
20.
Left door (to be opened for performing maintenance
procedures only)
21.
Door knobs
22.
Left door (for main broom removal)
23.
Door knobs
24.
Flashing light (always on when the ignition key is turned to
"I") (optional)
25.
Driver's seat with safety microswitch
26.
Additional hole for manual vacuum system kit (optional)
27.
Adjustable steering column
28.
Working light (optional)
29.
Right side broom height adjusting knob
30.
Left side broom height adjusting knob
31.
Seat longitudinal position adjusting lever
32.
Vacuum fi lter compartment cover
33.
Cover knobs
34.
Manual vacuum system (optional)
35.
Manual vacuum system fasteners
36.
Internal containers with handle for dumping (optional)
37.
Serial number plate/technical data/conformity certifi cation
38.
Hood opening handles
39.
Machine lifting anchors
24
7
6
39
8
21
20
32
33
17
19
18
Terra™ 4300B
34
35
26
33
12
39
14
16
8
37
34
35
22
39
23
P100344
