Make all machine adjustments or maintenance with the
machine unplugged from the power source.

3.3 Remaining hazards

When using the machine according to regulations some
remaining hazards may still exist.
The rotating workpiece can cause injury.
Workpieces that are inhomogeneous or weak can explode
when being processed due to centrifugal force.
Only process selected woods without defects.
Unbalanced workpieces can be hazardous.
Injuries can occur when feeding tooling, if tool supports are
not correctly adjusted or if turning tools are blunt.
Risk of kickback. The tooling is caught by the rotating
workpiece and thrown back to the operator.
Thrown workpieces and workpiece parts can lead to injury.
Dust and noise can be health hazards. Be sure to wear
personal protection gear such as safety goggles and dust
mask. Use a suitable dust collection system. Work in a well-
ventilated area.
The use of incorrect mains supply or a damaged power cord
can lead to injuries caused by electricity.

4. Machine specifications

4.1 Machine description

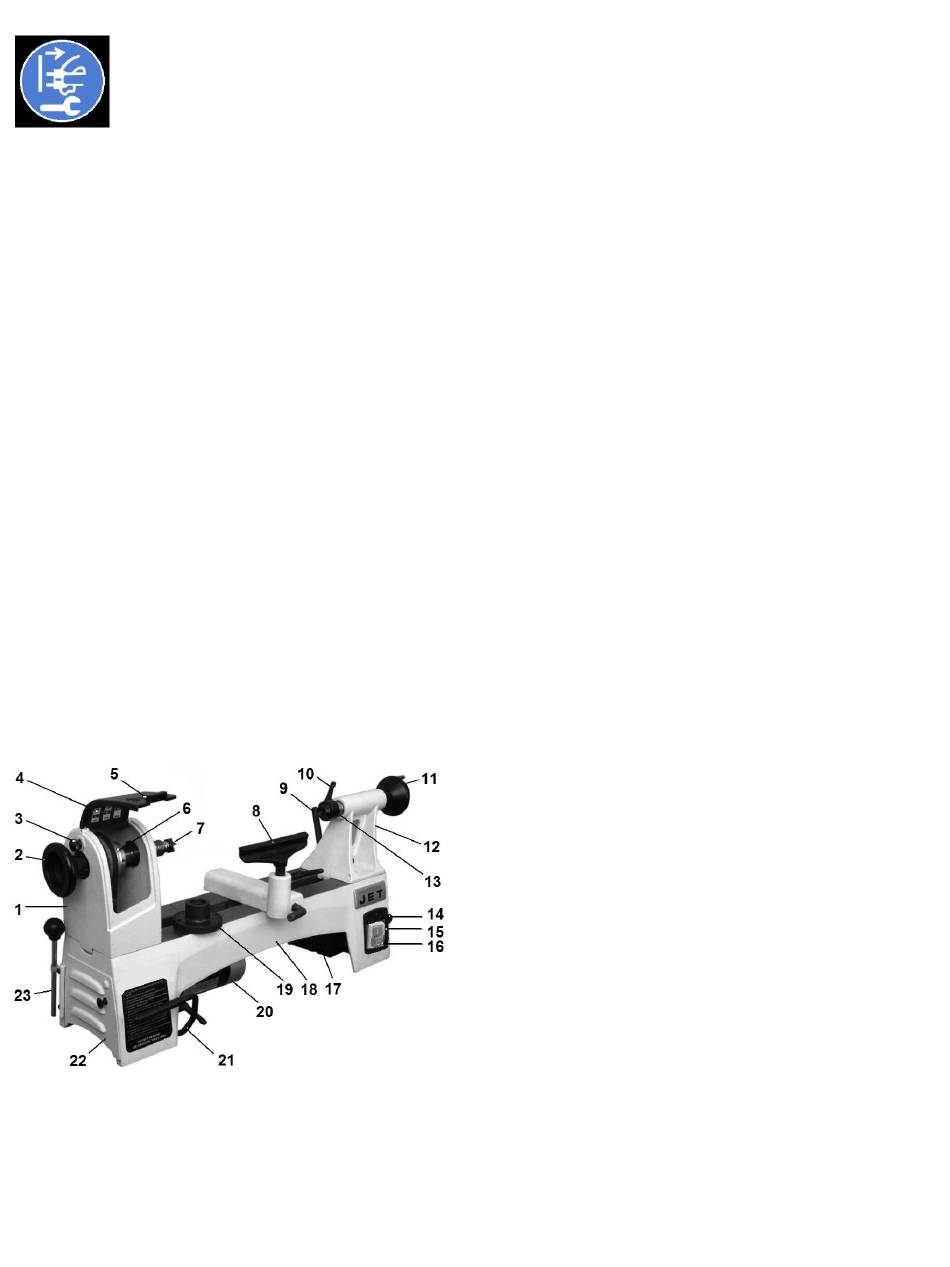

Fig 1 (JWL-1015VS shown)
1 Headstock
2 Spindle handwheel
3 Index pin
4..Speed chart
5..Upper pulley cover
6 Spindle pulley
7 Spur centre
8 Tool rest
9 Tailstock locking handle
10 Quill locking handle
11 Tailstock handwheel
12..Tailstock
13 Live centre
14 Variable speed control knob (JWL-1015VS only)
15 LED light display (JWL-1015VS only)
16 On/Off switch
17..Controller assembly
18 Bed
19 Face plate
20 Motor
21 Belt tension handle
22 Lower pulley cover
23 Knockout rod

4.2 Technical data

Swing over bed
Swing over tool rest base
Centre distance
Spindle nose
Headstock spindle taper
Spindle indexing
Spindle hole diameter
Tailstock spindle taper
Tailstock hole diameter
Tailstock ram travel
Centre above workbench
Bed width
Overall (LxWxH)
Mains
Motor power
Reference current
Extension cord (H07RN-F):
Installation fuse protection
Isolation class
JWL-1015:
Number of spindle speeds
400, 700, 1000, 1500, 2200, 3300 rpm
Net weight
JWL-1015VS:
Number of mechanical speeds
Spindle speed range L
Spindle speed range M
Spindle speed range H
Net weight

4.3 Noise emission

Acoustic pressure level
(EN ISO 11202):
Idling
In operation
254mm
186mm
385mm
M33x3,5 DIN 800
MT 2
24x15°
9,5mm
MT 2
9,5mm
50mm
297mm
127mm
885x300x370mm
1~230V, PE, 50Hz
0.37kW (0.5 HP)
2.5 A
3x1.5mm²
10A
I
6
35 kg
3
200 - 1050 rpm
300 - 1750 rpm
600 - 3600 rpm
33 kg
LpA 67,4 dB(A)
LpA 76,5 dB(A)
