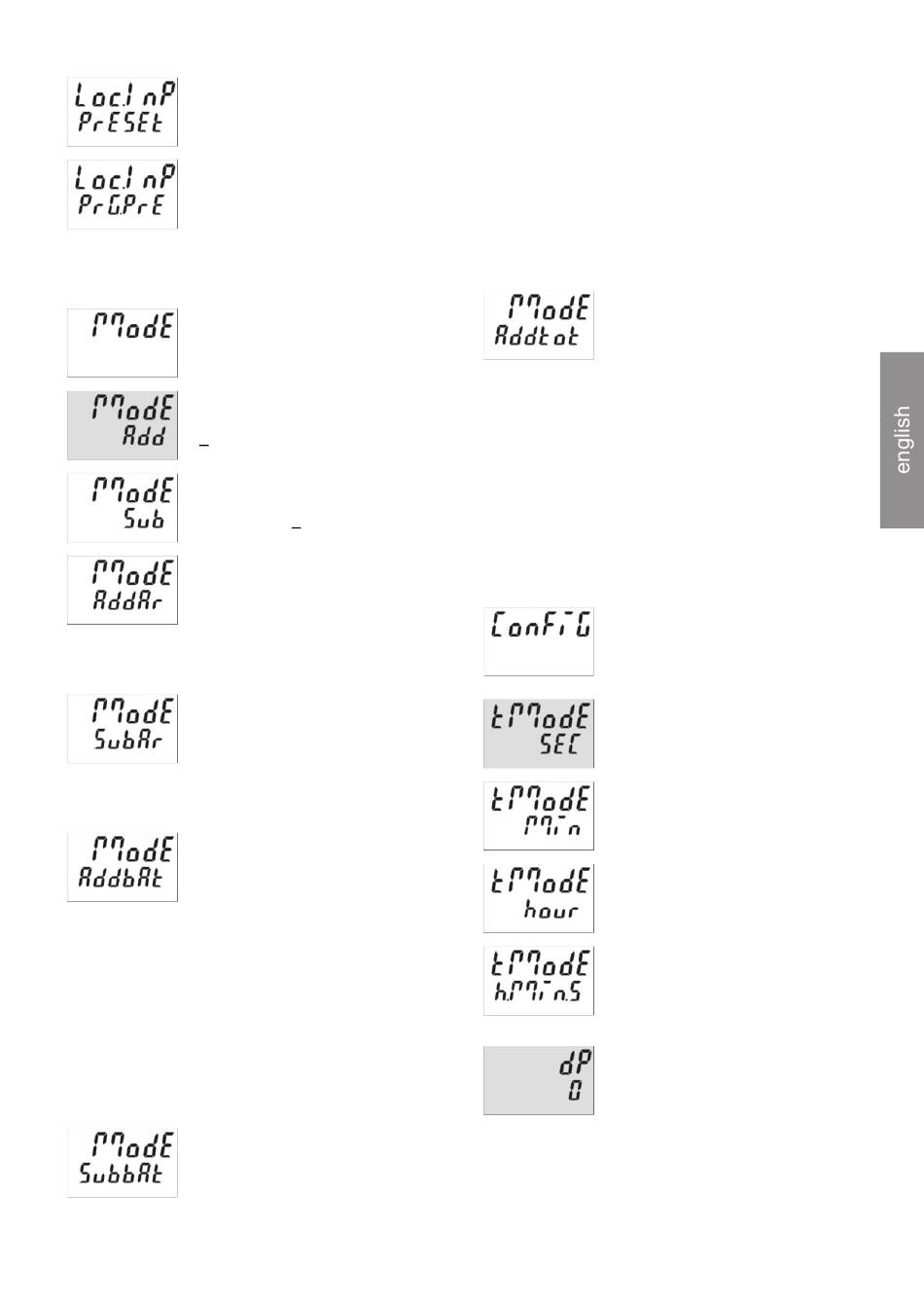

When the Lock input is activated
the setting of the preset values is
inhibited.
When the Lock input is activated
the setting of the preset value
and the programming are both
inhibited.
7.8.6.2
Mainmenu for the output operations
Mainmenu for determining the
operation of the output
Count mode ADD
Output active when count status
> preset value
Reset to zero
Count mode SUBTRACT
Output active when
count status < 0
Reset to preset value
Count mode ADDING with
automatic reset
Output (timed signal) active
when count status = preset value
Automatic reset to zero when
count status = preset value
Reset to zero
Count mode SUBTRACTING
with automatic reset
Output (timed signal) active
when count status = 0
Automatic reset to preset when
count status = 0
Reset to preset value
Count mode ADDING with
automatic reset and Batch
counter
Output (timed output) active
when main counter = preset
value
Automatic reset to zero when
main counter = preset value
Batch counter counts the number
of automatic repetitions of the
preset
Manual reset sets both counters
to zero
Electrical reset sets only the
main counter to zero
Count mode SUBTRACTING
with automatic reset and Batch
counter
Output (timed signal) active
www.kuebler.com
when main counter = 0
Automatic reset to preset when
main counter = 0
Batch counter counts the number
of automatic repetitions of the
preset
Manual reset sets main counter
to preset value and batch counter
to zero
Electrical reset sets only the
main counter to preset value
Count mode ADDING with
automatic reset and Total
counter
Output (timed signal) active when
main counter = preset value
Automatic reset to zero when
main counter = preset value
Total counter counts all the count
pulses from the main counter
Manual Reset sets both counters
to zero
Electrical reset sets only the
main counter to zero
7.8.6.3
Mainmenu for configuration
Mainmenu for matching the time
ranges and display
Unit of time
Unit of time: seconds
Decimal point setting determines
the resolution
Unit of time: minutes
Decimal point setting determines
the resolution
Unit of time: hours
Decimal point setting determines
the resolution
Unit of time: Hrs. Min. Sec.
Decimal point setting (Resolution)
Decimal place
(determines the resolution)
0
0.0
0.00
0.000
no decimal place
1 decimal place
2 decimal places
3 decimal places
