Start delay
Programmable from 00.0 to
99.9 s
At the start of a measurement
the measurement results within
this time-period are ignored.
Waiting time
Waiting time Programmable from
00.1 to 99.9 s. This value
specifies how much time should
elapse, after the last valid edge,
before zero is to be displayed.
Display colour (for device 6.92x.x1x3.xx0)
Display colour
Upper line
Lower line
Display colour
Upper line
Lower line
7.8.5.3
Preset 1
See below 7.8.6.5

7.8.6 Timer

7.8.6.1
Mainmenu for the Signal and
Control inputs
Mainmenu for programming the
signal and control inputs
Input polarity
PNP: switching to Plus
for all inputs in common
nPn: switching to 0 V
for all inputs in common
Filter for the signal inputs Inp A and Inp B
for electronic control of the
signal inputs
for mechanical control of the
signal inputs(for control with
mechanical contacts)
Page 12

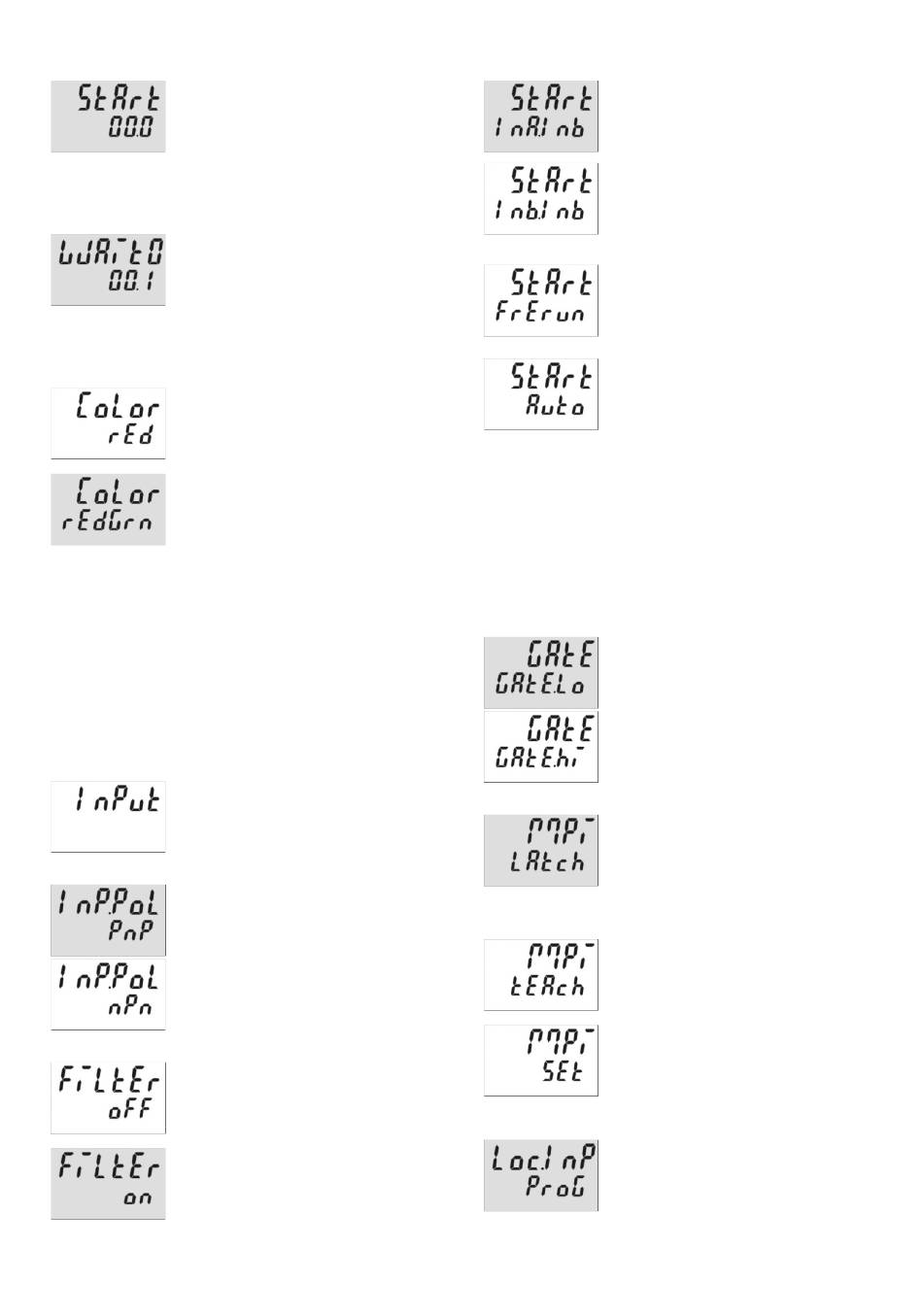

Input mode Time measurement
red
red
red
green
Gate control for Timing
User input
Lock input
Start: Edge to Inp A
Stop: Edge to Inp B
Start: 1. Edge to Inp B
Stop: 2. Edge to Inp B
Timing can only be controlled via
the Gate input
Inp A and Inp B: no function
The timer is reset by means of a
RESET (to zero when adding, to
preset when subtracting) and
then starts timing again.
Timing is stopped with adding
operations when preset is
reached. Timing is stopped with
subtracting operations when zero
is reached. A RESET during the
timing process also causes this
to stop.
Inp A and Inp B: no function.
Timing takes place when the
Gate input is not active.
Timing takes place when the
Gate input is active
When the MPI input is activated
the display is "frozen" and
remains "frozen" until the MPI
input is deactivated.
Internally the preset timer
continues counting.
When the MPI input is activated
the current time value will be
adopted as the new preset value.
See also 7.9
When the MPI input is activated
the timer will be set to the value
specified in the parameter SEtPt.
See also 7.10
When the Lock input is activated
the programming is inhibited.
