Information for the installer
1
Description
Two-point capillary tube controller with thermal return
and compensation for installation in storage heater.
Controller with mains on/off switch and auxiliary heat-
ing on/off switch.
Controller setting range
Max. switching capacity (230V), fan
Max. switching capacity (230V),
auxiliary heating
2
Scope of supply
Fully wired unit installation kit
Adhesive connection diagrams
Installation and instruction manual
Accessories pack consisting of:
Rotary knob
2-pin terminal strip
Identification plate
Cable ties
Fixing screws
3
Installation
3.1
Information about installation
ATTENTION!
The room temperature controller cannot be used in
conjunction with the communication module SES KM1
and the water protection installation kit!
NOTE
NOTE
The room temperature controller may only be installed
if the following requirements are met:
- Compliance with minimum clearances as specified in
installation manual.
- Only 1 storage heater installed per room.
- No tile cladding on storage heater.
NOTE
NOTE
Ideally it should be installed at the same time as the
storage heater. Before starting installation make sure
the entire storage heater is de-energised.
www.dimplex.de/en
3.2
For detailed disassembly instructions, refer to installa-
tion manual for storage heater.
Loosen and remove air outlet guard.
Loosen and remove right and left side panels.
Where necessary: Loosen front panel, swivel out and
approx.
remove.
10° - 30°C
Press out cover caps for switch group and rotary knob.

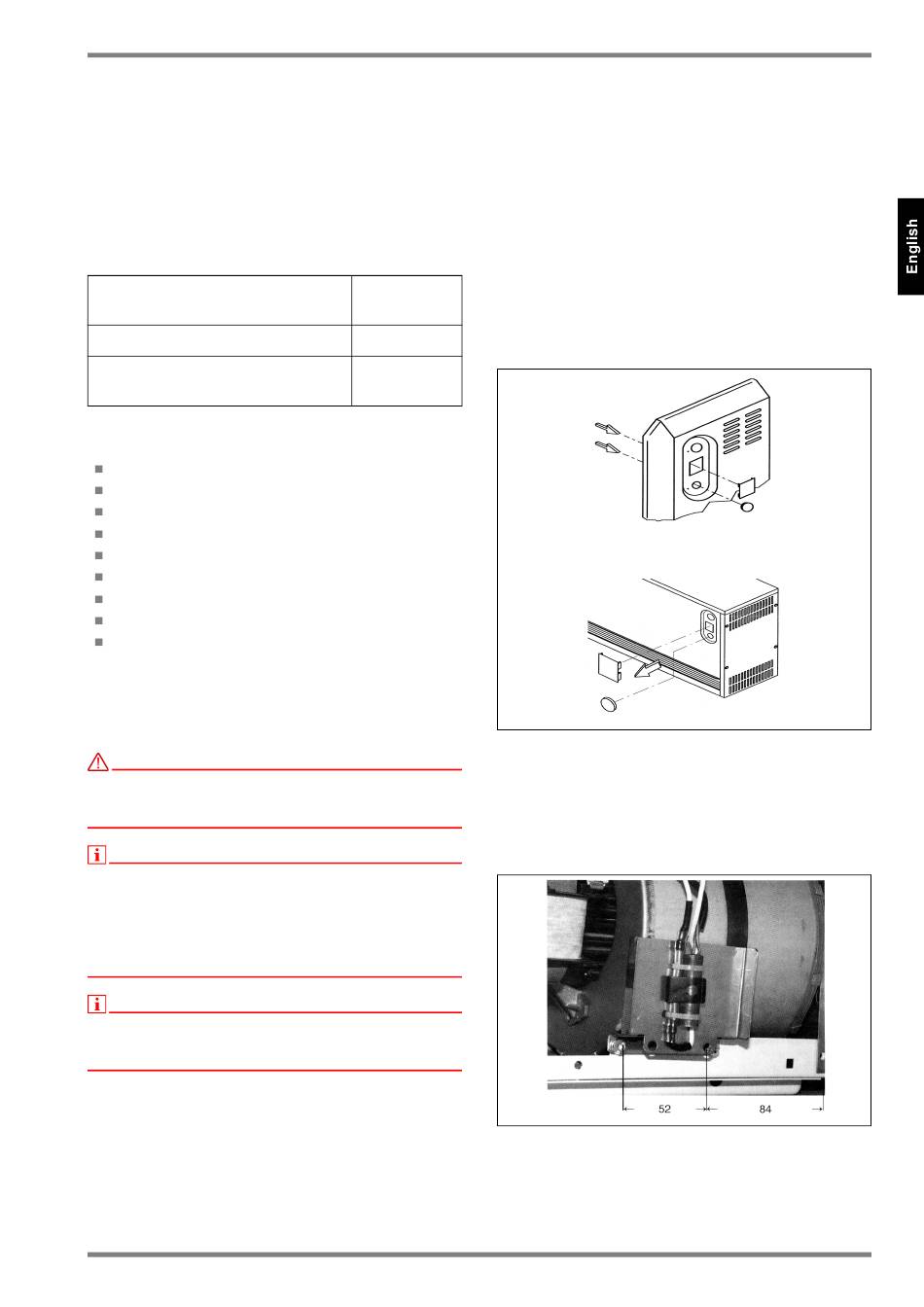

Fig. 1
10A
10A
Fig. 1: Remove cover caps
Carefully insert sensor and screw on to base rim of
storage heater.
On units with a production date of FD78... the fixing
holes must be drilled (
Fig. 2: Sensor position ESS...K, VFDi..., VFMi...
459270.66.03 · 07/14/C
Disassembly
∅ =
3.5mm)
RTEV 99
EN-9
