RTEV 99

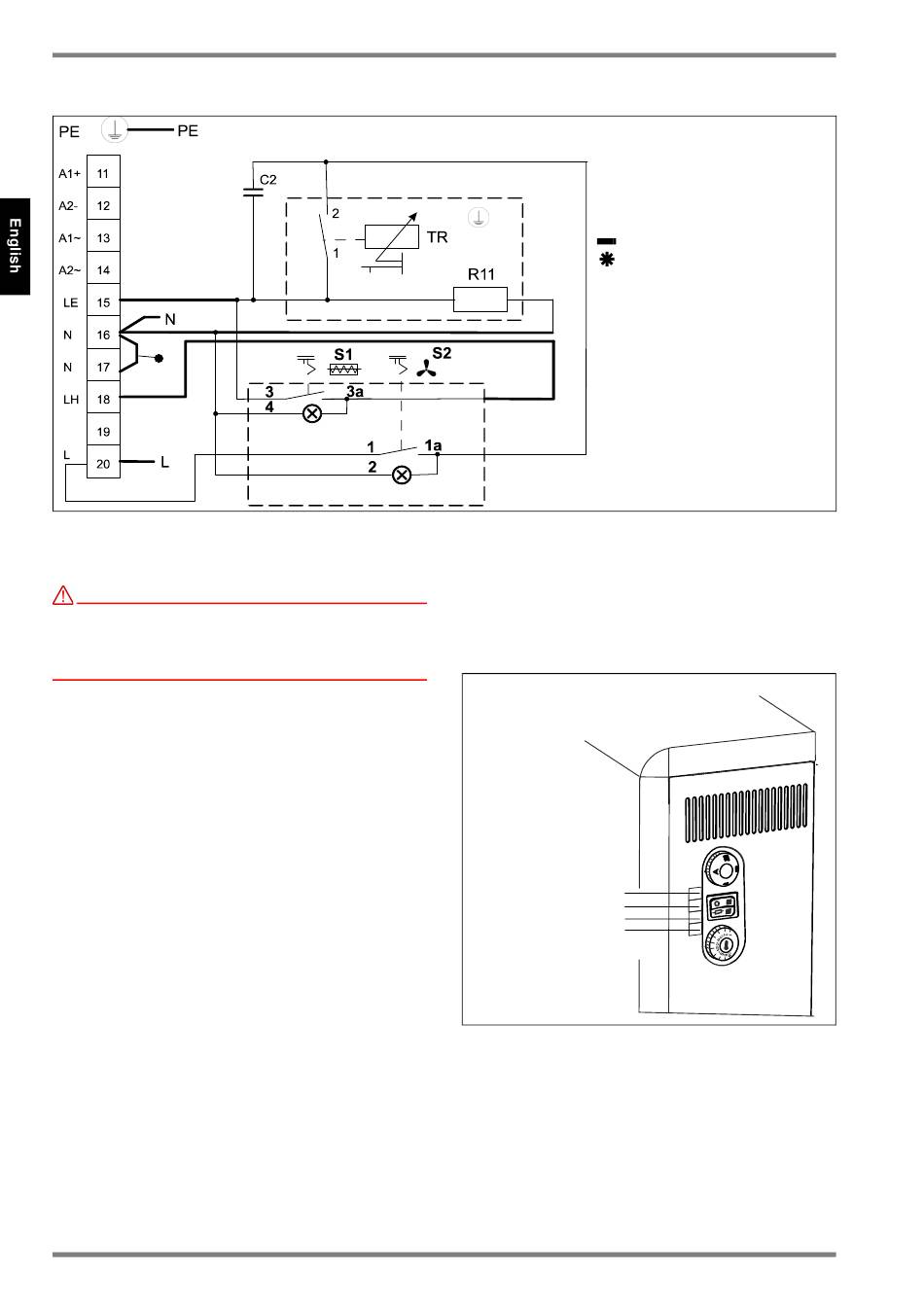

Fig. 10: VFDi..., VNDi..., VTDi..., FSD..., FZD..., VFR...
ATTENTION!
Secure the cable harness of the room temperature
controller with the cable ties provided such that it
cannot come into contact with heating element ends or
move towards openings on the unit!
3.6
Affixing circuit diagram
Various adhesive circuit diagrams are supplied with the
supplementary kit. Refer to the unit type plate and
check carefully which circuit diagram applies (type and
production date (FD)). Affix circuit diagram to inside of
right side panel above the diagram already in place.
Glen Dimplex Deutschland GmbH
Am Goldenen Feld 18
D-95326 Kulmbach
Subject to modifications without prior notice
EN-12
3.7
Final installation
Refit front panel, side panels and air outlet guard. Fit
the identification plate provided. Fit the rotary knob for
the room temperature control.
Mains on/off switch
Additional heating
Room temperature
Fig. 11: Identification plate for controls
Tel.: +49 (0) 9221 709 564
Fax: +49 (0) 9221 709 589
E-mail: 09221709589@dimplex.de
www.dimplex.de/en
459270.66.03 · 07/14/C
TR -Temperature controller
C2
Noise suppression capacitor
R10 - Series resistor
R11 - Thermal resistor
S1 - Auxiliary heating switch
S2 - Mains on/off switch
- Connected by installer
Depends on model
Charge
www.dimplex.de/en
