RTEV 99

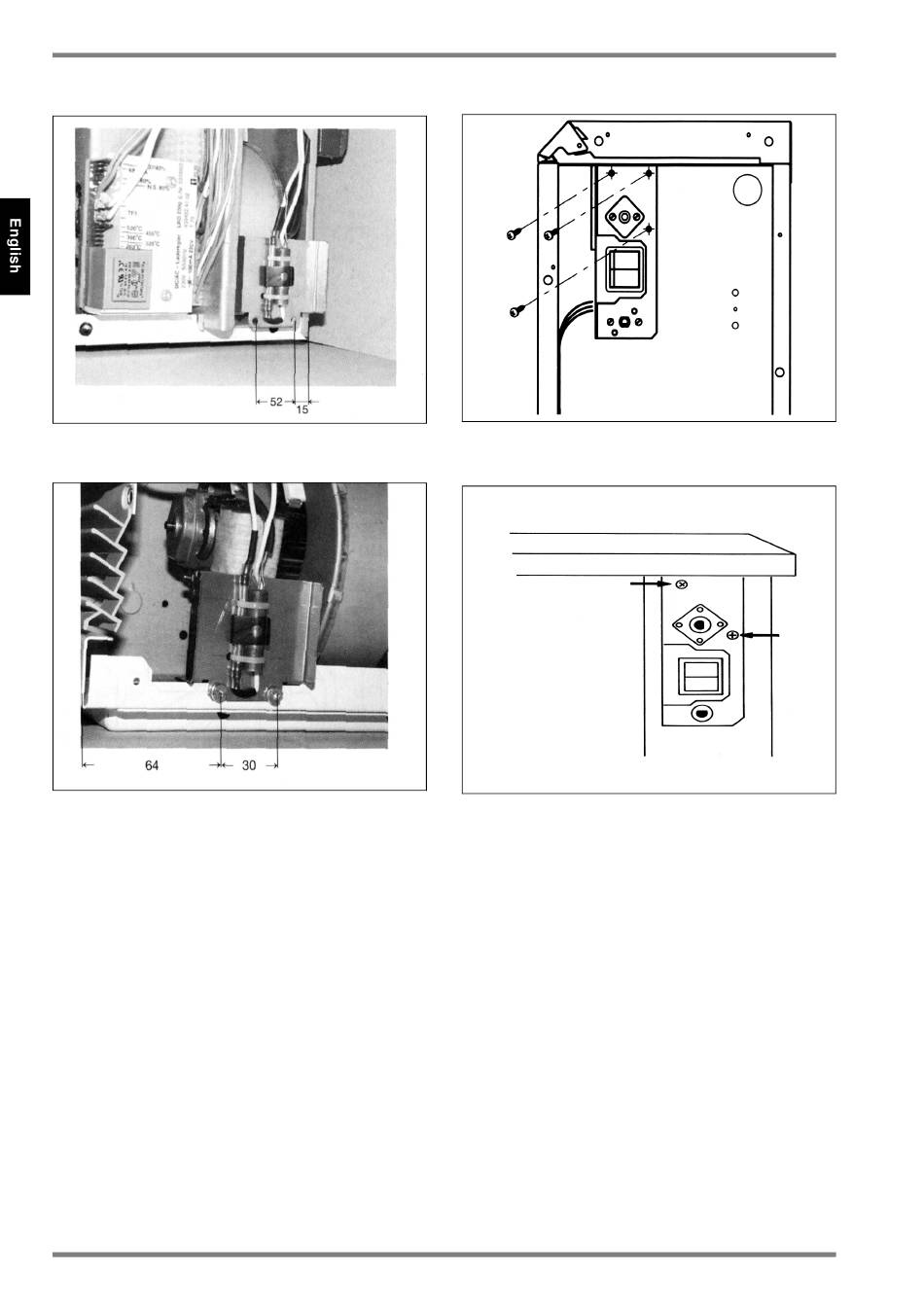

Fig. 3: Sensor position
Fig. 4: Sensor position
3.3
Installing the room temperature controller
Screw room temperature controller plate on to retaining
plate of charge controller. Figs. 5 and 6
Should assembly tolerances present a problem, wash-
ers (accessories pack) can be inserted under the room
temperature controller plate.
EN-10
Fig. 5: Retaining plate on compact storage heater
ESF ... K, ESFZ ... K
FSD ..., FZD ...
VNDi ..., VTDi ..., VFR
Fig. 6: Retaining plate on low/deep storage heater series
3.4
Attach two-pin terminal (A) of unit installation kit to stor-
age heater's connection strip.
Connect labelled connection cables of unit installation
kit to storage heater's lower terminal strip as shown in
circuit diagram. (Fig. 7 and Fig. 8)
Connect to the mains as shown in the wiring diagram
for the room temperature controller.
Note that the incoming external conductor L should be
connected to the 2-pin terminal L that you installed.
(Fig. 9 and Fig. 10)
459270.66.03 · 07/14/C
Electrical connection of room temperature
controller
