Tx-1, Tx-5 and Tx-10 transmitters
1
3
5
6
7
10
15
16
17
11
2
4
9
12 13 14 18
8

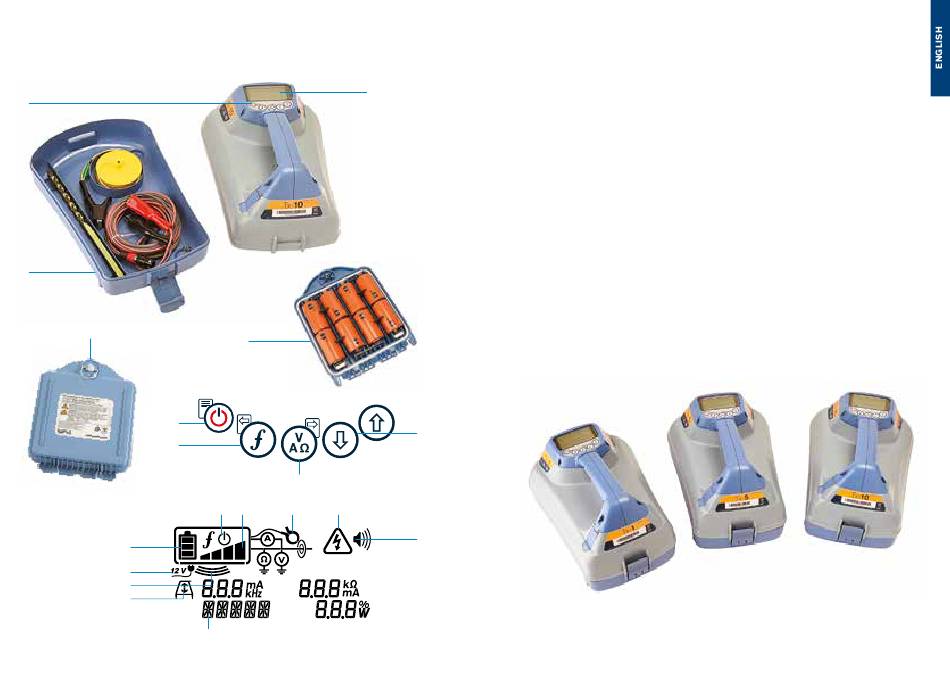

Transmitter features
1. Keypad.
2. LCD.
3. Removable accessory tray.
4. D-cell battery tray.
5. Optional Lithium-Ion battery pack.
Transmitter keypad
6. Power key.
7. Frequency key.
8. Up and down arrows.
9. Measure key.
8
19
Transmitter screen icons
10. Battery level indicator.
11. Operation mode readout.
12. Standby icon.
13. Output level indicator.
14. Clamp icon: Indicates when a signal
clamp or other accessory is connected.
15. DC Power connected indicator.
16. Induction mode indicator.
17. A-Frame: Indicates when the
transmitter is in Fault-Find Mode.
18. Voltage warning indicator: Indicates
that the transmitter is outputting
potentially hazardous voltage levels.
19. Volume level indicator.
