Diagnostics

LED status displays

8 Diagnostics
LED status displays
LED
Pos. Colour
A Yellow
B Green
62
Condition
Description
Off No communication with the INTERBUS master.
Blinking Communication to the INTERBUS master via the function module
is established.
On Internal error in the function module
Off
l
The function module is not supplied with voltage.
l
The standard device and/or the external voltage supply is/are
switched off.
Blinking The function module is supplied with voltage but not connected
to the standard device.
Causes:
l
The standard device is switched off.
l
The standard device is in the initialisation phase.
l
The standard device is not available.
On The function module is supplied with voltage and is connected to
the standard device.
l

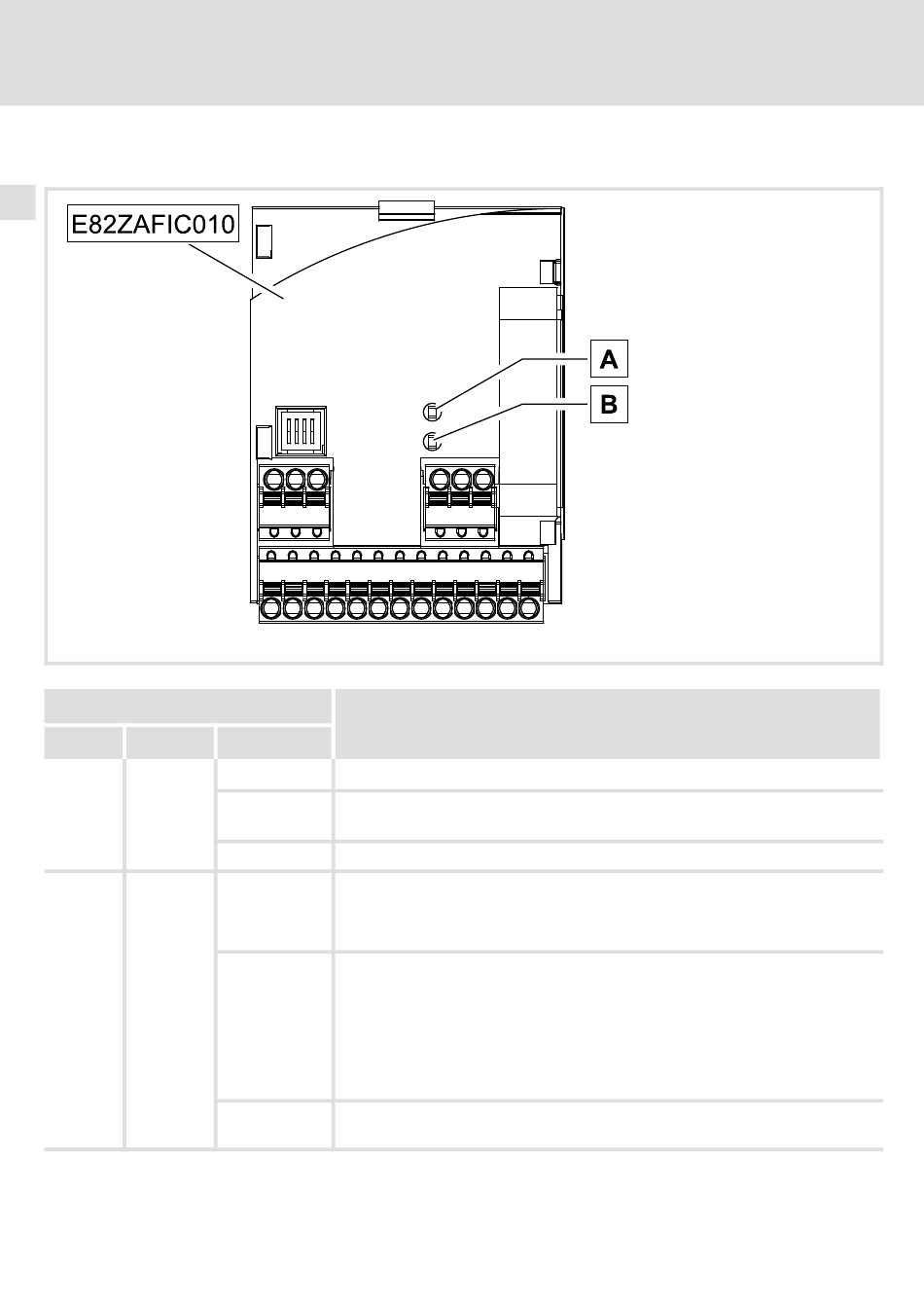

E82ZAFI014B
