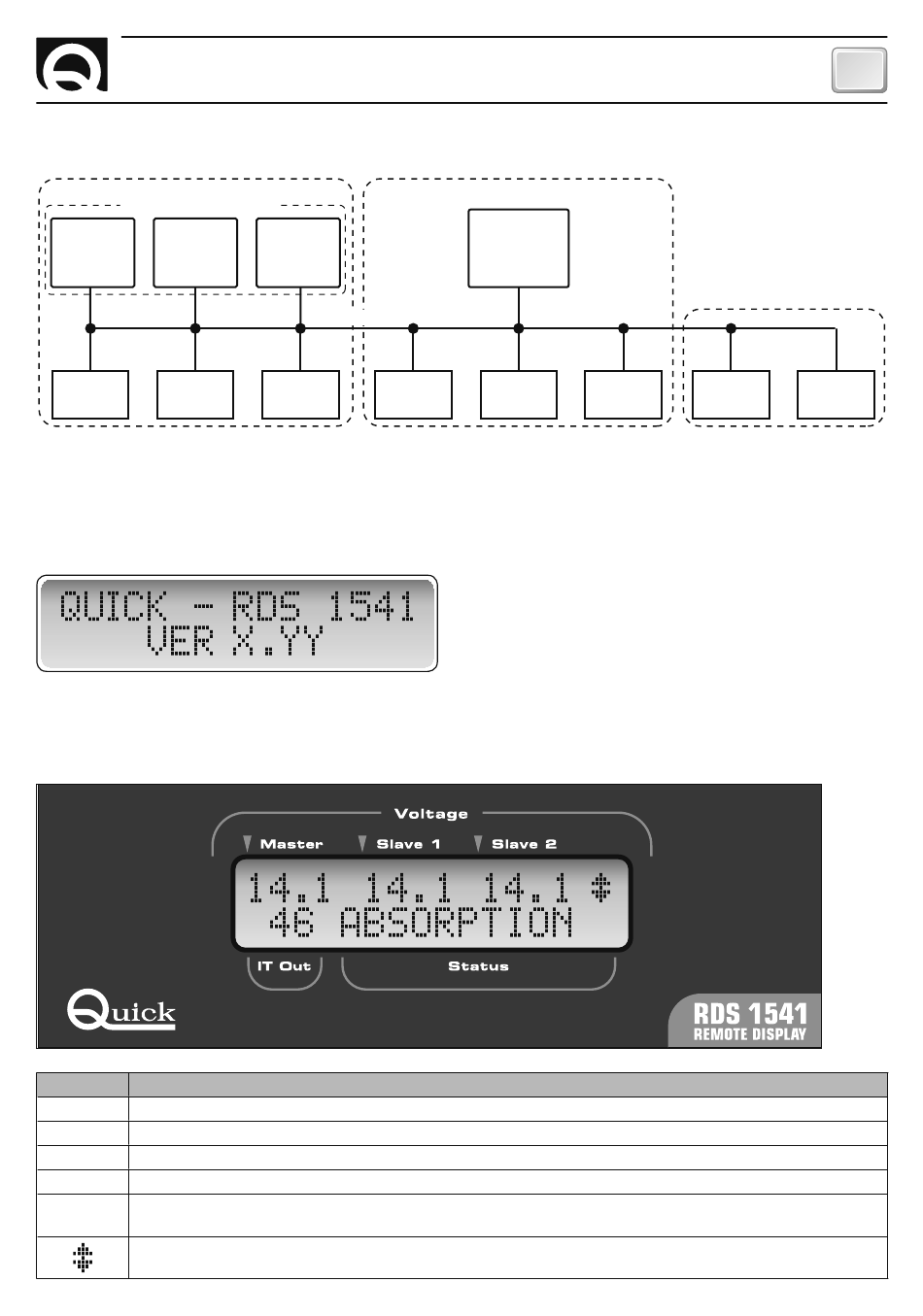

A possible CAN network is illustrated below:
GROUP
UNITS IN PARALLEL
SBC 1100 SBC 1100
NRG FR NRG FR
(PRIORITY 1) (PRIORITY 2)
RDS 1521 KTB4
For more information about battery charger configuration, consult the User's manual for the series SBC NRG battery
charger used.
INSTRUMENT OPERATION
Before attempting to turn on the instrument, make certain the dip-switch is set to the correct position. After hooking up
the instrument to the power supply, the display shows the following window for 2 seconds:
When X.YY is the current version of the software.
After 2 seconds the instrument displays the battery charge information.
Example with SBC 700 NRG FR:
FIELD DESCRIPTION
MASTER MASTER output voltage.
SLAVE 1 SLAVE 1 output voltage.
SLAVE 2 SLAVE 2 output voltage.
IT OUT Battery charger total output current.
Indication of system status
STATUS
(charging status, generic status, warning messages or problems with automatic reset).
This symbol indicates the presence of multiple messages in the Status field.
RDS 1541 - REV001A
OPERATION - NOTIFICATION SIGNS
A
SBC 1100
NRG FR
(PRIORITY 3)
CAN NETWORK
RDS 1560 RDS 1521
B
GROUP
SBC 750
NRG FR
KTB4 RDS 1560
GB
U
GROUP
TERMINAL
INTERFACE
GSM LCD
