INSTALLATION
GB

ELECTRIC CONNECTIONS

The instrument meets EMC standards (electromagnetic compatibility) however correct installation is fundamental in
order not to compromise its performance as well as operation of the instruments found nearby. For this reason, the
instrument's cables must be at least:
• 1 m away from cables that carry radio signals (except for SSB radio transmitters).
• 2 m away from cables that carry SSB radio transmitter radio signals.
Follow the rules given below when doing the electrical work for the instrument:
• Turn on power to the instrument only after making and checking that all the electric connections are correct.
• Put in a switch to turn on and shut off the instrument.
• Install a 160 mA fast blow fuse on the instrument's power supply line.
• Use the supplied cable or an unscreened cable with a braided pair (cross section 0.25/ 0.35 mm
ance 100/150 ohm) for data interface connection (CANH and CANL signals).
• The data cable cannot be more than 100 meters long.
A terminal block is found at the back of the instrument for connection of the various electric signals.
POSITION SIGNAL
1 +
2 -
3 CANH
4 CANL

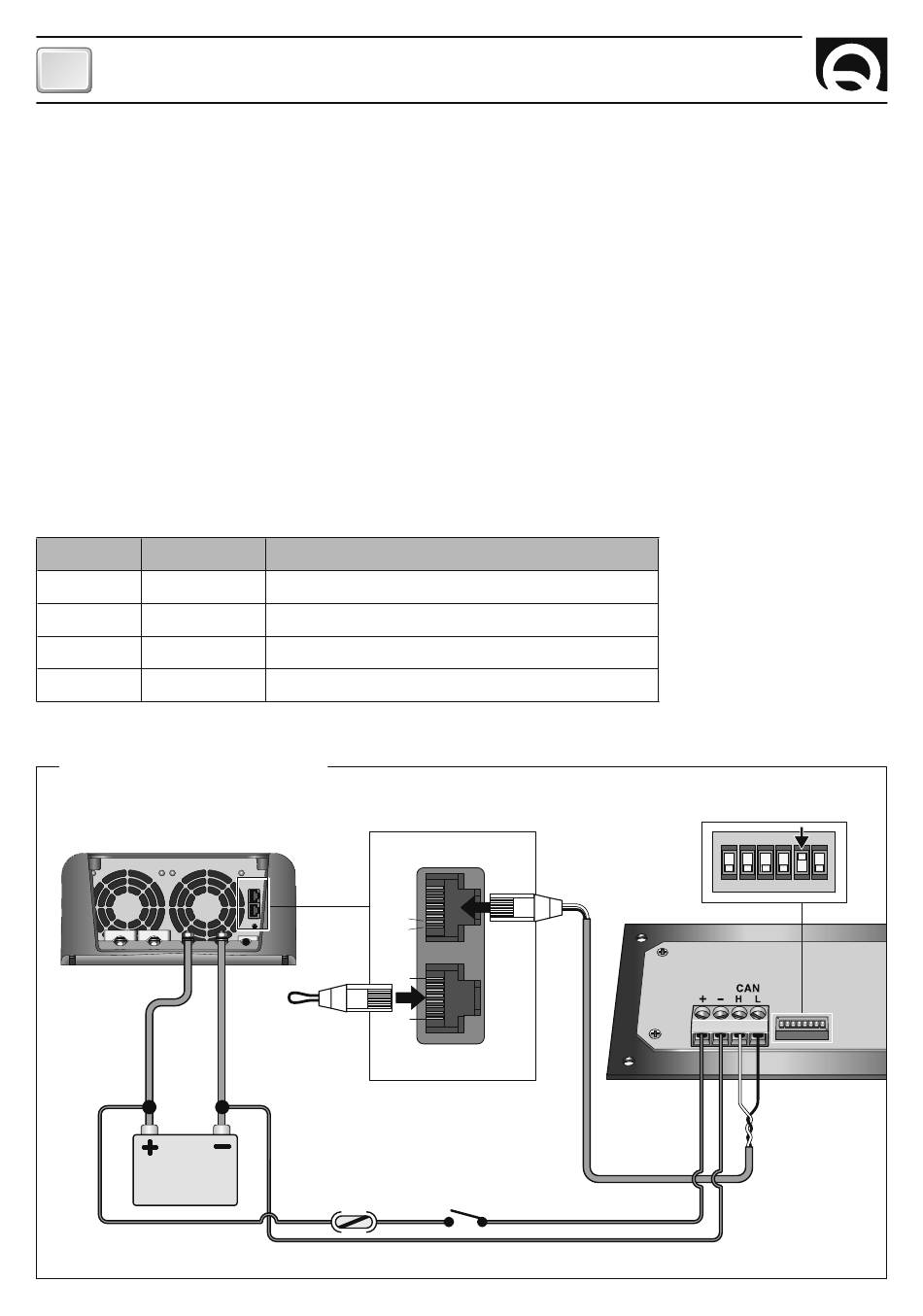

CONNECTION DIAGRAM FIG.1
SBC NRG
BATTERY
12V / 24V
14
DESCRIPTION
Instrument positive power supply
Instrument negative power supply
CAN interface
CAN interface
CAN IN
CAN IN
2
CAN OUT
1
8
8
1
1
TERMINATION
CONNECTOR
CAN OUT
FUSE
2
1
SWITCH
2 AWG 22/24, imped-
TERMINATION
ACTIVATED
ON
1 2 3 4 5 6
ON
1 2 3 4
1 2 3 4 5 6 7 8
RDS 1541
RDS 1541 - REV001A
