ON: Activates the display of icons.
OFF: Turns off the display of icons.

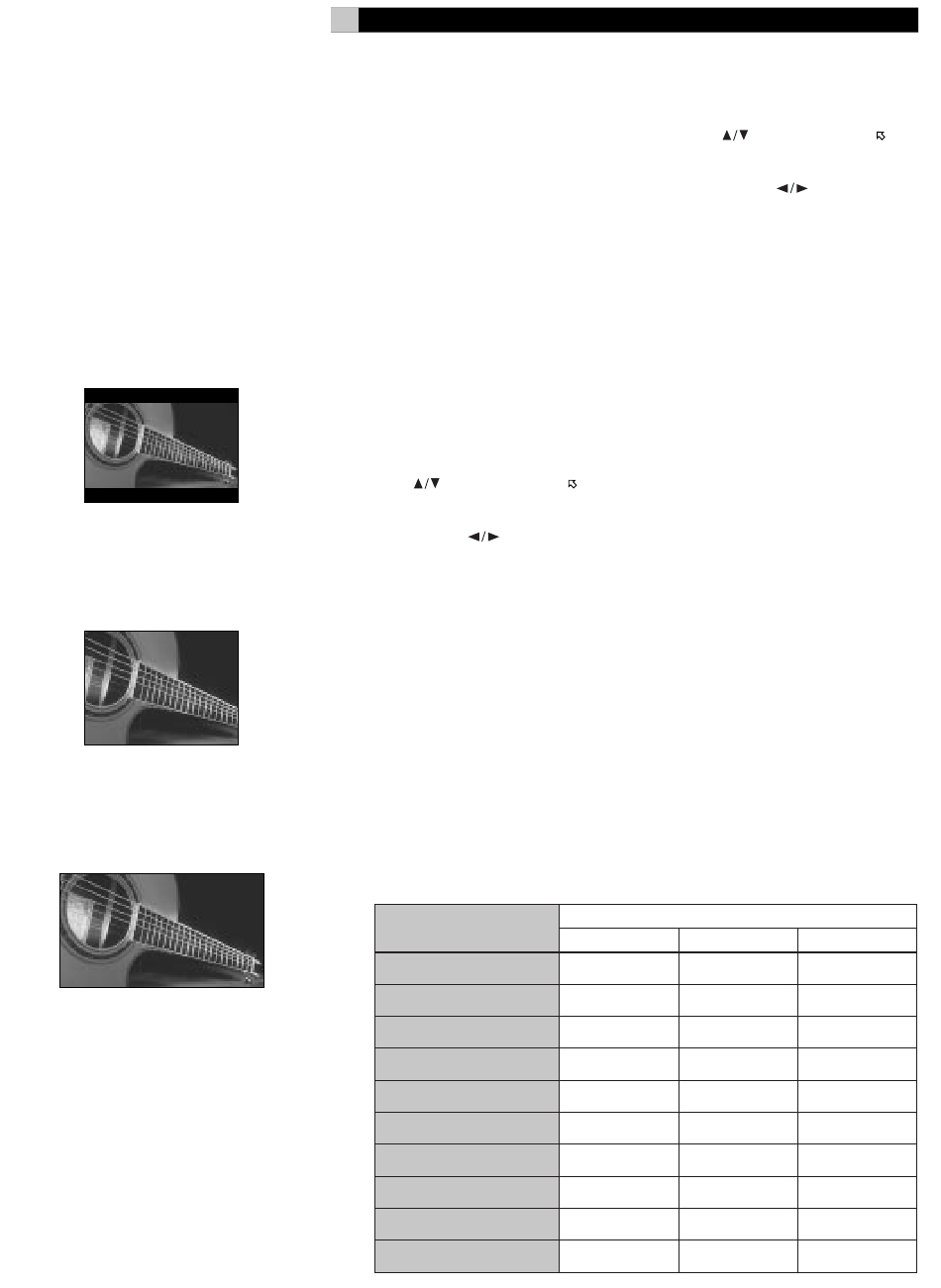

TV Monitor Type

There are two types of TVs: standard 4:3 aspect
ratio and new wide-screen16:9 aspect ratio
monitors. The RDV-1080 must know which type
of TV you are using. With the standard aspect
ratio TV, you also need to tell the RDV-1080
how to adjust wide-screen video images to fit.
Use this preference item to configure the video
output to match your TV:
4:3 LB (Letter Box)
Select this option for a standard TV and to dis-
play wide-screen video images full-width with
black letterbox masks, top and bottom.
4:3 PS (Pan Scan)
Select this option for a standard TV and to
display wide-screen video images with por-
tions of the image cut off the left and right sides.
16:9 AUTO (Wide Screen)
Select this option for a wide-screen TV that au-
tomatically senses and adjusts the aspect ra-
tio to match the incoming video signal. All
aspect-ratio matching is handled by the TV.
16:9 NORMAL (Wide Screen)
Select this option for a wide-screen TV that al-
ways displays a wide-screen image regard-
less of the aspect ratio of the incoming video
signal. The RDV-1080 automatically adjusts
the aspect ratio to match the wide-screen TV
and sends the proper video signal. If you play
25
a normal 4:3 aspect program in this mode,
the picture quality may change as the
RDV-1080 converts it to fill the screen.
4:3 MULTI LB
4:3 MULTI PS
16:9 MULTI AUTO
16:9 MULTI NORMAL
These four options provide the same functions
as those listed above, except that they are se-
lected for a TV monitor that accepts either an
NTSC or a PAL video signal. The RDV-1080
sends an NTSC or a PAL signal depending
on the format of the disc, regardless of the set-
ting of the back-panel NTSC/PAL switch. Most
consumer TVs do not have this feature.
To change TV MONITOR TYPE setting:
• On the PREFERENCE 1 screen, use the
CURSOR buttons to move the
the MONITOR TYPE item.
• Press the CURSOR buttons to choose
the desired setting.

PROGRESSIVE SCAN Mode

This setting optimizes the progressive (non-
interlaced) scanning when the Progressive Scan
feature is used. The setting is only in effect if
you are using an NTSC TV monitor with the
back-panel NTSC/PAL switch set to NTSC. It
has no effect unless your monitor accepts pro-
gressive scan video signals and you activate
the RDV-1080's Progressive Scan feature.
DISC-FORMAT
DVD with 48/44.1 kHz,
16-Bit linear PCM/MLP
DVD with 48/44.1 kHz,
20/24-Bit linear PCM/MLP
DVD with 96/88.2 kHz,
linear PCM/MLP
DVD with 192/179.4 kHz,
16/20/24-Bit linear PCM/MLP
DVD with DTS
DVD with Dolby Digital
DVD with
MPEG Multichannel
Video CD/SVCD
Audio CD
Audio CD with DTS
To change PROGRESSIVE SCAN setting:
• On the PREFERENCE 1 screen, use the
CURSOR
the PROGRESSIVE MODE item.
• Press the CURSOR
the desired setting.
AUTO: The DVD-1080 recognizes the pic-
ture type (film source or video source) based
on information embedded at the start of
the disc. This is the default setting and
generally does not need to be changed
unless you are experiencing a "noisy"
picture on certain discs.
Video 1: This option is optimized for static
still-frame images.
VIDEO 2: This option is optimized for dy-
namic full-motion images.
over
FILM: This option is optimized for film
source images.
SMART: The option may be best for discs
with both film source and video source
material. The RDV-1080 senses the source
for each scene and adjusts accordingly.

DIGITAL AUDIO OUTPUT Mode

Discs are encoded with a variety of digital
formats and sampling frequencies, from the
PCM bistream used for Audio CDs to formats
designed to handle multichannel surround
sound. The signal provided at the digital out-
puts must be suitable for the preamp or pro-
cessor that will decode it. For example, you
DIGITAL OUTPUT FORMAT
STREAM/PCM DOLBY DIGITAL/PCM
48/44.1 kHz 48/44.1 kHz
16-Bit Stereo linear PCM
16-Bit Stereo linear PCM
48/44.1 kHz 48/44.1 kHz
20-Bit Stereo linear PCM 20-Bit Stereo linear PCM
No output
No output
No output No output
48 kHz,
DTS Bitstream
16-Bit linear PCM
Dolby Digital Bitstream Dolby Digital Bitstream
MPEG Bitstream 48 kHz,
16-Bit linear PCM
44.1 kHz,
44.1 kHz,
16-Bit linear PCM
16-Bit linear PCM
44.1 kHz, 44.1 kHz,
16-Bit linear PCM 16-Bit linear PCM
44.1 kHz,
DTS Bitstream
16-Bit linear PCM
English
buttons to move the over
buttons to choose
PCM ONLY
48/44.1 kHz
16-Bit Stereo linear PCM
48/44.1 kHz
20-Bit Stereo linear PCM
No output
No output
48 kHz,
16-Bit linear PCM
48 kHz,
16-Bit linear PCM
48 kHz,
16-Bit linear PCM
44.1 kHz,
16-Bit linear PCM
44.1 kHz,
16-Bit linear PCM
44.1 kHz,
16-Bit linear PCM
