8.5 Final mounting

NOTICE Danger of short-circuits and damage
to the unit. Humidity will penetrate if electron-
ics cover is not fitted correctly.
Press electronics cover firmly onto housing such
that it is sealed and flush all the way around.
When doing so, do not press setting buttons.

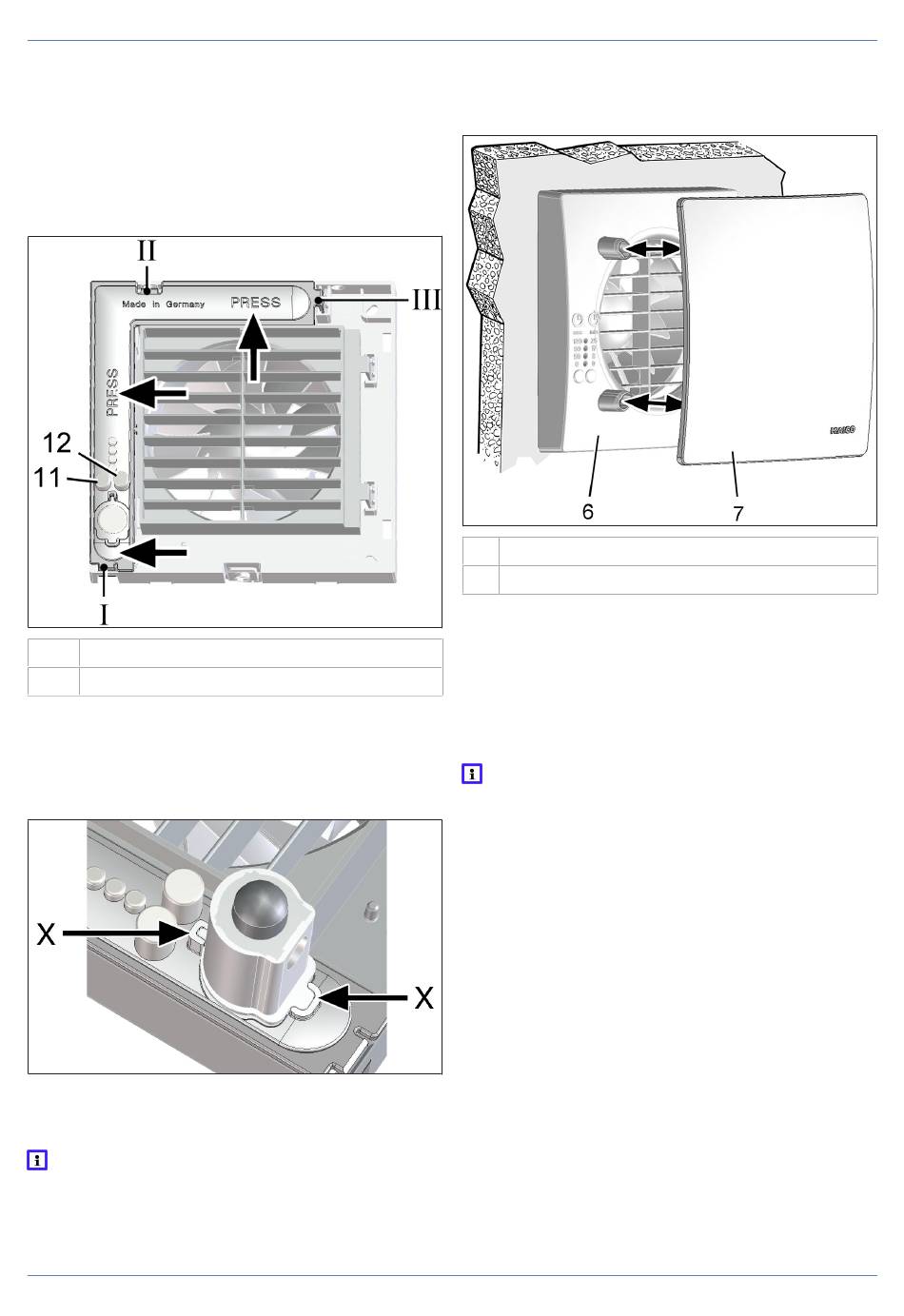

11 Setting button for start delay
12 Setting button for overrun time
1. Push the electronic cover on the housing cut-
outs I, II and III onto the 3 locking tabs, until
the tabs engage. In addition, press the elec-
tronics cover firmly on to the housing at the
points indicated by the word "PRESS".
2. For device versions F, KF, H, KH, B and KB,
insert the supplied sensor in the correct posi-
tion (→ arrows X), into the connector socket.
H and KH: Do not touch/push on the mem-
brane on the flat side of the sensor wall, other-
wise it will be damaged.
3. Attach housing cover.
8 Installation and commissioning
4. Use the setting keys to set the start delay and/
or overrun time → Start delay and overrun
time [} 25].
6 Cover
7 Designer cover
5. Fit designer cover.

8.6 Commissioning

1. Switch the mains fuse on.
2. Run function test.

8.7 Start delay and overrun time

The first time the setting button is pressed,
the currently set value is displayed. During op-
eration the LEDs are off.
For delivery status → Product information [} 19].
