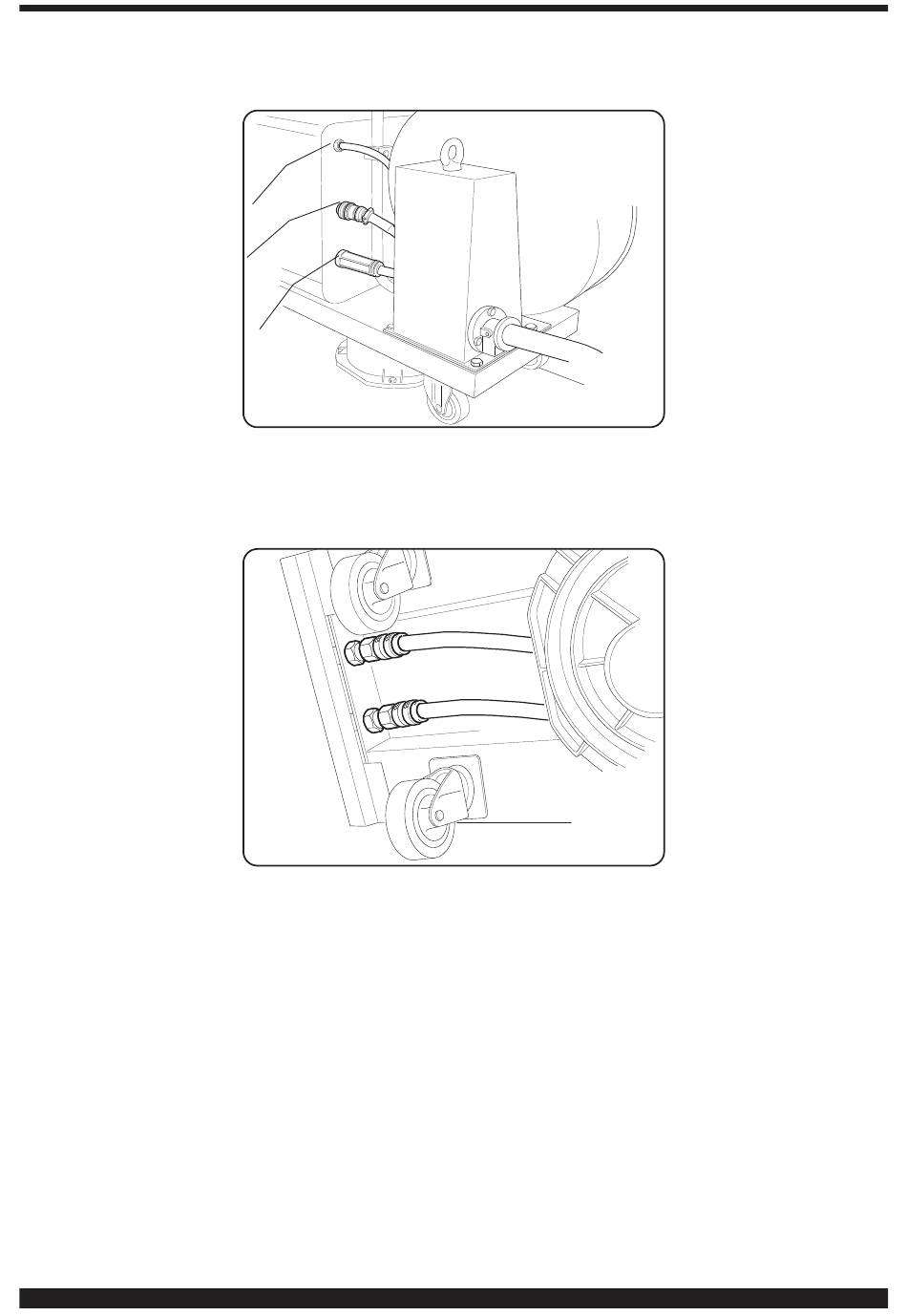

Avoid coiling the connection to minimise inductive effects that could affect welding. Connect the other end of
connection BA to the wire feeder (see fig. 5).
♦
The coolant fluid hoses must be connected to the quick-fitting valves located below the base of the wire feeder
(see fig. 6), by observing the colour coding on the trolley front side.
Note on gas connection
Carefully read the sections "Explosions", "Hazardous gases and vapours" and "Gas cylinders" in General Warnings
code 3301151.
11
20
19
Fig. 5
Fig. 6
