3 Service

3.1 Installing the ceiling hoist to the rail system

Robin™requires a trolley, guiding the ceiling hoist in the rail system.
Robin Mover™has the trolley built-in and can be installed directly
to the rail system.

3.1.1 Installing Robin

Tools: 4 mm Allen key; 17 mm socket wrench
1586747-A
1.

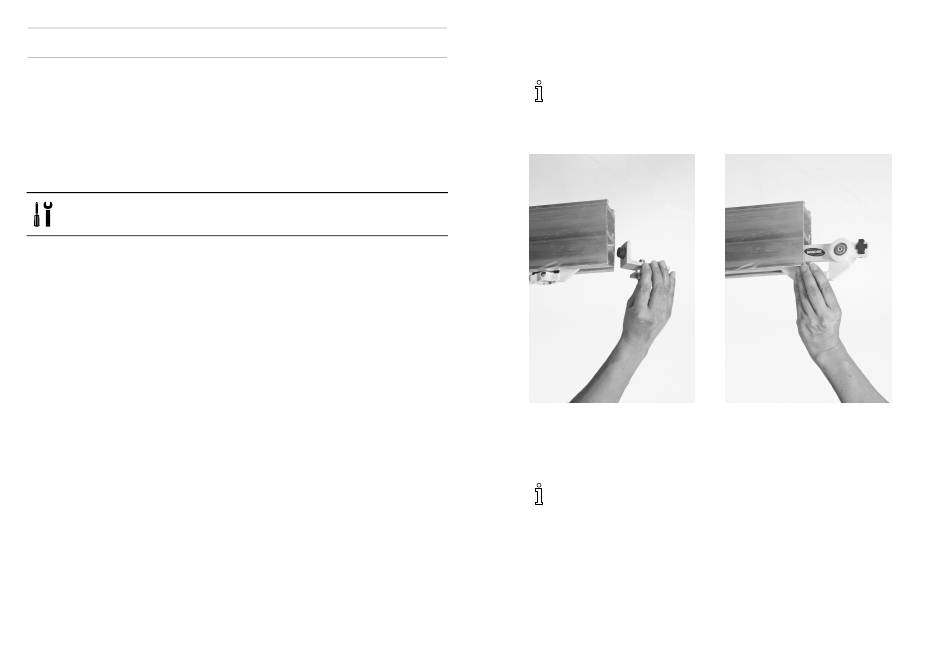

To install the trolley, remove the end stop that is attached to
the rail system.
In some countries/ local areas, there is a demand for
double securing of the end stops. If an extra securing
screw is installed, remove this screw before.
2.
Insert the trolley into the rail (no matter which way, as the
trolley is symmetric).
3.
Re-insert the end stop.
In some countries/ local areas, there is a demand for
double securing of the end stops. If an extra securing
screw is required, install this screw. See also End Stop.
Service
7
