3 Setup

3.1 Receiving the bed

When you receive the bed, check the packaging. If the bed shows any
signs of damage upon delivery, please follow terms of delivery

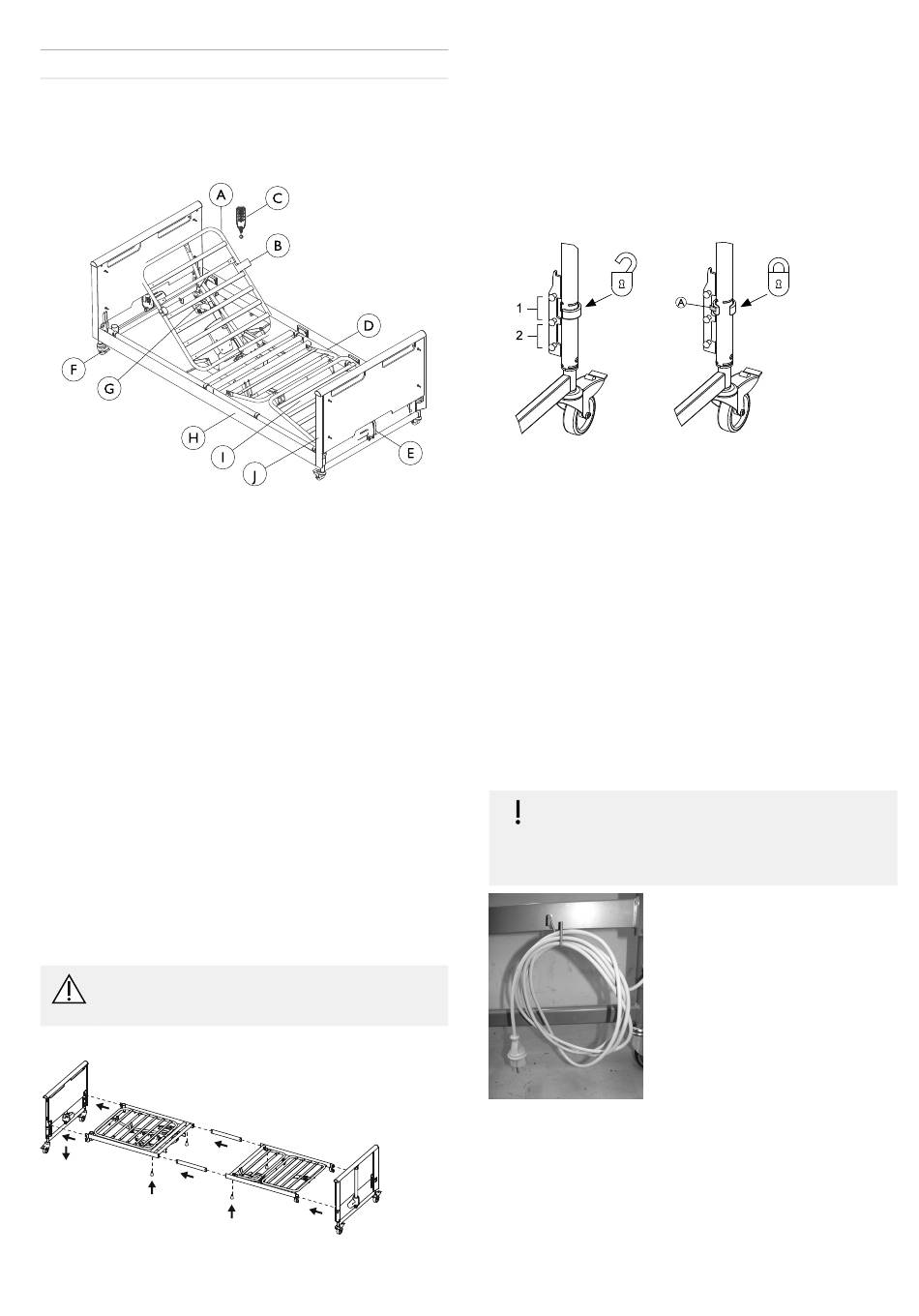

Scope of delivery:
A Backrest (mattress support, upper half)
B Mattress retainers
C Hand control
D
Thigh/Leg section (mattress support, lower half)
E Motor, bed end
F Castors
G Motor, backrest
H Wooden side panel
I Motor, thigh section
J
Bed end
Optional
•
Support handle
•
Swivel support
•
Side rail
•
Lifting pole
•
Mattress support extension
•
Back-up battery

3.2 Assembly of the bed

WARNING!
– After each assembly, check that all fittings are tightened
correctly and that the function of all parts is given.
Mattress support
1579562-A
1. Place the two inserts in the upper half of the mattress support.
The inserts must be mounted in such a way that one extends
further out of the side tube than the other.
2. Loosely screw in the two thumb screws.
3. Push the lower half of the mattress support onto the two inserts.
4. Tighten with two thumb screws.
5. Retighten the two thumb screws at the head end of the top frame.
6. Turn up the four mattress support brackets.
7. Turn the handle of the leg section up.
Press the bracket A on the locking ring* and turn the locking
8.
ring on the bed ends to the position "open".
1
2
9. Latch the mattress support to the bed ends and press firmly
into position.
10. Make sure that the bed ends are in the same level. It is possible
to level the bed in high position (1) and low position (2).
11. Turn the locking ring to the position "lock".
* The locking rings ensure that the mattress support is not accidentally
lift clear off the bed ends.
Control Box
The control box is latched to the backrest motor. The control box
is provided with a label with symbols showing where to connect the
motor plugs:
•
Backrest motor
•
Thigh section's motor
•
Bed end motor
•
Hand control

3.3 Wiring

IMPORTANT!
– The cables must be mounted in such a way that they
are kept clear off the floor and do not block the
castors. Mount the mains cable on the hook for this
purpose, see image.
In order to prevent the cables from being damaged when activating
the motors, follow the instructions below.
A
