Installing and connecting the unit
1.
Insert the power cable through the packing gland located on the cover of the bottom window. Screw the
packing gland to the cover.
2.

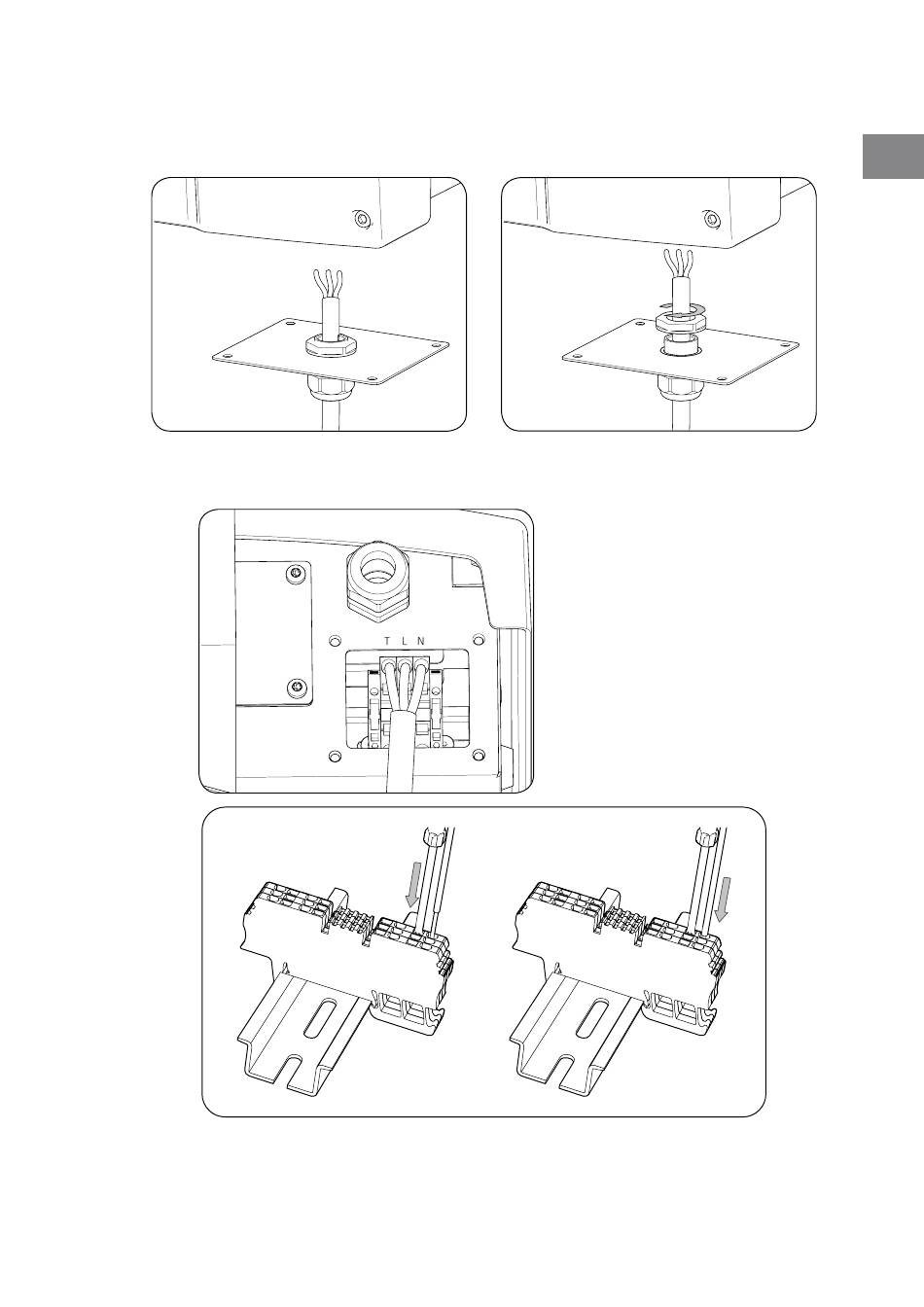

Connect the power cables to the terminal block as shown in the following figure. The terminal blocks are
clamp type. Insert a flat-head screwdriver to free it and insert the cable in the indicated hole. Tighten it
using the screwdriver.
ABA2023IQM01_ - 7.55.4.494.0
ABA2023IQM01_ - 7.55.4.412.2 - Installation and Operation Manual
T: Ground
L: Live
N: Neutral
