3.1 R-net Joystick Modules
The R-net control system has two versions of Joystick Module
with LCD Screen, (Fig 3.3), & with LED buttons, (Fig 3.5).
Most of the controls are common to both, however there are
variations between the two. Each of the controls is explained
within this section.
3.2 Joystick Module LCD Screen (Fig 3.3)
On/off button
The on/off button applies power to the control system
electronics, which in turn supply power to the wheelchair's
motors. Do not use the on/off button to stop the wheelchair
unless there is an emergency. (If you do you may shorten the
life of the wheelchair drive components)
Horn Button
The Horn will sound while this button is depressed.
Speed Decrease Button
This button decreases the maximum speed setting.
Speed Increase Button
This button increases the maximum speed setting.
Mode Button
The Mode button allows the user to navigate through the
available operating Modes for the control system. The available
modes are dependent on programming and the range of
auxiliary output devices connected to the control system.
Profile Button
The Profile button allows the user to navigate through the
available Profiles for the control system. The number of
available Profiles is dependent on how the control system is
programmed.
Hazard Warning Button and LED
This button activates and de-activates the wheelchair's hazard
lights. Depress the button to turn the hazards on and depress
the button again to turn them off.
When activated the hazard LED and the indicator LEDs will
flash in sync with the wheelchair's indicators.
Lights Button and LED
This button activates and de-activates the wheelchair's lights.
Depress the button to turn the lights on and depress the button
again to turn them off.
When activated the lights LED will illuminate.
Left Indicator Button and LED
This button activates and de-activates the wheelchair's left
indicator. Depress the button to turn the indicator on and
depress the button again to turn it off.
When activated the left indicator LED will flash in sync with the
wheelchair's indicator(s).
8
Right Indicator Button and LED
This button activates and de-activates the wheelchair's right
indicator. Depress the button to turn the indicator on and
depress the button again to turn it off.
When activated the right indicator LED will flash in sync with
the wheelchair's indicator(s).
External On/Off Switch Jack
This allows the user to turn the control system on and off using
an external device, such as a buddy button.
External Profile Switch Jack (Fig 3.2 & 3.4)
This is a stereo jack socket that allows the connection, via
a suitable adaptor, of two external switches or buttons.
The function of these switches or buttons is assignable via
programming.
Please contact your servicing agent.

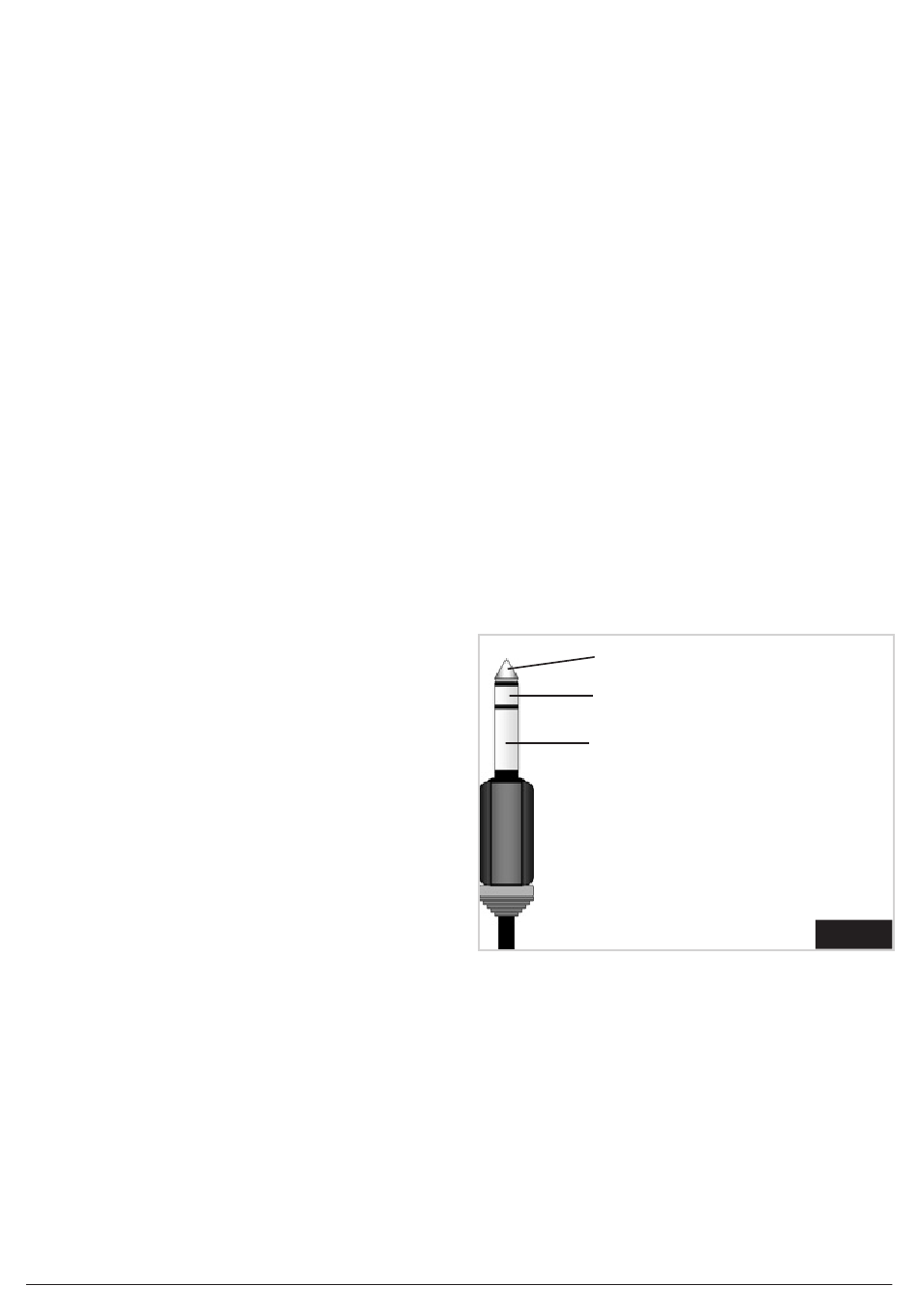

The connection details for the mating stereo plug are shown
below.
If the control system is set to latched drive or actuator
operation, then the polarity of External Profile Jack 1 will be
inverted to effect a fail-safe connection for an emergency stop
button.
The Joystick Module is supplied with rubber bungs that must
be inserted into the Jack Sockets when no external device is
connected.
For full details of LCD Screen functions please refer to Chapter
4.0
External Profile Jack 1
External Profile Jack 2
Common
R-Net Control System | Rev. H | English
Fig.3.2
